| Number of Gangs | 8 |
| Temperature Rating | 302 degrees F (150 degrees C) max, -40 degrees F (-40 degrees C) min |
| Heavy Duty Supplier | Yes |
| Dimensions | L 4.25 x W 1.37" x H 0.75" |
| Center Spacing | 7/16 " |
| Wire Gauge | 12 AWG Maximum |
| Distance Between Barriers | 0.353" |
| Mounting | #6 Screws |
| Amperage Rating | 20 A |
| Voltage | 12 |
| Mounting Hole Center | 3.93" |
| Terminal Quantity | 16 |
| Terminal Screw Size | #6-32 philslot combination |

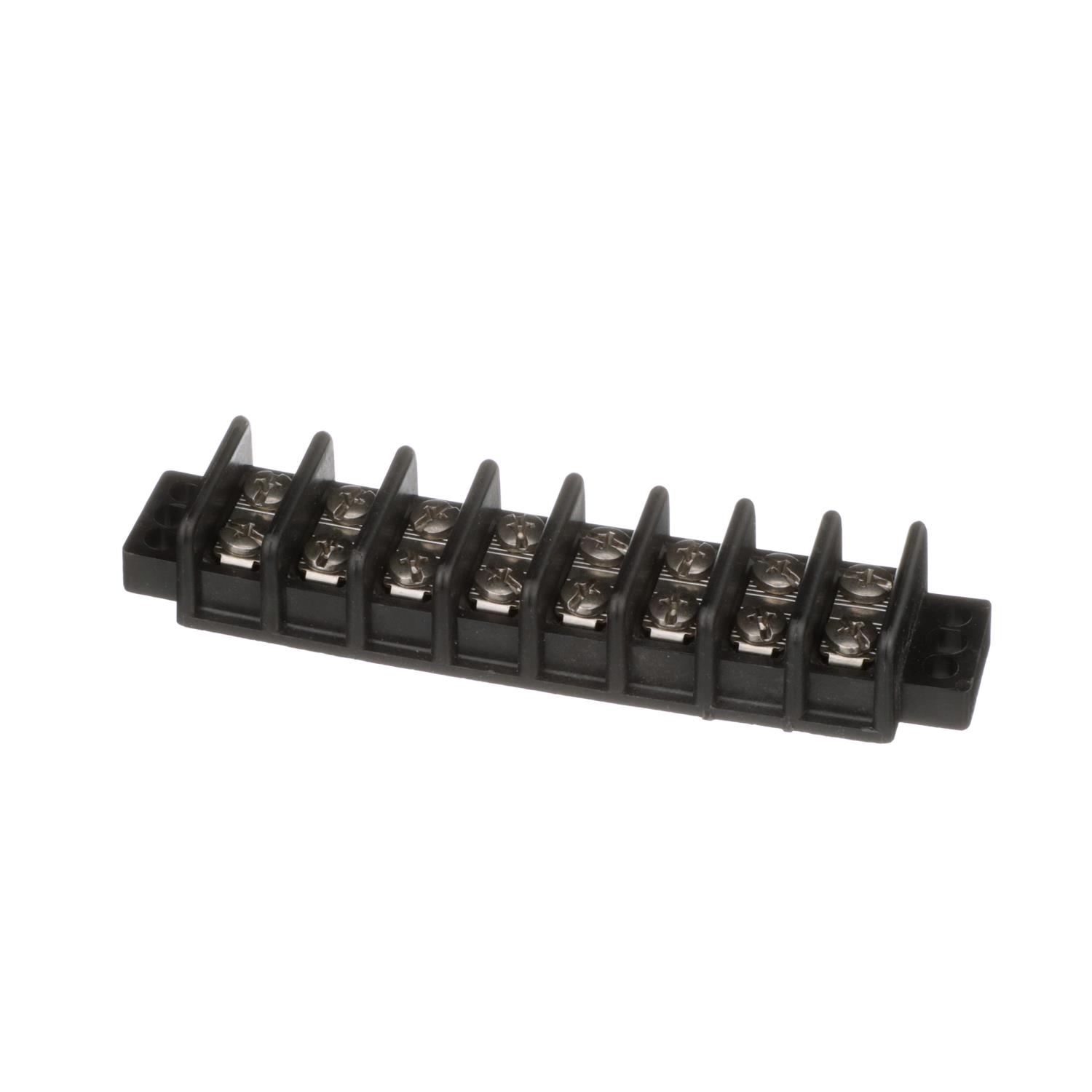

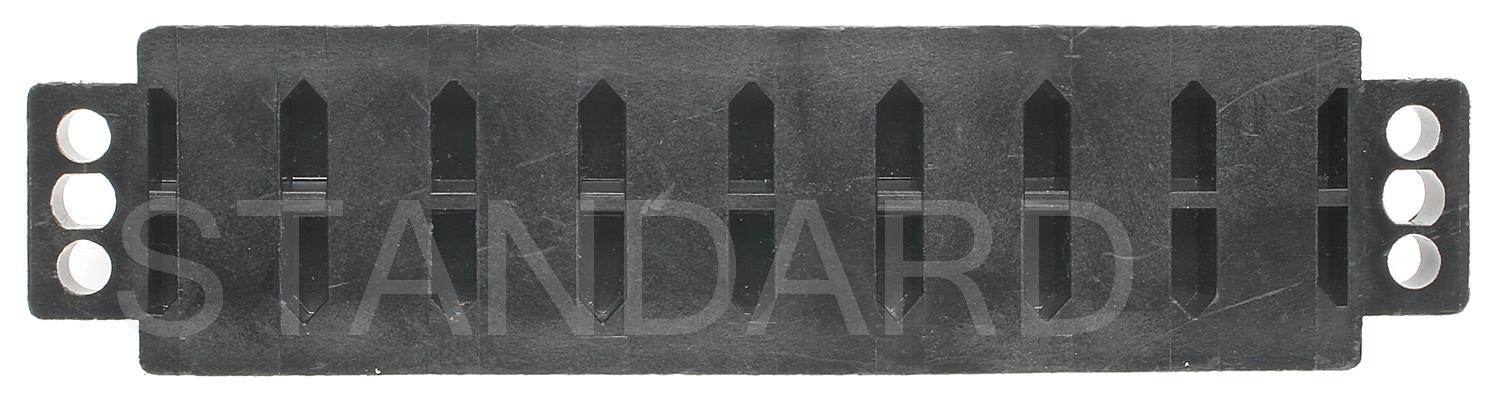

| Part Terminology | Junction Block |
