Product Details
expand_less
| Snap Ring Included |
Y |
| Bearing Cap Diameter (1) |
1.375 |
| Hardware Included |
N |
| Snap Ring (1) |
3 |
| SR(1)Brng Cap to Brng Cap(OSR) |
3 |
| Grease Type |
N.L.G.I. Grade 2 |
| Heavy Duty Supplier |
Yes |
| Bearing Cap Diameter A (mm) |
34.925 |
| Grease Fitting Location |
Side of Cross |
| Length B (mm) |
76.2 |
| Length B (In) |
3 |
| Snap Ring Type |
Internal |
| Seal Material |
Rubber |
| SR(2)Brng Cap to Brng Cap(OSR) |
3 |
| Pre Greased |
N |
| Seal Color/Finish |
Black |
| Bearing Cap Diameter (2) |
1.375 |
| Snap Ring (2) |
3 |
| Bearing Cap Diameter B (mm) |
34.925 |
| Coating Type |
None |
| OEM Series |
SPL55/1480WJ |
| Bearing Cap Type |
Round with ISR Groove |
| Length A (In) |
3 |
| Bearing Cap Type B |
ISR |
| Grease Zerk Included |
Y |
| Length A (mm) |
76.2 |
| Mounting Hardware Included |
No |
| Material |
Steel |
| Model Number |
SPICER 1480 WJ (SPL55) |
| Bearing Cap Type A |
ISR |
| OEM Mfg |
Spicer |
| Type |
ISR Style |
| Greaseable |
Y |
| Prop 65 |
YES |
| California Proposition 65 |
WARNING: Cancer — www.p65warnings.ca.gov |
| Distance Btw Snap Ring Grooves (ISR) (2) |
3.000 |
| Bearing Cap Finish |
Ground |
| Distance Btw Snap Ring Grooves |
3.000 |
| Part Terminology |

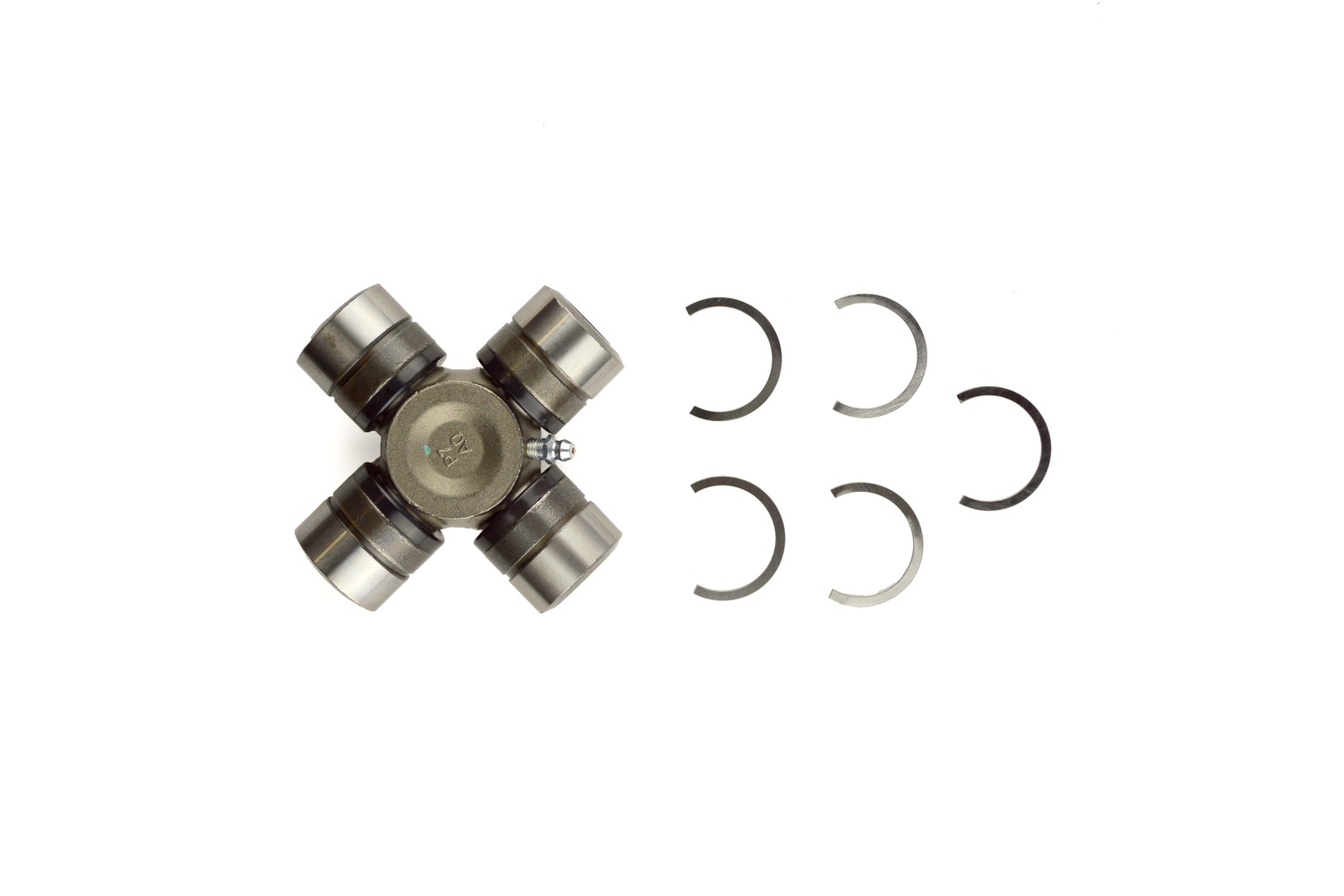

Drive Axle Shaft Universal Joint |
Features & Benefits
expand_more
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Application Summary
expand_more
Chevrolet - 1977-86 K30 , 1987-88 V30 , 1989-91 V3500 , International - 1966 1300A , 1967 1300B , 1968 1300C , 1969-70 1300D , Dodge - 1994-02 Ram 2500 , 1994-02 Ram 3500 , 1975-80 W200 , 1981 W250 , 1986-93 W250 , 1975-80 W300 , 1973-74 W300 Pickup , 1981-93 W350 , Ford - 2000-05 Excursion , 1978-79 F-250 , 1999-19 F-250 Super Duty , 1979 F-350 , 1985-97 F-350 , 1999-19 F-350 Super Duty , 1999-04 F-450 Super Duty , 1999-04 F-550 Super Duty , 1999-19 F-350 Super Duty , GMC - 1977-78 K35 , 1979-86 K3500 , 1988-89 K3500 , 1987-91 V3500 , Ford - 2000-05 Excursion , 1978-79 F-250 , 1999-19 F-250 Super Duty , 1979 F-350 , 1985-97 F-350 , 1999-19 F-350 Super Duty , 1999-04 F-450 Super Duty , 1999-04 F-550 Super Duty , 1999-19 F-350 Super Duty
