Product Details
expand_less
| C/L To End Hub S |
5.219 |
| Heavy Duty Supplier |
Yes |
| Outside Yoke Dimension (In) E |
4.958 |
| Yoke Bearing Dimension (In) D |
1.625 |
| Includes Slinger/Plug |
Y |
| Spline Count |
10 |
| Material |
Steel |
| Yoke Style |
HR |
| Duty Type |
Heavy Duty |
| Involute Spline |
N |
| Length Thru Hole Q |
3.000 |
| Series |
SPL90 |
| Type |
Splined Hole |
| Prop 65 |
NO |
| Hub Diameter R |
3.500 |
| Major Diameter |
2.250 |
| Assembly |
Y |
| Part Terminology |

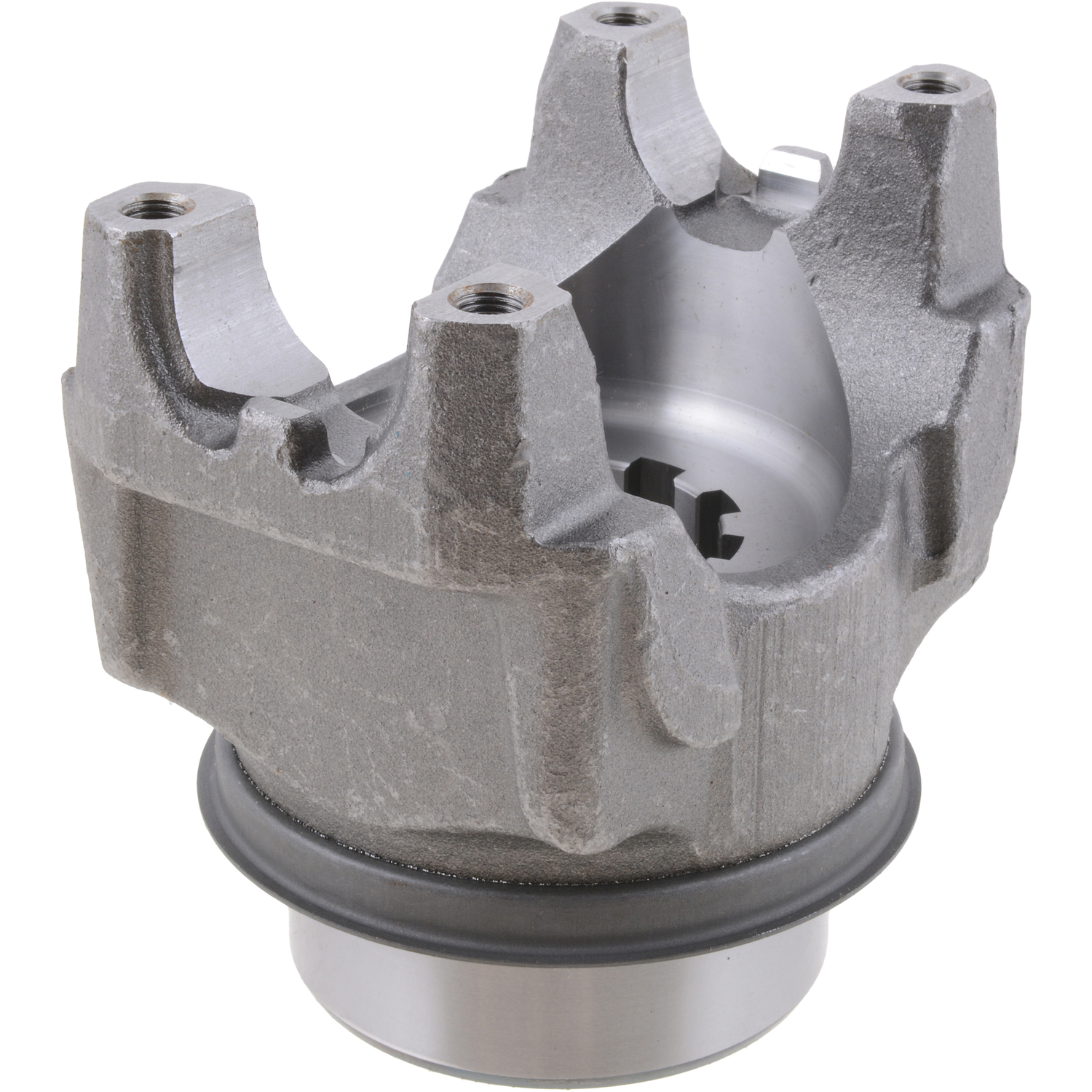

Drive Shaft End Yoke |
Features & Benefits
expand_more
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Application Summary
expand_more
FULLER - 0000 10 SP. 112 , 0000 10 SP. 65 , 0000 10 SP. 650 , 0000 10-A-1120 , 0000 10-B-1120 , 0000 10-C-1120 , 0000 10-F-1120 , 0000 10-FA-65 , 0000 10-FA-650 , 0000 10-FB-65 , 0000 10-FB-650 , 0000 10-SPEED-1 , 0000 10-SPEED-6 , 0000 15 SP. 112 , 0000 15-G-1120 , 0000 15-H-1120 , 0000 15-SPEED-1 , 0000 2 SP. 92 , 0000 2 SPEED 92 , 0000 2-A-92 , 0000 2-B-92 , 0000 3 SP. 65 , 0000 3 SP. 92 , 0000 3 SPEED 92 , 0000 4 SP. 75 , 0000 4 SPEED 75 , 0000 4-A-112 , 0000 4-A-86 , 0000 4-A-860 , 0000 5 SP. 1120 , 0000 5 SP. 1220 , 0000 5-A-1120 , 0000 5-F-1220 , 0000 5-G-1220 , 0000 FS-8109A , 0000 MT-11605 , 0000 MT-905 , 0000 R-1150 , 0000 R-1160 , 0000 R-510 , 0000 R-610 , 0000 R-960 , 0000 R-96T , 0000 RA-960 , 0000 RA-96T , 0000 RT-510 , 0000 RT-610 , 0000 RT-6609 , 0000 RT-6610 , 0000 RT-8609 , 0000 RTO-6610 , 0000 T-11605 , 0000 T-904 , 0000 T-905 , 0000 TO-905 , SPICER/EATON - 0000 PS105-7 , 0000 PS125-7 , 0000 PS97-7
