| Bolt Hole Diameter (In.) | .500 - DRILLED |
| Heavy Duty Supplier | Yes |
| Bolt Circle Diameter (B) In. | 4.750 |
| Actual Hole Diameter (Min) | 2.000 |
| Pilot Diameter (C) In. | 3.750 - FEMALE |
| Material | Steel |
| Key Width (K) In. | 0.500 |
| Hub Diameter (E) In. | 3.75 |
| Series | 1480 |
| Flange Type | Circular |
| Actual Hole Diameter (Max) | 2.001 |
| Prop 65 | NO |
| Circ Flnge Face To End Of Hub | 2.500 |
| Bore Diameter (D) In. | 2.000 |
| Number Of Holes | 4 |
| Set Screw Hole Diameter In. | 0.500 |
| Flange Width Diameter (A) In. | 5.88 |

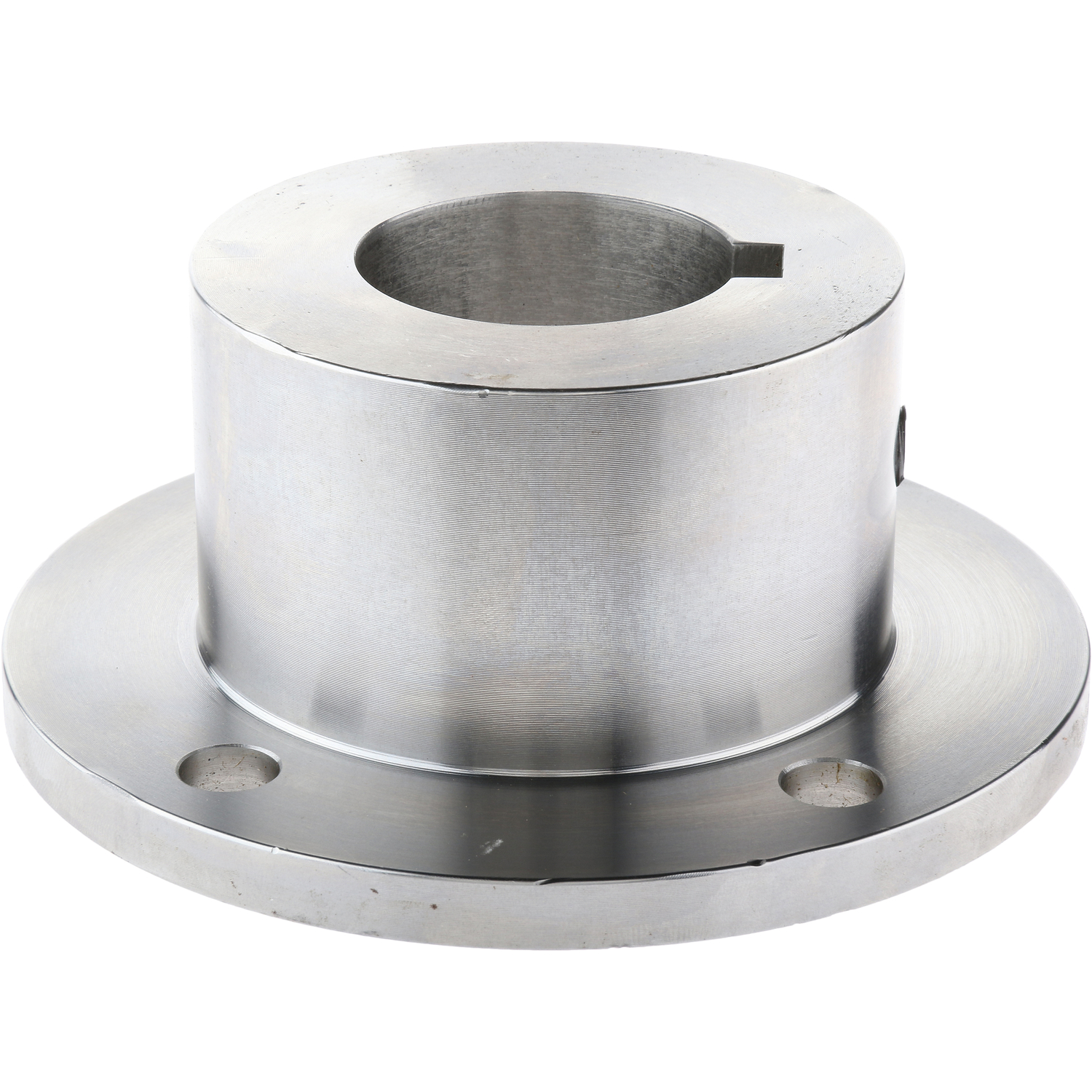

| Part Terminology | Drive Shaft Companion Flange |
