| Heavy Duty Supplier | Yes |
| Inlet Header Length | 713 |
| Transmission Oil Cooler Included | Yes |
| Inlet Location | Top Left |
| Engine Oil Cooler Included | No |
| Installation Kit / Hardware Kit / Package Contents | (ACPK032) 1 x Instruction Sheet 2 x GM 3/8" Quick Connect Oil Cooler Adapter X 5/8"-18 UNF Male |
| Core Width | 686 |
| Transmission Oil Cooler Type | Concentric |
| Core Material | Aluminum |
| California_Prop 65 Message | Y |
| Inlet Diameter | 29 |
| Inlet Header Width | 48 |
| Down Flow Or Cross Flow Type | Down Flow |
| Core Row Quantity | 1 |
| Tank Material | Plastic |
| Outlet Header Width | 48 |
| Transmission Oil Cooler Fitting Type | Hose Barb 8mm |
| Outlet Diameter | 29 |
| Outlet Header Length | 713 |
| Internal Transmission Oil Cooler | Yes |
| Mounting Type | Post |
| Core Height | 359 |
| Core Thickness | 16 |
| Transmission Oil Cooler Distance between Fittings | 26 |
| Internal Engine Oil Cooler | No |
| Outlet Location | Bottom right |
| Frame Included | No |

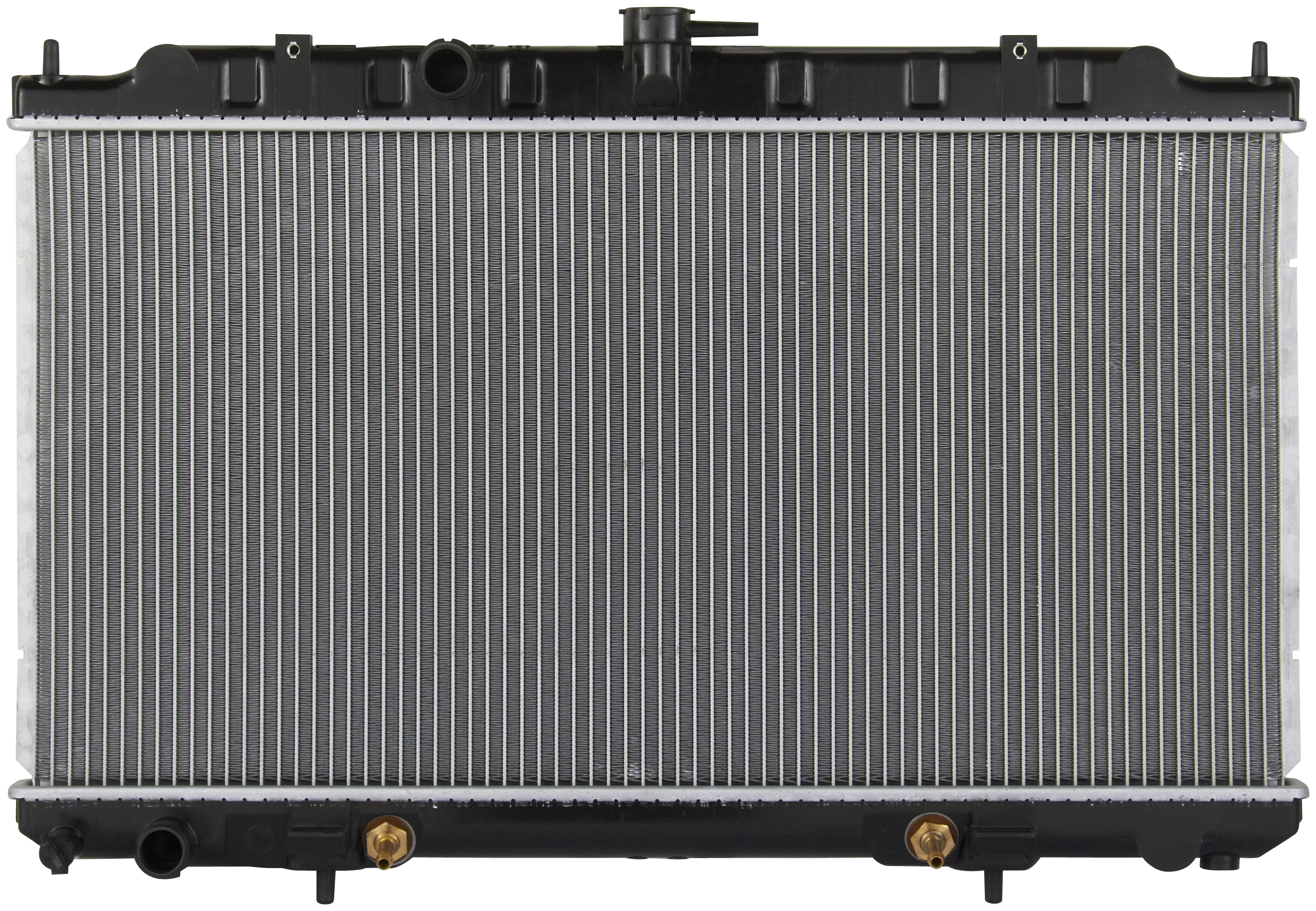

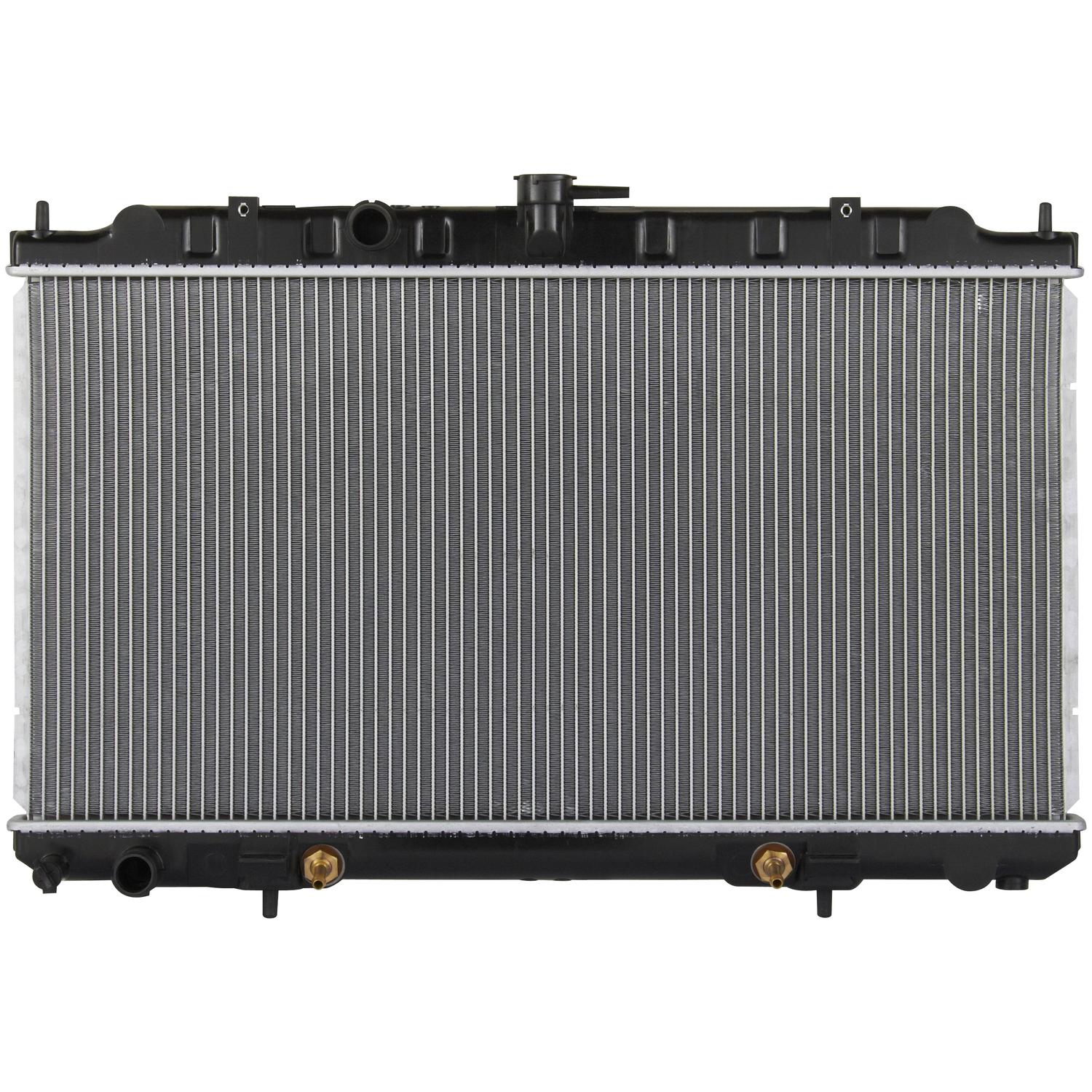

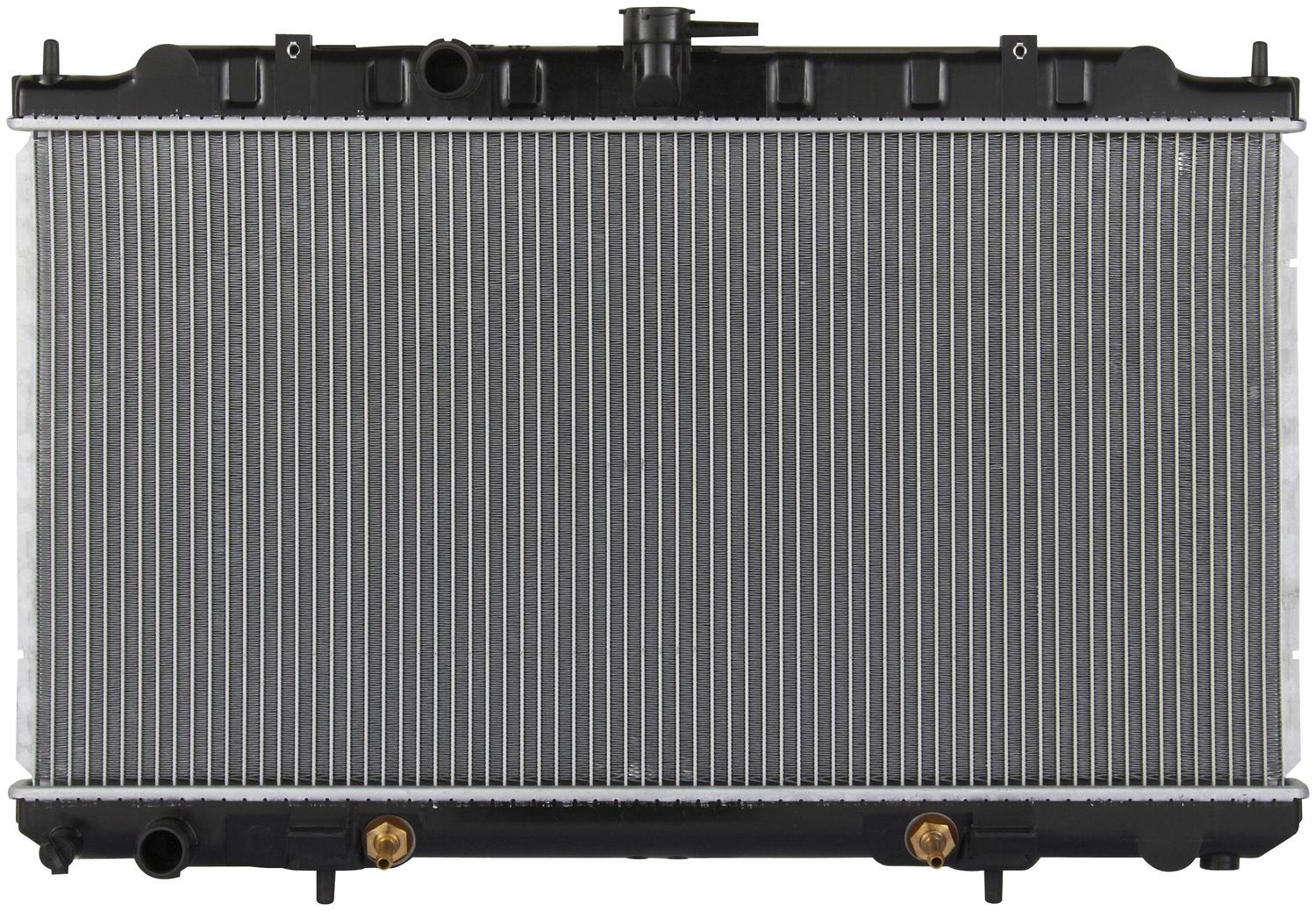

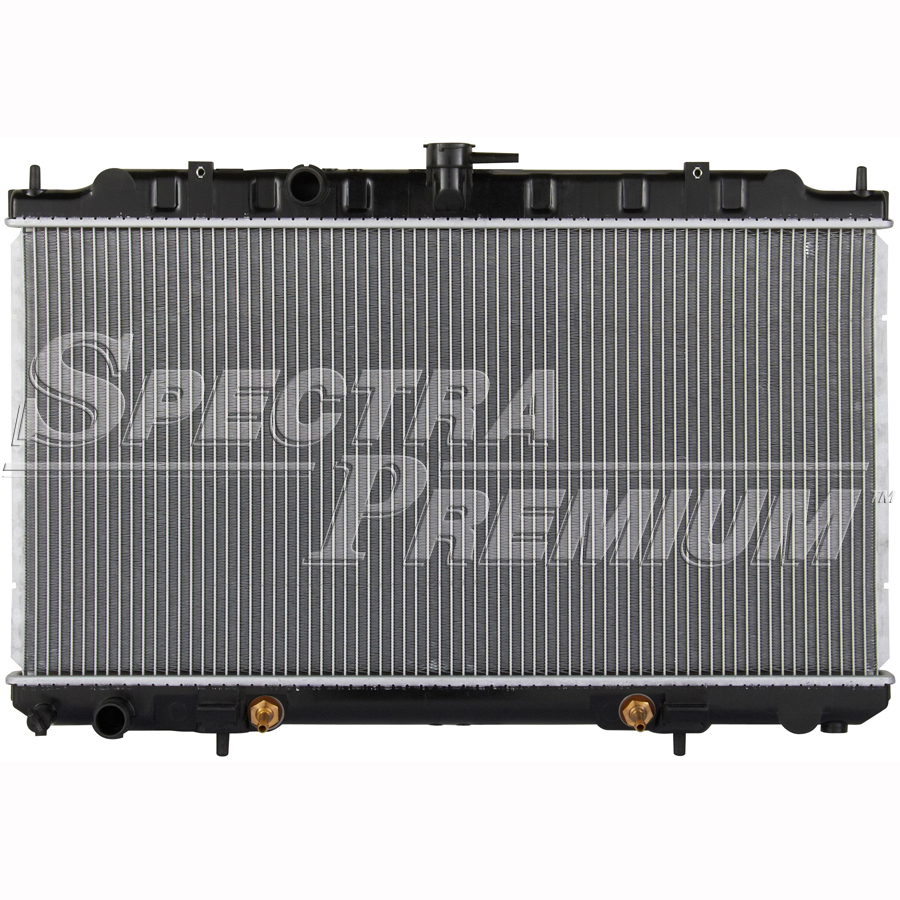

| Part Terminology | Radiator |
