| Heavy Duty Supplier | Yes |
| Inlet Header Length | 779 |
| Transmission Oil Cooler Included | Yes |
| Inlet Location | Top Right |
| Duty Type | Heavy Duty |
| Engine Oil Cooler Included | No |
| Installation Kit / Hardware Kit / Package Contents | 2 x Oil Cooler Adaptor 1/4 NPT Male x 1/2 - 20 UNF Female 6 x Shroud Clip 2 x Steel Clip |
| Transmission Oil Cooler Type | Plated |
| Core Width | 757 |
| Core Material | Aluminum |
| California_Prop 65 Message | Y |
| Inlet Diameter | 38 |
| Inlet Header Width | 83 |
| Down Flow Or Cross Flow Type | Down Flow |
| Core Row Quantity | 2 |
| Tank Material | Aluminum |
| Outlet Header Width | 83 |
| Transmission Oil Cooler Fitting Type | 1/4 NPT Female |
| Outlet Diameter | 44 |
| Outlet Header Length | 779 |
| Internal Transmission Oil Cooler | Yes |
| Mounting Type | Flange |
| Core Height | 537 |
| Core Thickness | 44 |
| Transmission Oil Cooler Distance between Fittings | 305 |
| Internal Engine Oil Cooler | No |
| Outlet Location | Bottom left |
| Frame Included | No |

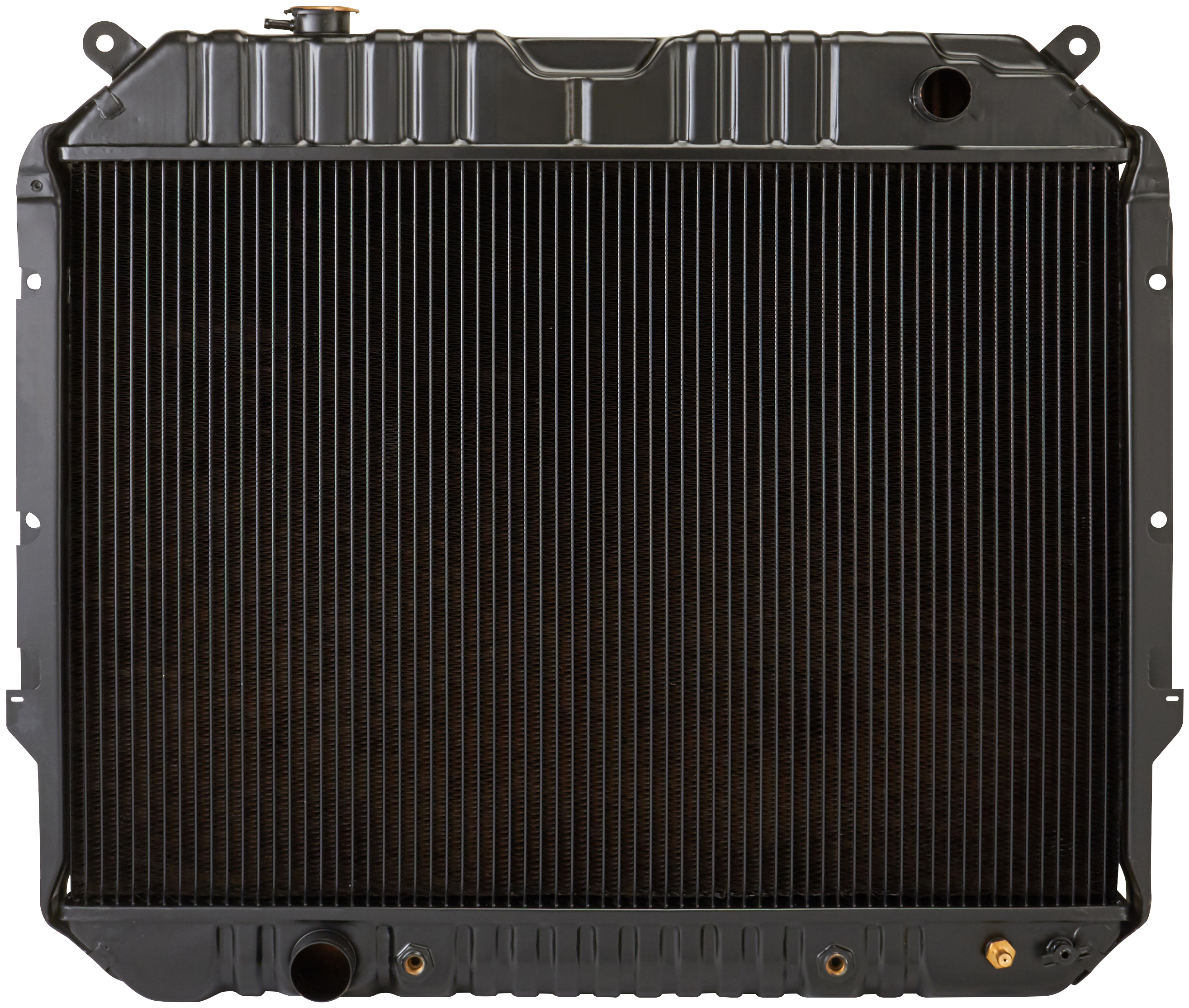

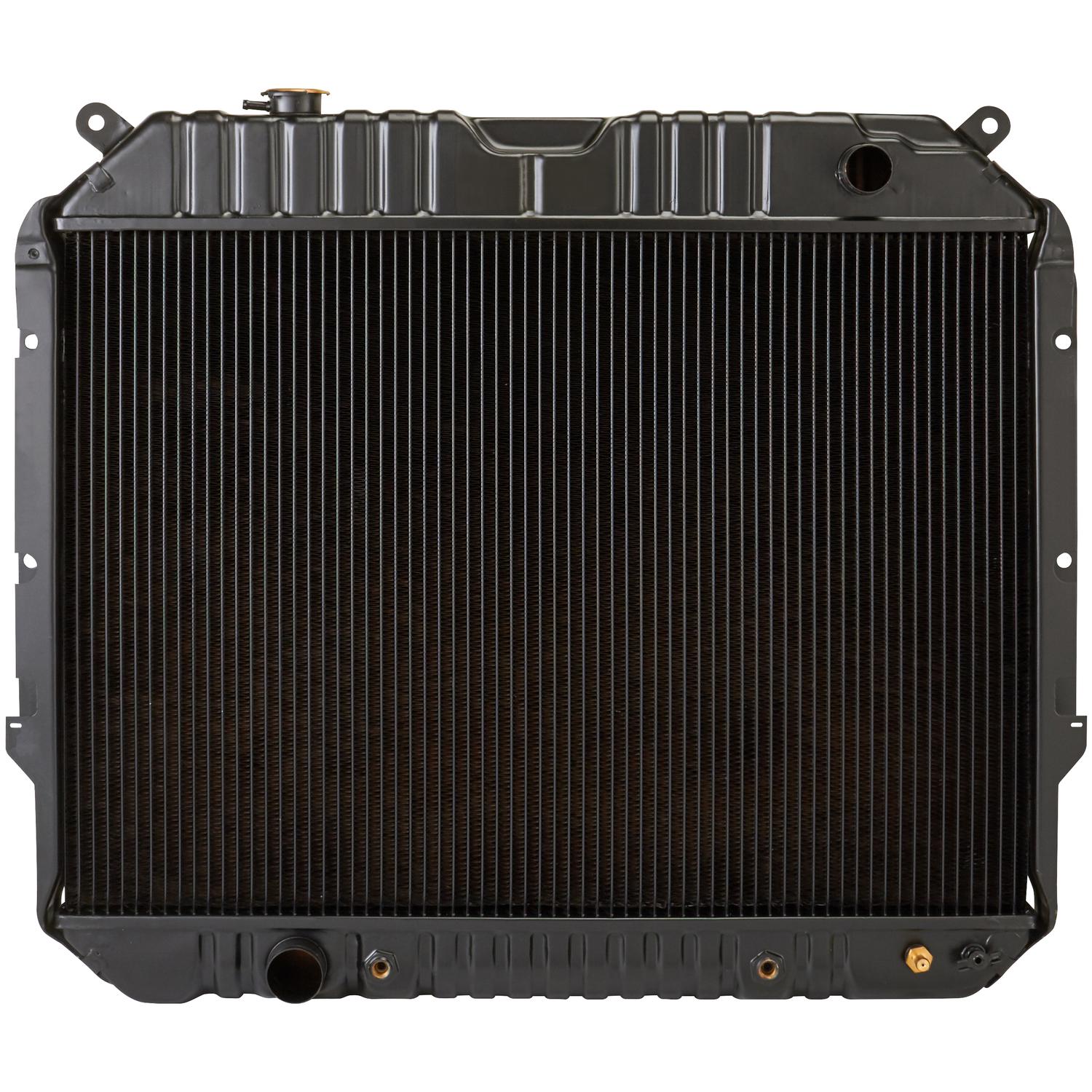

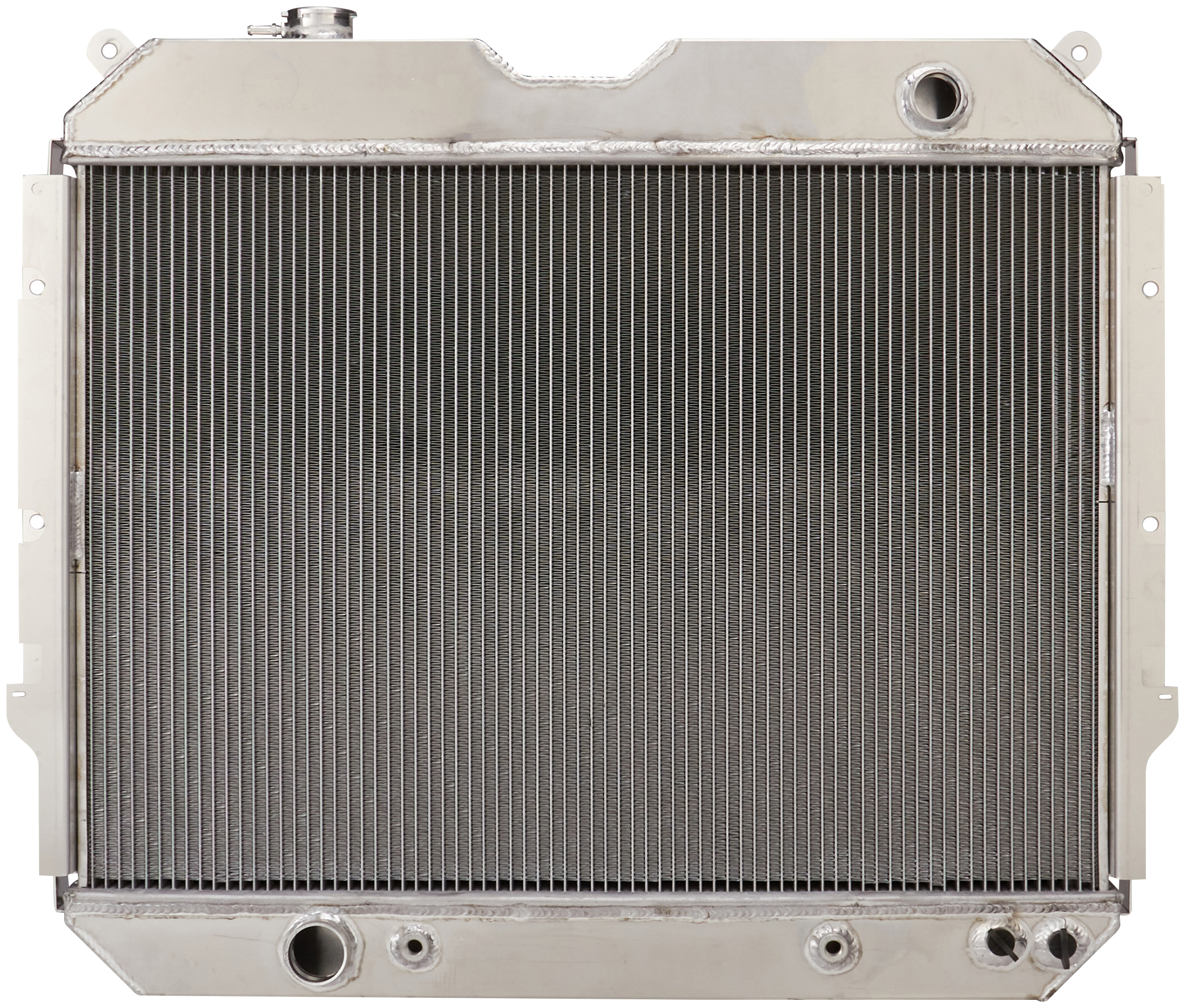

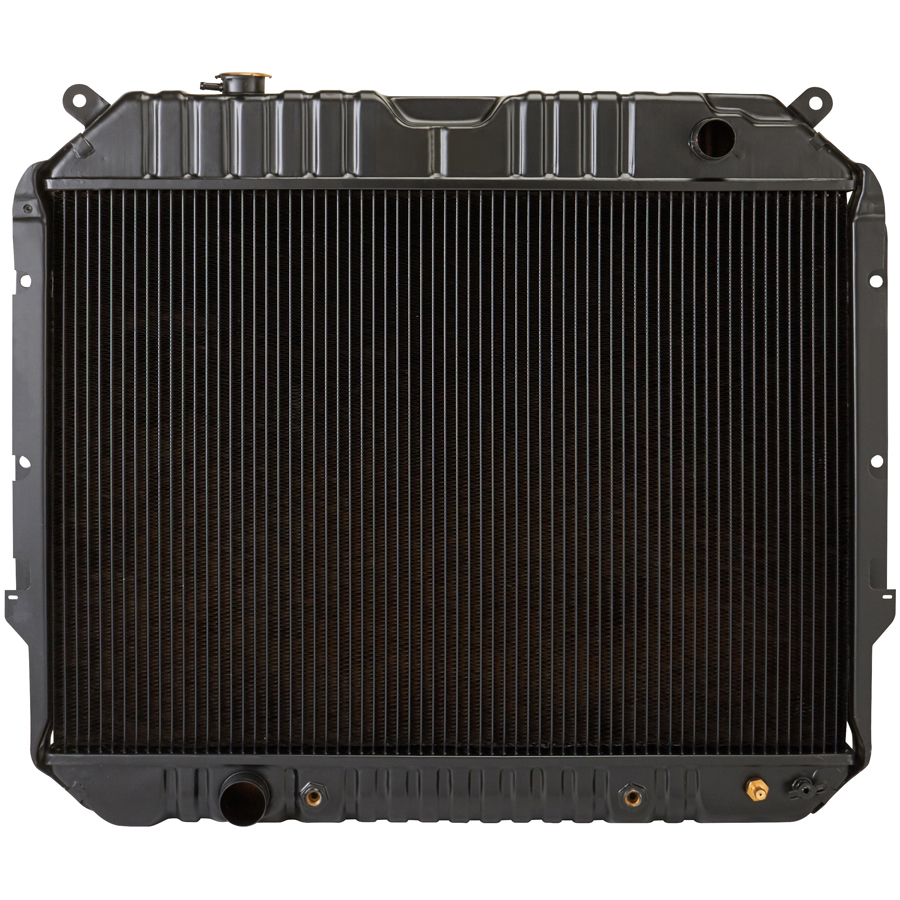

| Part Terminology | Radiator |
