| Heavy Duty Supplier | Yes |
| Inlet Header Length | 721 |
| Transmission Oil Cooler Included | Yes |
| Inlet Location | Top Left |
| Engine Oil Cooler Included | No |
| Core Width | 699 |
| Transmission Oil Cooler Type | Concentric |
| Core Material | Aluminum |
| California_Prop 65 Message | Y |
| Inlet Diameter | 29 |
| Inlet Header Width | 49 |
| Down Flow Or Cross Flow Type | Down Flow |
| Core Row Quantity | 1 |
| Tank Material | Plastic |
| Outlet Header Width | 49 |
| Transmission Oil Cooler Fitting Type | Hose Barb 8mm |
| Outlet Diameter | 29 |
| Outlet Header Length | 716 |
| Internal Transmission Oil Cooler | Yes |
| Mounting Type | Bottom Post / Top Saddle |
| Core Height | 325 |
| Core Thickness | 25 |
| Transmission Oil Cooler Distance between Fittings | 19 |
| Internal Engine Oil Cooler | No |
| Outlet Location | Bottom right |
| Frame Included | No |

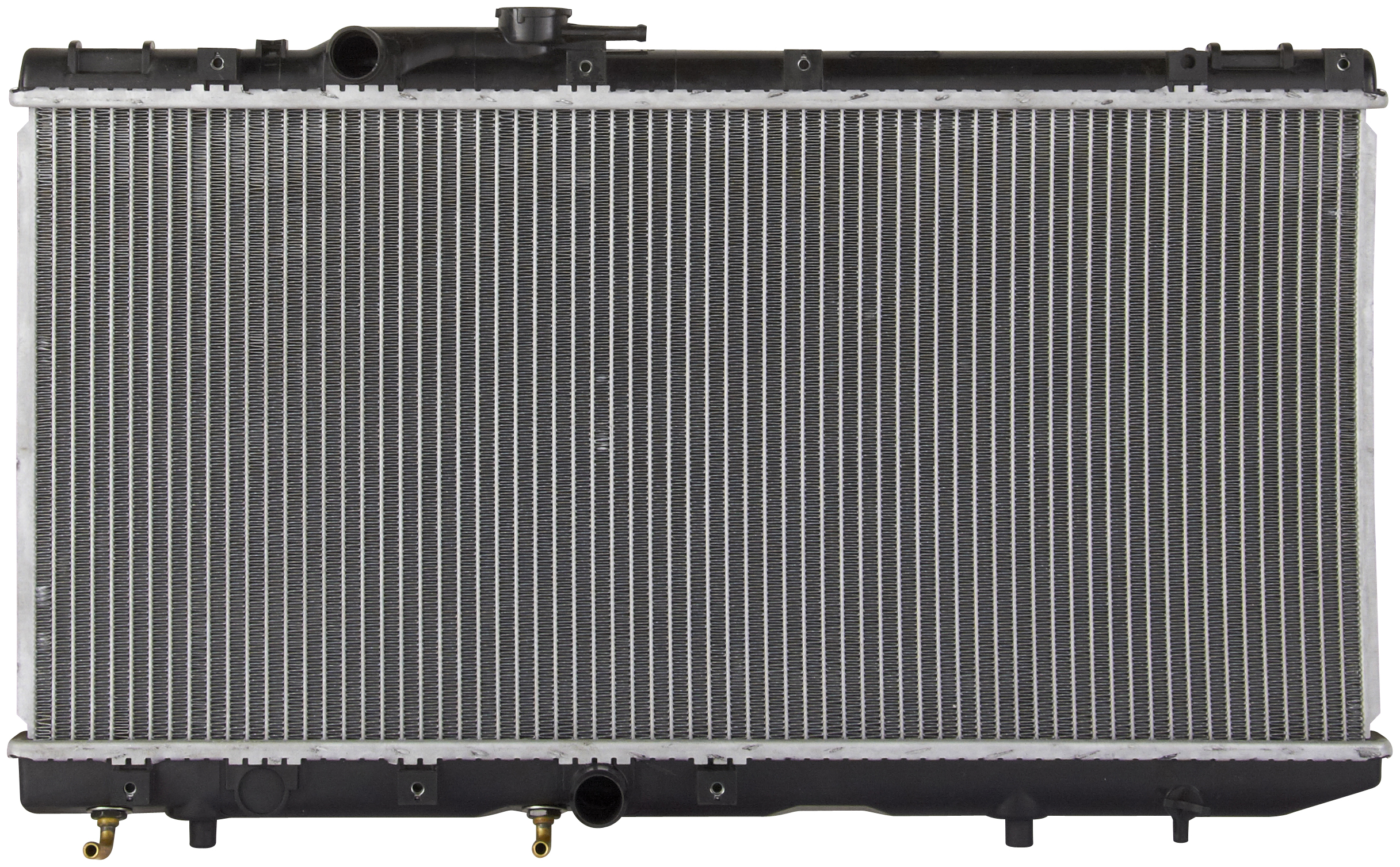

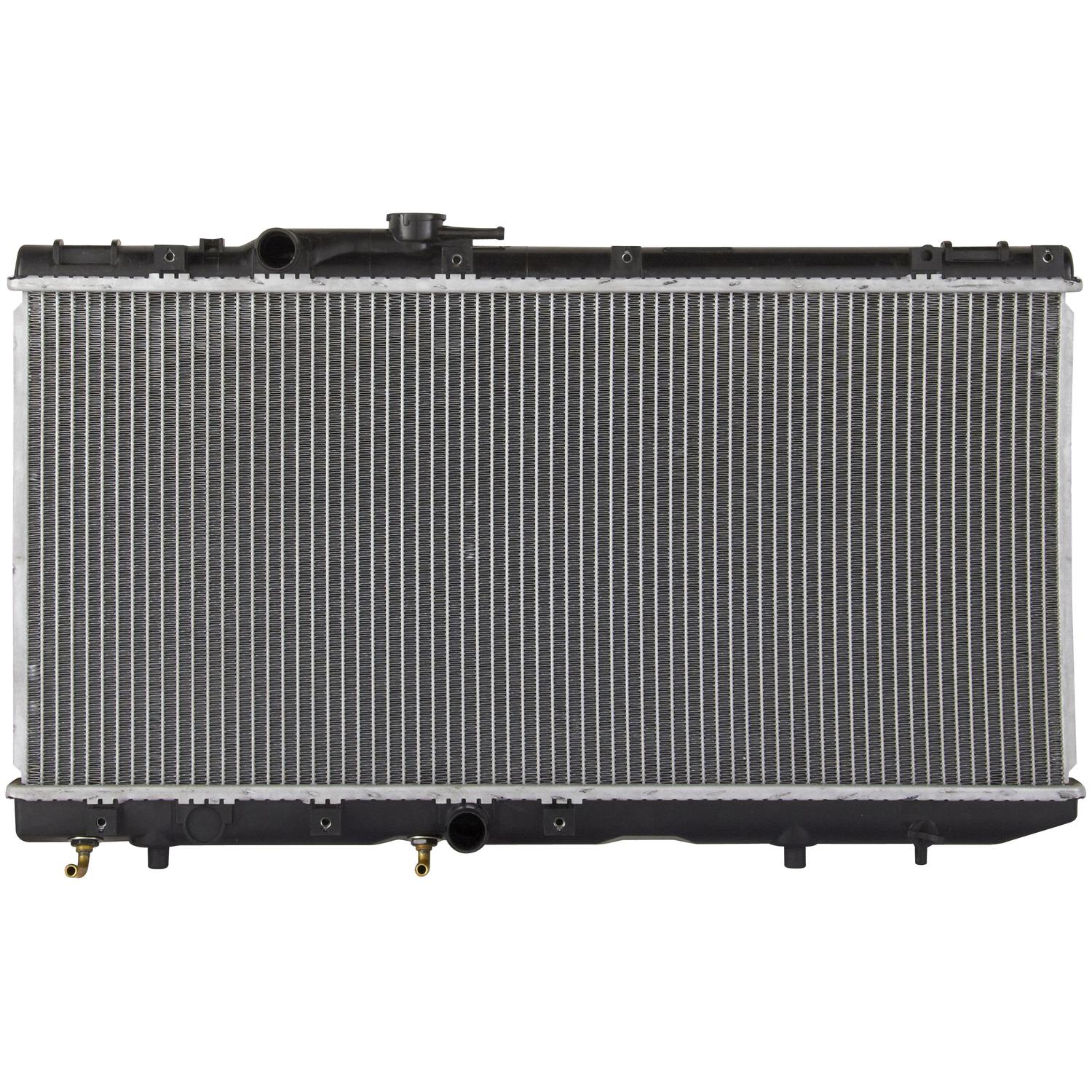

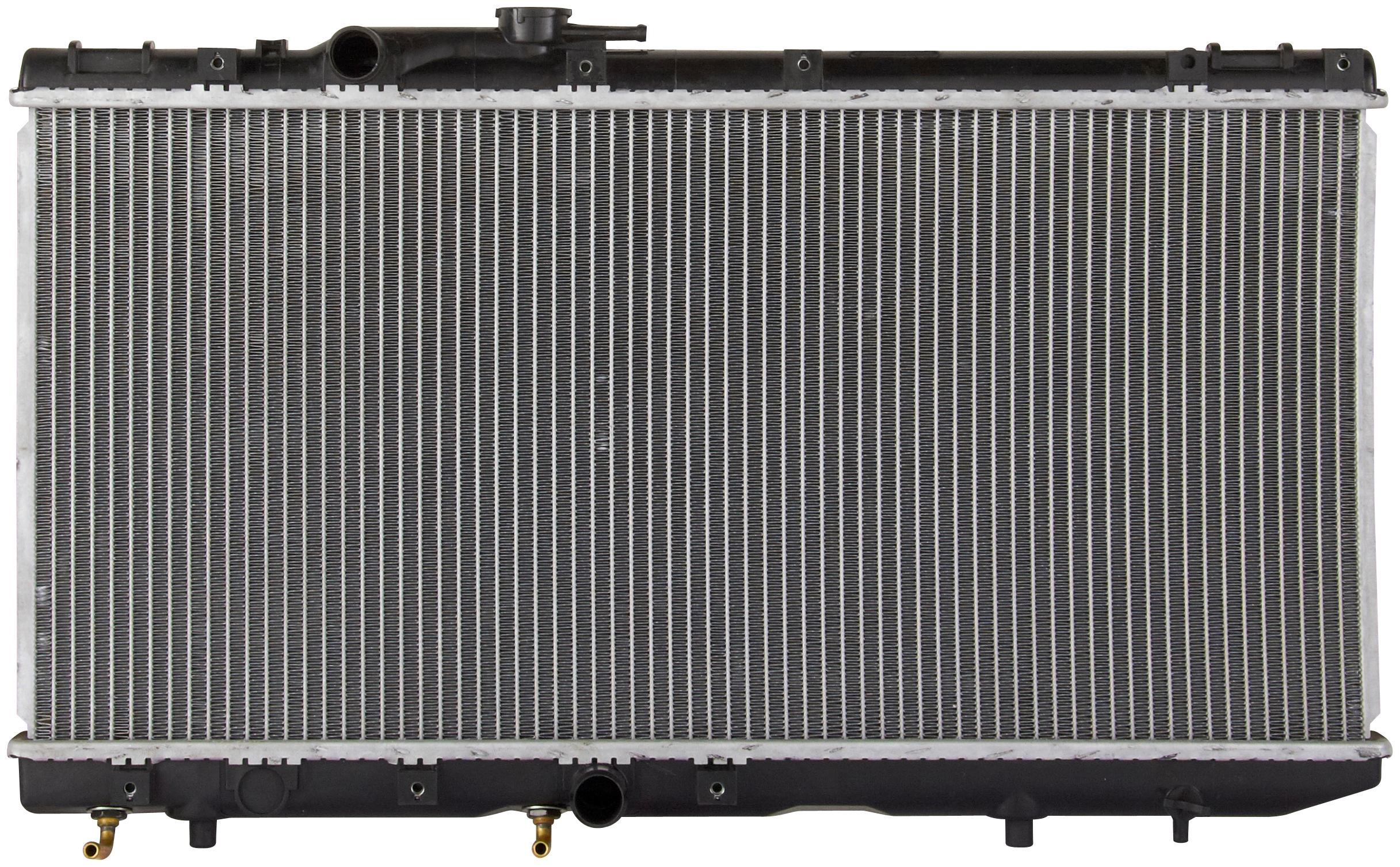

| Part Terminology | Radiator |
