| Heavy Duty Supplier | Yes |
| Transmission Oil Cooler Included | Yes |
| Inlet Header Length | 394 |
| Inlet Location | Top Left |
| Engine Oil Cooler Included | No |
| Installation Kit / Hardware Kit / Package Contents | (ACPK221) 1 x Instruction Sheet 2 x Oil Cooler Adapter 1/2"-20 UNF Female X 1/4"-18 NPT Male 1 x Steel Clip 2 x O-RING 2 x Rubber pads |
| Transmission Oil Cooler Type | Concentric |
| Core Width | 381 |
| Core Material | Aluminum |
| California_Prop 65 Message | Y |
| Inlet Diameter | 38 |
| Inlet Header Width | 51 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Core Row Quantity | 1 |
| Tank Material | Plastic |
| Outlet Header Width | 76 |
| Transmission Oil Cooler Fitting Type | 3/8-18 NPT Female |
| Outlet Diameter | 38 |
| Outlet Header Length | 394 |
| Internal Transmission Oil Cooler | Yes |
| Mounting Type | Post |
| Core Height | 610 |
| Core Thickness | 25 |
| Transmission Oil Cooler Distance between Fittings | 39 |
| Internal Engine Oil Cooler | No |
| Outlet Location | Bottom right |
| Frame Included | No |

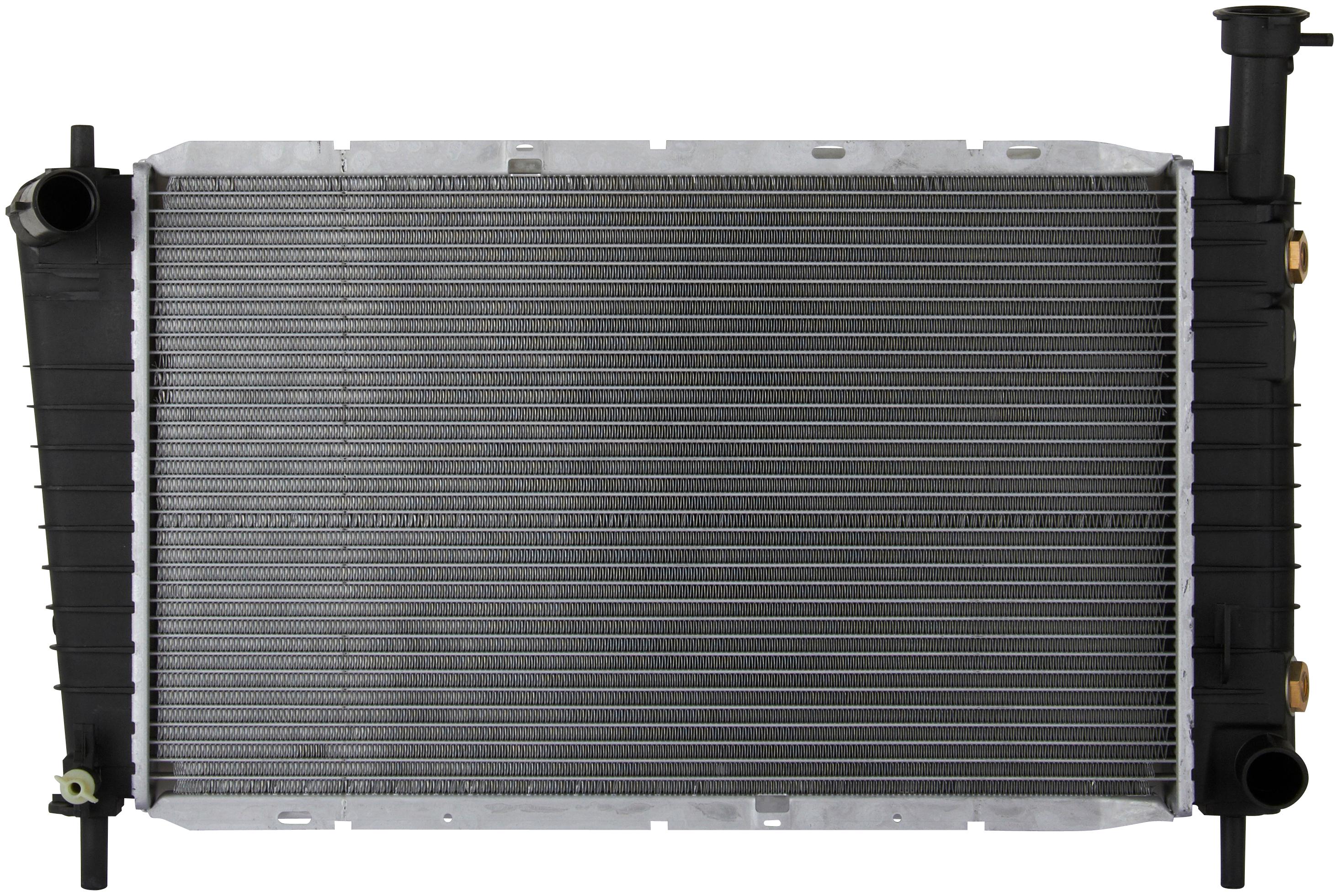

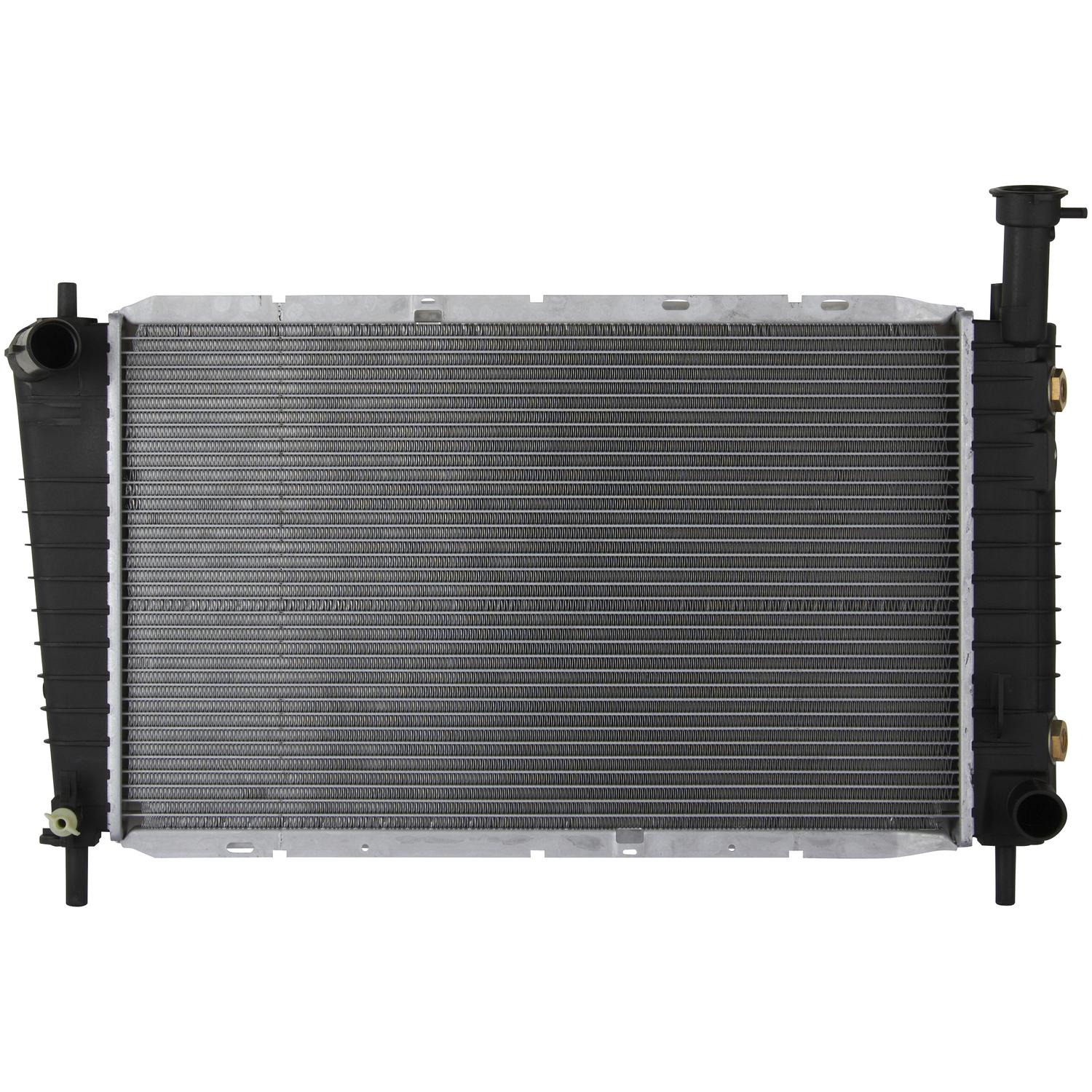

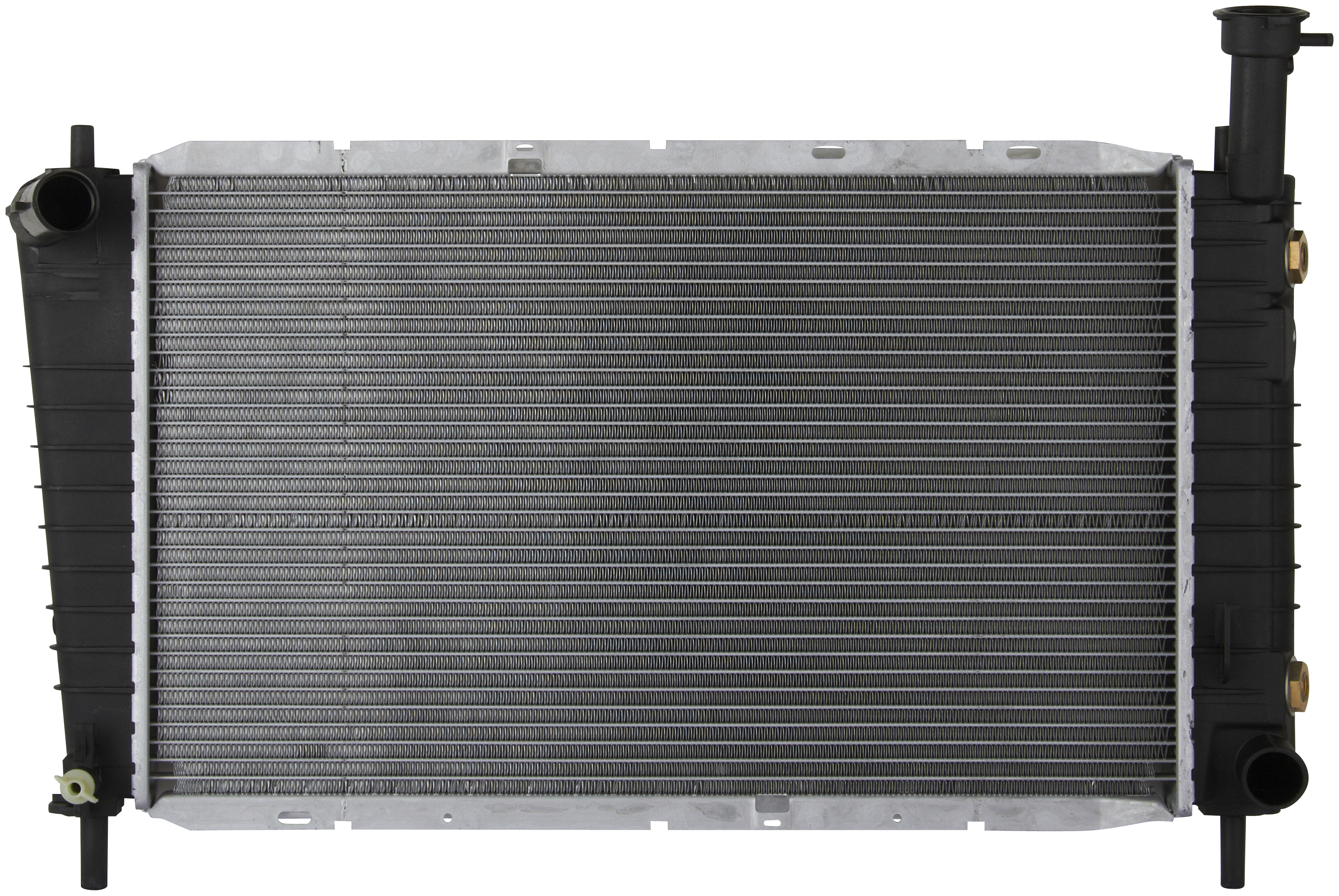

| Part Terminology | Radiator |
