| Oversized | No |
| Radial Wall Thickness - Top (mm) | 3.450 |
| Heavy Duty Supplier | Yes |
| File Fit | N |
| Bore Diameter | 94.00 |
| Ring Set Groove Widths | 1.2 x 1.5 x 2.5 |
| Standard Size | Standard Size |
| Oil Ring Tension | Low |
| File Fit (Y/N) | N |
| Oil Ring Design | 3 Piece Flex Vent |

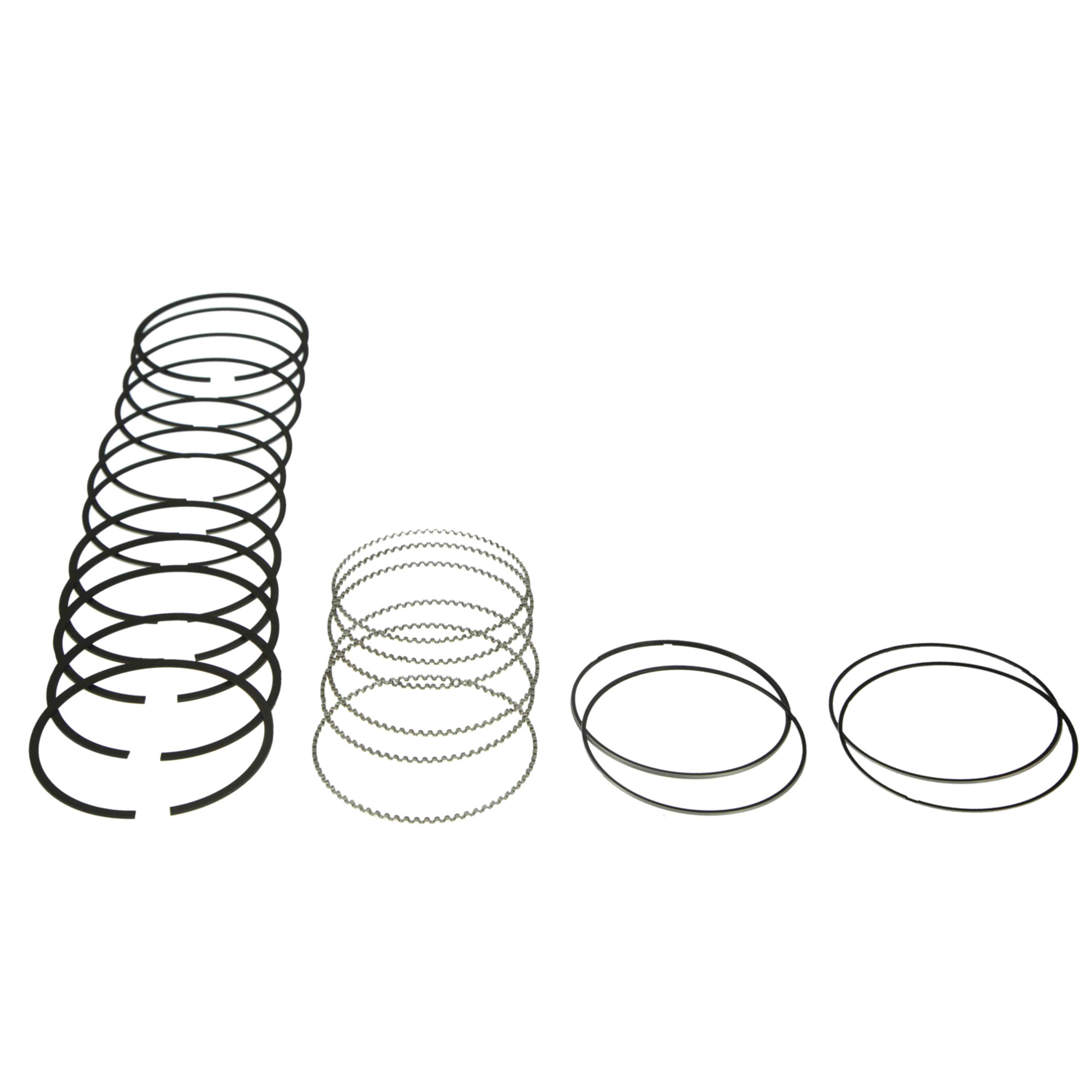

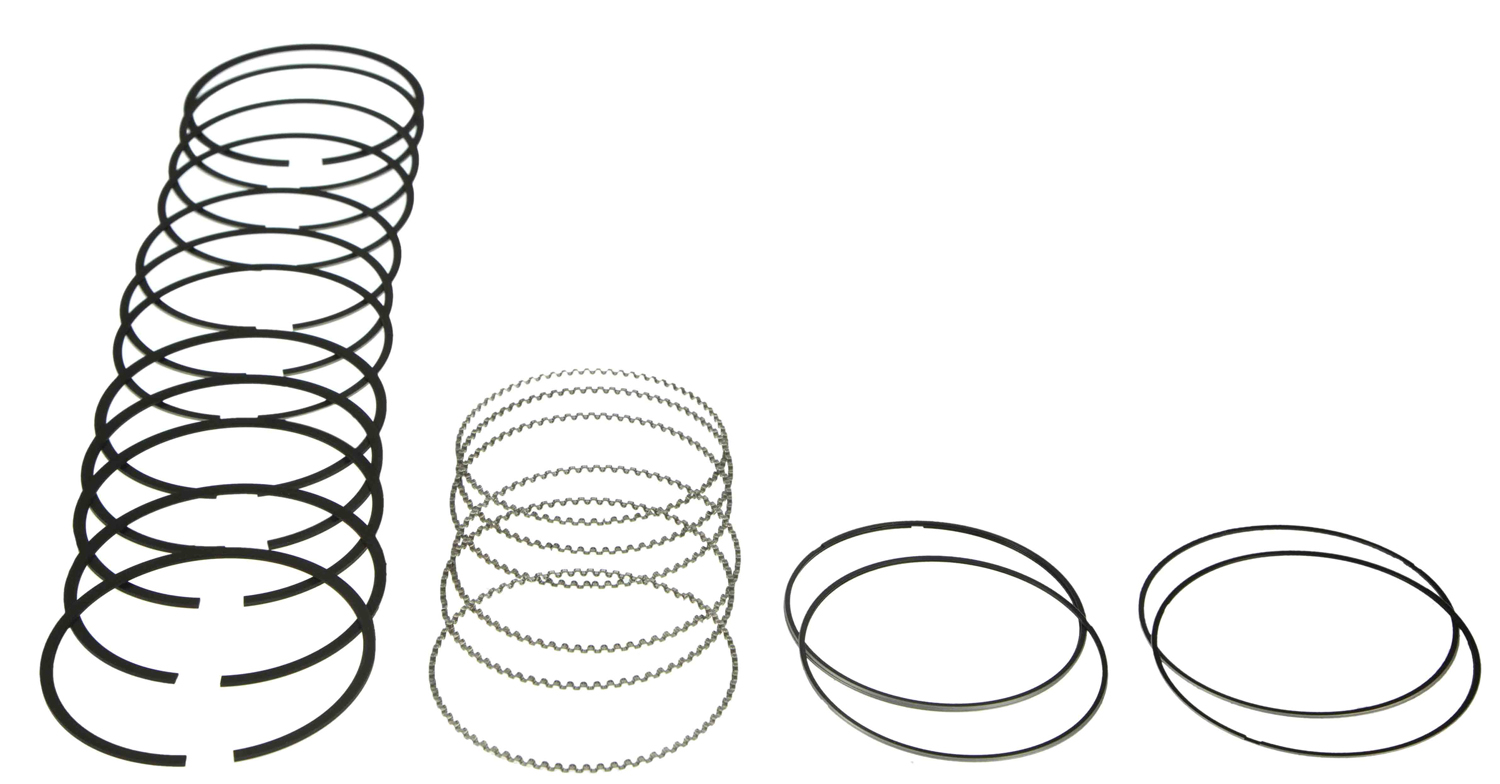

| Part Description | Engine Piston Ring Set |
| Top Ring Face Design | Barrel Face |
| Ring Set Groove Widths (mm) | 1.2 x 1.5 x 2.5 |
| Top Ring Width (mm) | 1.20 |
| 2nd Ring Face Design | Reverse Torsional |
| 2nd Ring Width (mm) | 1.50 |
| 2nd Ring Material | Grey Iron w/Phosphate Coating |
| Oil Ring Width (mm) | 2.50 |
| Cylinder Quantity | 6 |
| Bore Size (mm) | 94.00 |
| Outside Diameter (MM) | 94.00 |
| Prop 65 Label (Yes/No) | Yes |
| California Proposition 65 | ⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Top Ring Material | Steel w/Moly |
| Outside Diameter | 94.00 |
| Grade Type | Premium |
| Part Terminology | Engine Piston Ring Set |
