| Cam Type | Hydraulic |
| Lobe Separation | 115 |
| Exhaust Duration at .050 inch Lift | 221.0000 |
| Intake Duration at .050 Inch Lift | 206.0000 |
| Intake Valve Lift | 0.4810 |
| Advertised Intake Duration | 206.0000 |
| Exhaust Valve Lift | 12.446 |
| Advertised Exhaust Duration | 221.0000 |
| Engine Family | Cleveland |
| Exhaust Lobe Center | 110 |
| Footnote Code | (050) Duration at .050 Lobe Lift |
| Overlap | 63 |
| Duration @ .050 Lift | 206/221 |
| Cam Lift Intake (Inch) | 0.2780 |
| Cam Lift Exhaust (Inch) | 0.2830 |
| Cam Series | Pro-2000 |
| Exhaust Lift (Inch) | 0.4900 |
| Intake Lift (Inch) | 0.4810 |
| Exhaust Lift (MM) | 7.188 |
| Intake Lift (MM) | 7.061 |
| Intake Lobe Center | 120 |
| Duration @ .006 Lift | 287/307 |
| Manufacturer | Ford |
| Heavy Duty Supplier | Yes |

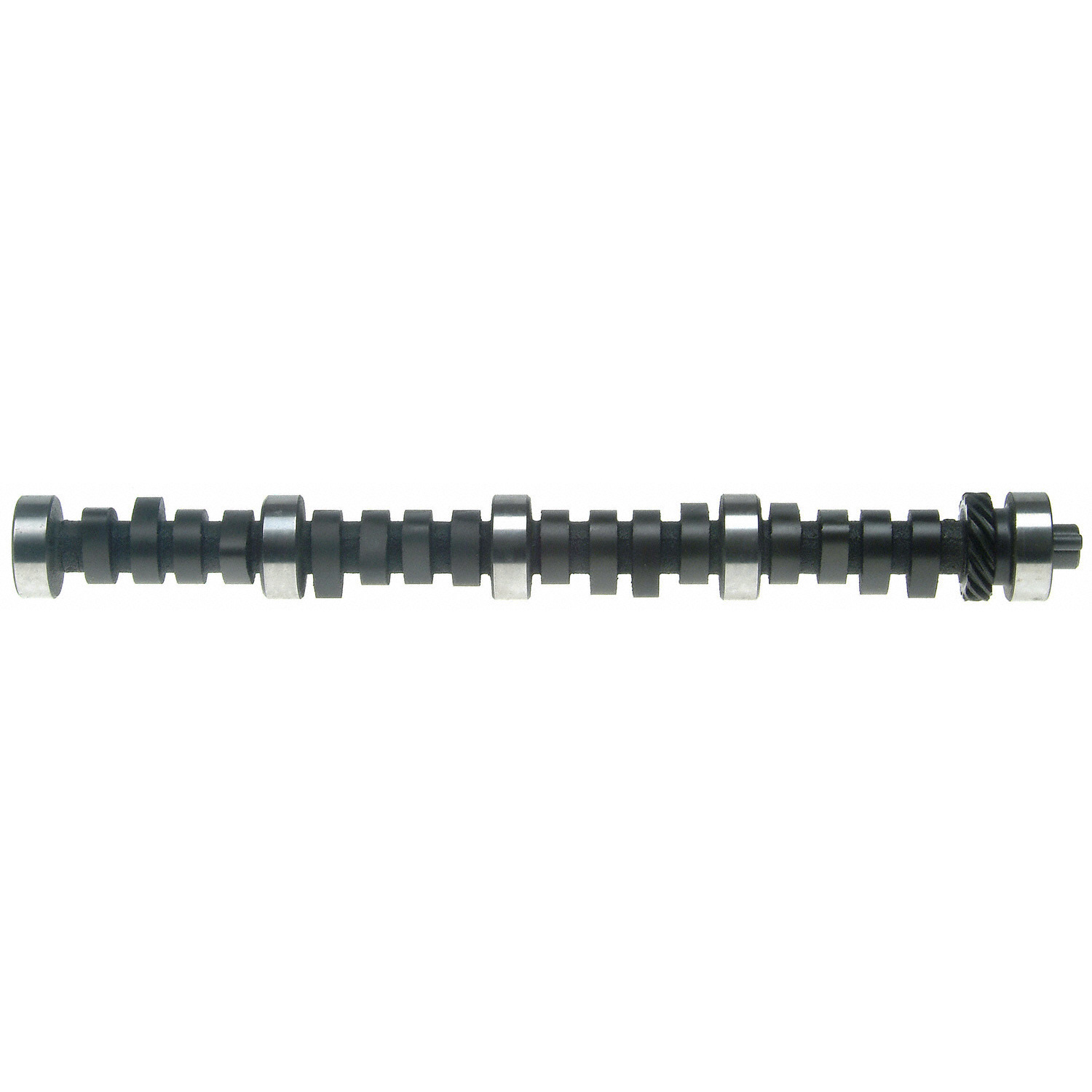

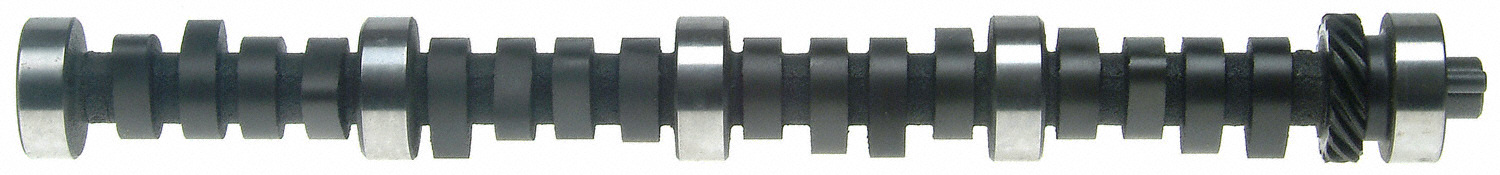

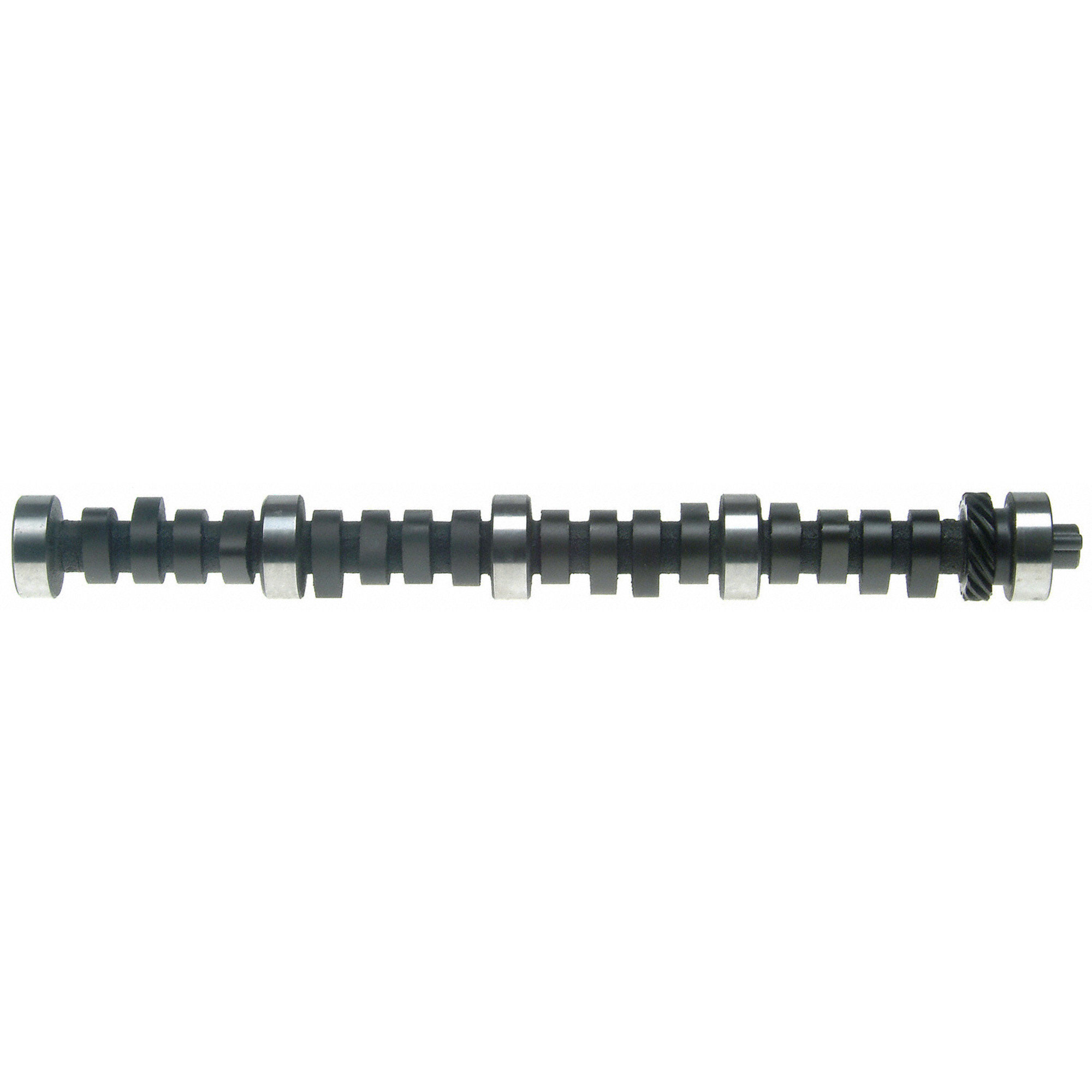

| Part Terminology | Engine Camshaft |
