| Lobe Separation | 113 |
| Cam Type | Mechanical |
| Exhaust Duration at .050 inch Lift | 196.0000 |
| Intake Duration at .050 Inch Lift | 197.0000 |
| Exhaust Valve Lift | 0.2620 |
| Intake Valve Lift | 0.2635 |
| Advertised Exhaust Duration | 196.0000 |
| Advertised Intake Duration | 197.0000 |
| Footnote Code | (050) Duration at .050 Lobe Lift |
| Intake Lobe Center | 110 |
| Exhaust Lobe Center | 116 |
| Overlap | 21 |
| Exhaust Lift (Inch) | 0.2620 |
| Intake Lift (Inch) | 0.2635 |
| Exhaust Lift (MM) | 6.655 |
| Intake Lift (MM) | 6.693 |
| Heavy Duty Supplier | Yes |

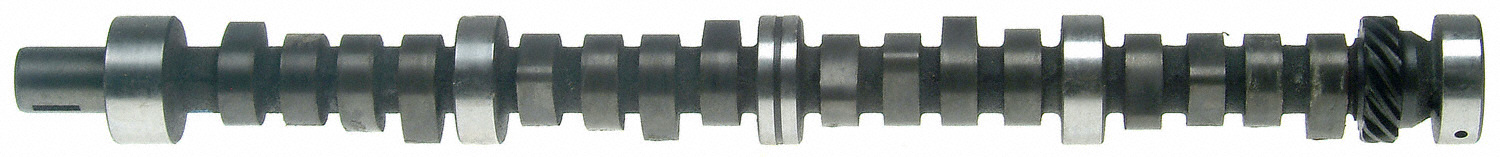

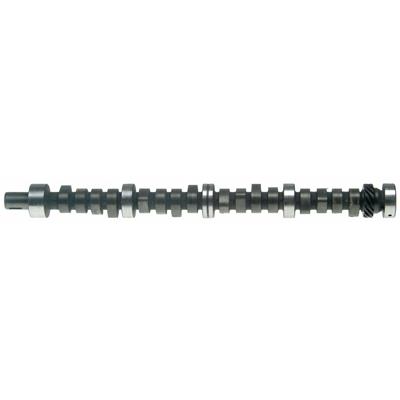

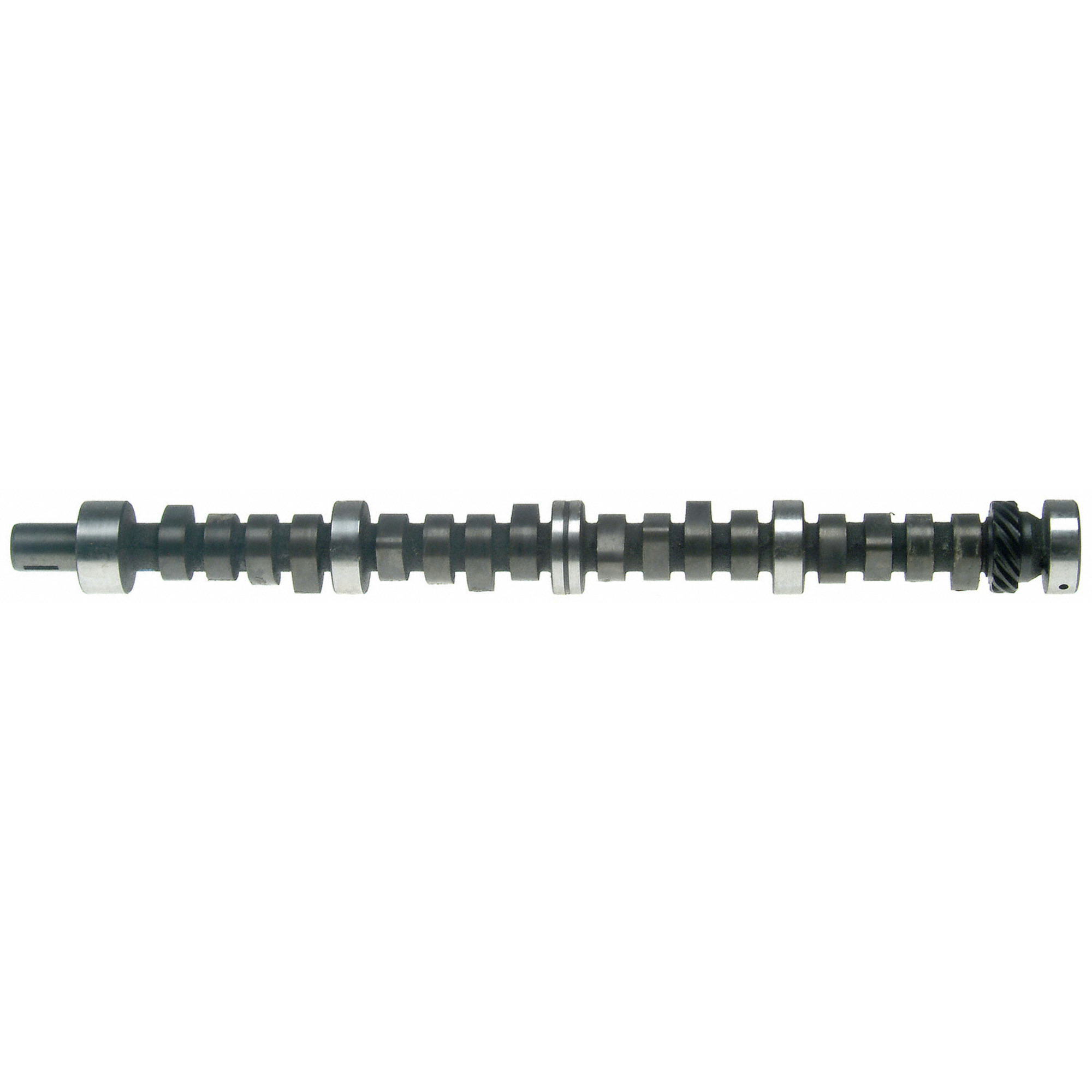

| Part Terminology | Engine Camshaft |
