| Overall Height | 1.72 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 20 |
| Wheel Bolt Circle Diameter | 3.937 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 10.071 |
| Wheel Bolt Hole Diameter, Maximum | 0.507 |
| Inside Diameter | 153 |
| Wheel Bolt Hole Diameter, Minimum | 0.487 |
| Wheel Bolt Holes, Primary | 4 |
| Brake Rotor Type | Conventional |
| Salability Restrictions | No |
| Height | 43.700 |
| Mounting Bolt Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 1.720 |
| Rotor Braking Surface Machining Type | Uniform |
| Solid Or Vented Type Rotor | Vented |
| Brake Rotor Thickness, Nominal | 0.866 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Vented |
| Brake Rotor Thickness, Discard | 0.787 |
| Performance Level | Standard Performance |
| Brake Rotor Diameter, Inner | 6.024 |
| Surface Type | Smooth |
| Outside Diameter | 255.8 |
| Nominal Thickness | 0.866 |
| Center Hole Diameter, Minimum | 2.451 |

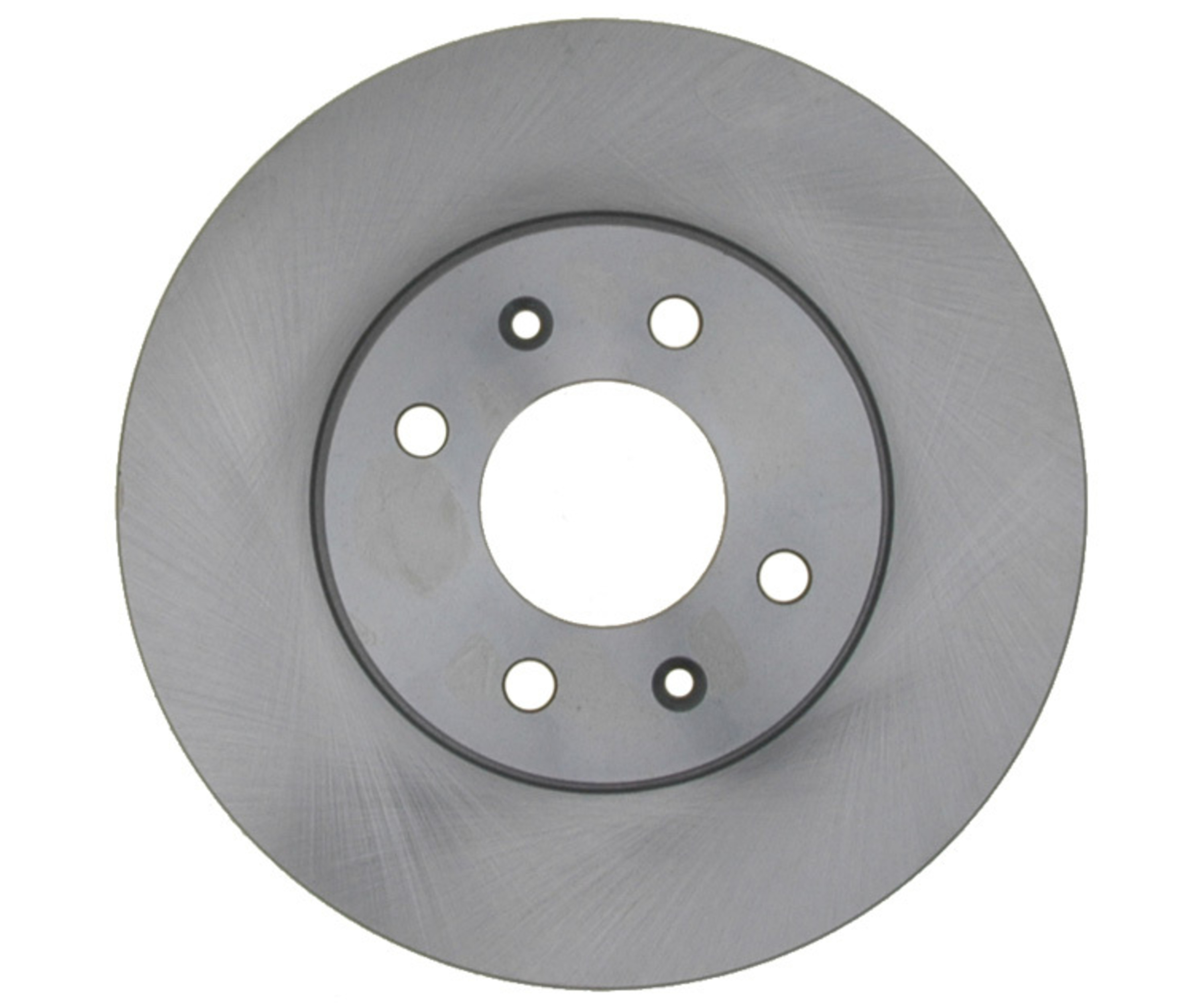

| Part Terminology | Disc Brake Rotor |
