| Overall Height | 2.51 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 8.4 |
| Wheel Bolt Circle Diameter | 4.500 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 10.313 |
| Inside Diameter | 185 |
| Wheel Bolt Hole Diameter, Minimum | 4.500 |
| Wheel Bolt Holes, Primary | 5 |
| Brake Rotor Type | Drum-in-Hat |
| Salability Restrictions | No |
| Height | 63.800 |
| Mounting Bolt Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 2.512 |
| Rotor Braking Surface Machining Type | Uniform |
| Solid Or Vented Type Rotor | Solid |
| Brake Rotor Thickness, Nominal | 0.395 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Solid |
| Brake Rotor Thickness, Discard | 0.331 |
| Performance Level | Standard Performance |
| Brake Rotor Diameter, Inner | 7.283 |
| Surface Type | Smooth |
| Outside Diameter | 261.95 |
| Nominal Thickness | 0.395 |
| Center Hole Diameter, Minimum | 2.992 |

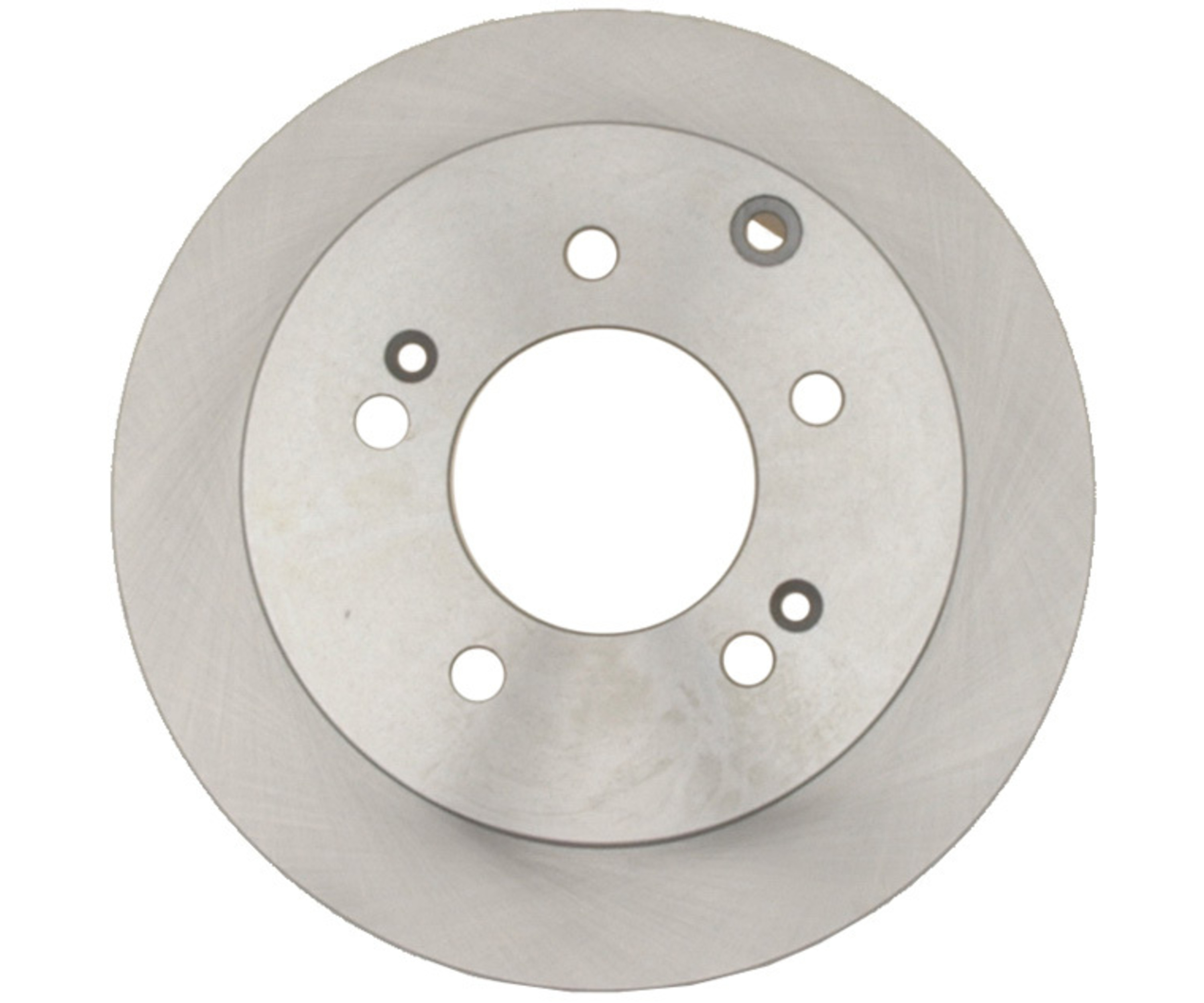

| Part Terminology | Disc Brake Rotor |
