| Overall Height | 2.195 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 9 |
| Wheel Bolt Circle Diameter | 4.724 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 13.135 |
| Wheel Bolt Hole Diameter, Maximum | 0.578 |
| Wheel Bolt Hole Diameter, Minimum | 4.724 |
| Wheel Bolt Holes, Primary | 5 |
| Brake Rotor Type | Drum-in-Hat |
| Salability Restrictions | No |
| Height | 55.750 |
| Mounting Bolt Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 2.195 |
| Solid Or Vented Type Rotor | Solid |
| Center Hole Diameter, Maximum | 2.759 |
| Brake Rotor Thickness, Nominal | 0.432 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Solid |
| Brake Rotor Thickness, Discard | 0.354 |
| Performance Level | Standard Performance |
| Outside Diameter | 333.65 |
| Nominal Thickness | 0.432 |

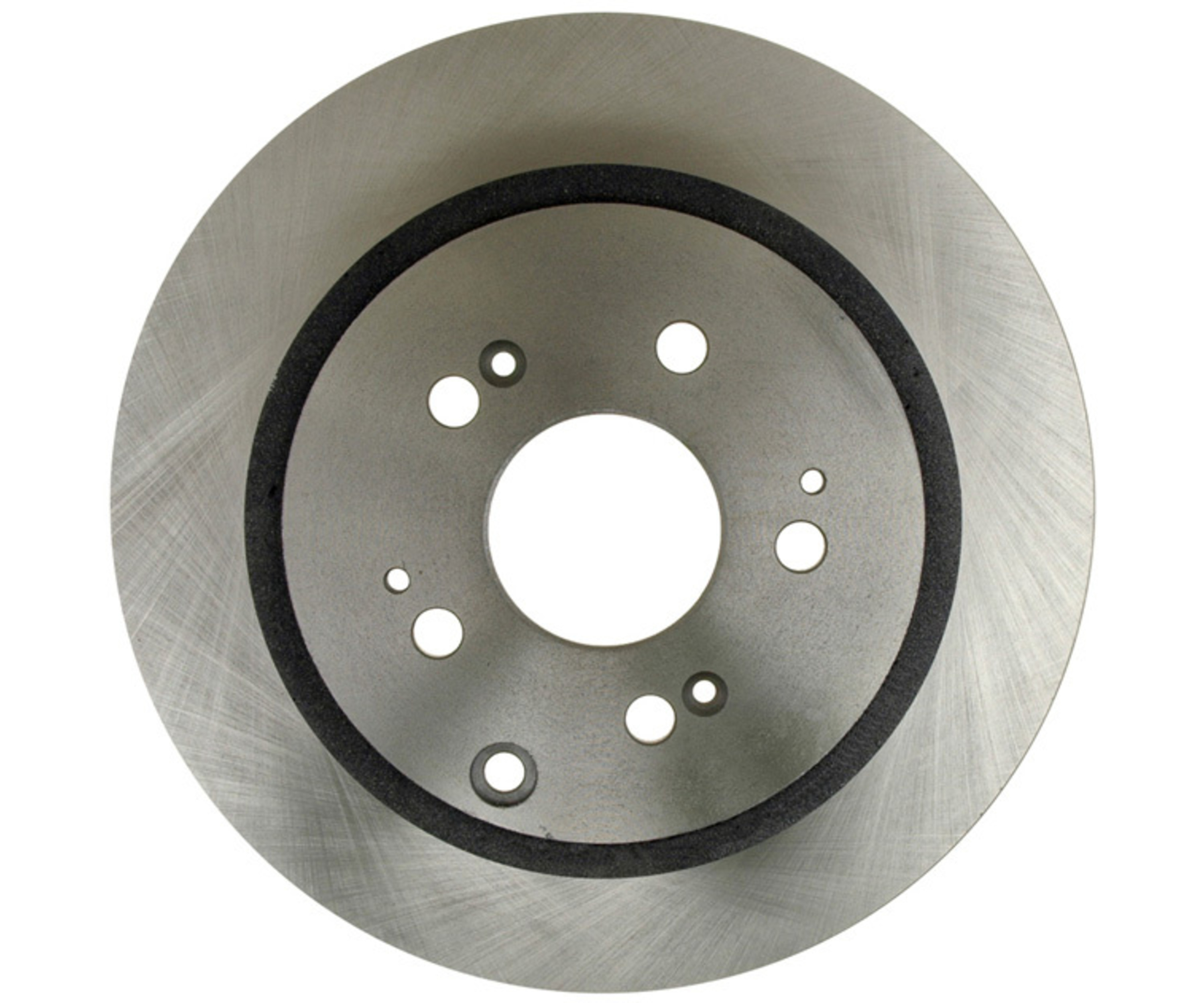

| Part Terminology | Disc Brake Rotor |
