| Overall Height | 2.77 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 20 |
| Wheel Bolt Circle Diameter | 5.500 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 11.680 |
| Wheel Bolt Hole Diameter, Maximum | 0.577 |
| Wheel Bolt Hole Diameter, Minimum | 0.557 |
| Wheel Bolt Holes, Primary | 6 |
| Brake Rotor Type | Conventional |
| Salability Restrictions | No |
| Height | 70.350 |
| Mounting Bolt Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 2.770 |
| Solid Or Vented Type Rotor | Vented |
| Brake Rotor Thickness, Nominal | 0.870 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Vented |
| Brake Rotor Thickness, Discard | 0.787 |
| Performance Level | Standard Performance |
| Outside Diameter | 296.65 |
| Nominal Thickness | 22.1 |
| Center Hole Diameter, Minimum | 4.253 |

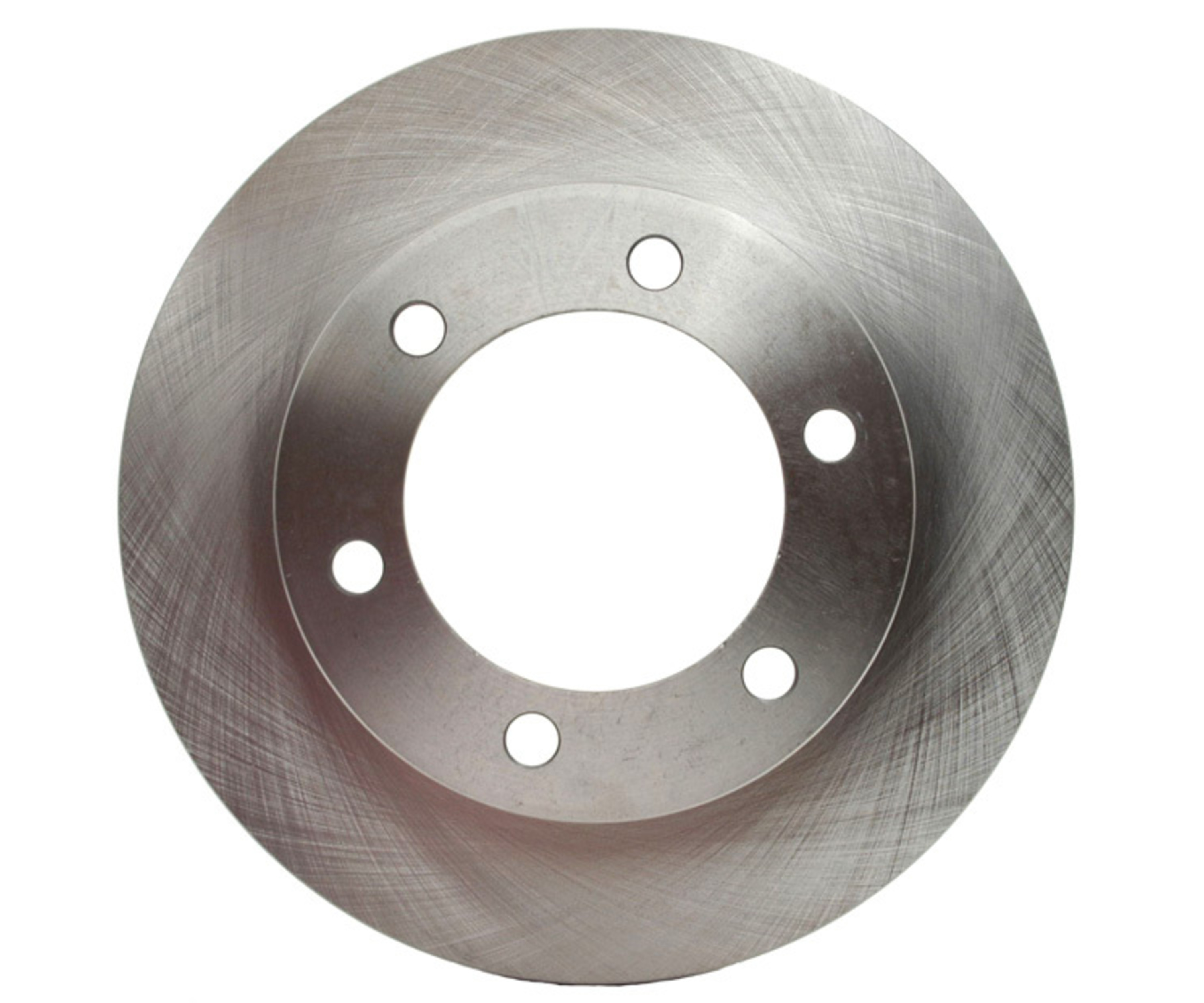

| Part Terminology | Disc Brake Rotor |
