| Overall Height | 33.2 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 10.4 |
| Wheel Bolt Circle Diameter | 5.000 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 327.990 |
| Wheel Bolt Hole Diameter, Maximum | 14.880 |
| Inside Diameter | 208.5 |
| Wheel Bolt Hole Diameter, Minimum | 5.000 |
| Wheel Bolt Holes, Primary | 5 |
| Brake Rotor Type | Conventional |
| Salability Restrictions | No |
| Height | 33.200 |
| Mounting Bolt Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 33.200 |
| Rotor Braking Surface Machining Type | Uniform |
| Solid Or Vented Type Rotor | Solid |
| Brake Rotor Thickness, Nominal | 0.472 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Solid |
| Brake Rotor Thickness, Discard | 0.409 |
| Performance Level | Standard Performance |
| Brake Rotor Diameter, Inner | 208.510 |
| Surface Type | Smooth |
| Outside Diameter | 12.913 |
| Nominal Thickness | 0.472 |
| Center Hole Diameter, Minimum | 72.490 |

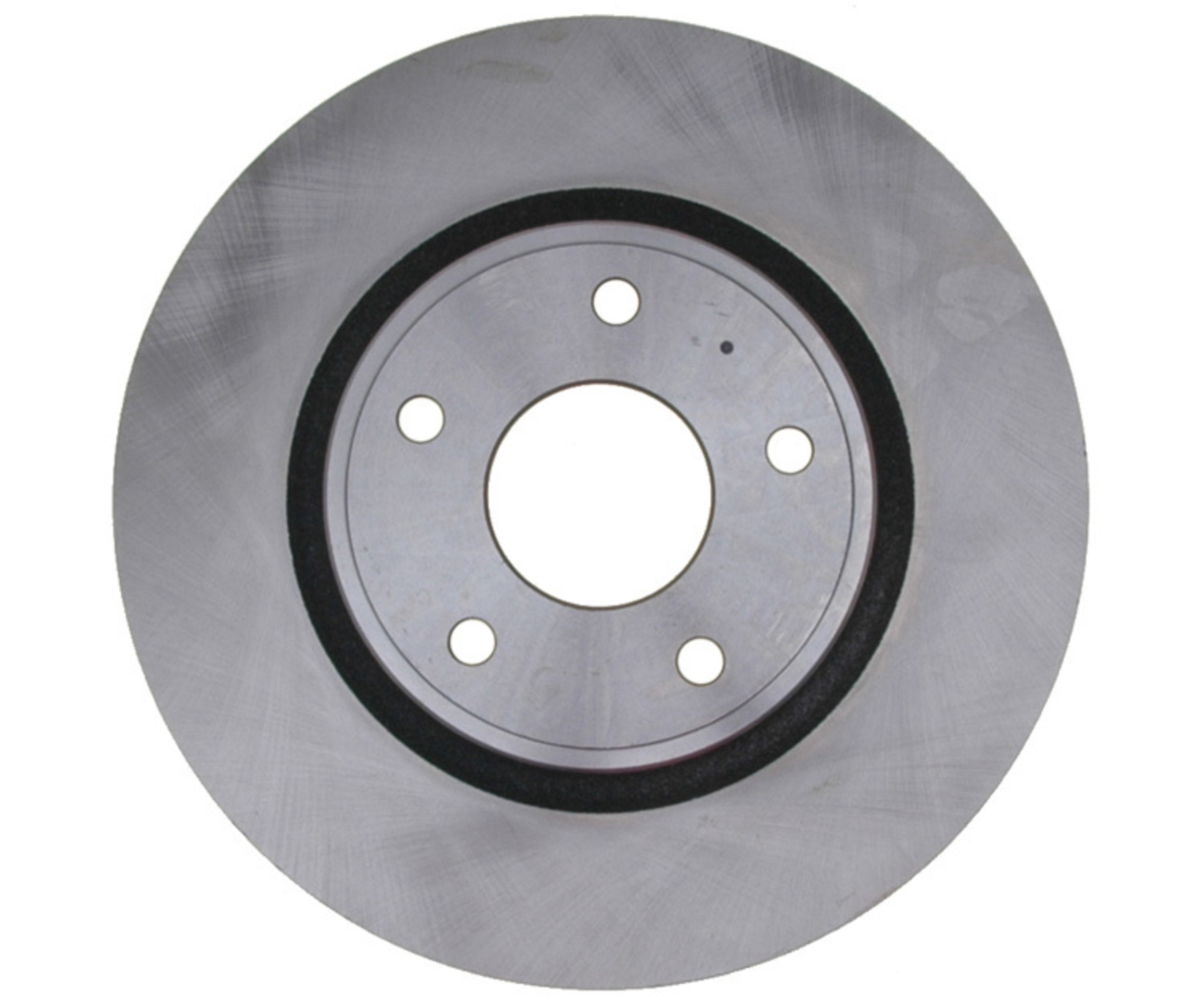

| Part Terminology | Disc Brake Rotor |
