| Overall Height | 38.25 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 26.4 |
| Wheel Bolt Circle Diameter | 5.000 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 12.992 |
| Wheel Bolt Hole Diameter, Maximum | 0.586 |
| Inside Diameter | 209.7 |
| Wheel Bolt Hole Diameter, Minimum | 5.000 |
| Wheel Bolt Holes, Primary | 5 |
| Brake Rotor Type | Conventional |
| Salability Restrictions | No |
| Height | 38.250 |
| Mounting Bolt Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 1.506 |
| Rotor Braking Surface Machining Type | Uniform |
| Solid Or Vented Type Rotor | Vented |
| Brake Rotor Thickness, Nominal | 1.102 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Vented |
| Brake Rotor Thickness, Discard | 1.039 |
| Performance Level | Standard Performance |
| Brake Rotor Diameter, Inner | 8.256 |
| Surface Type | Smooth |
| Outside Diameter | 330 |
| Nominal Thickness | 28 |
| Center Hole Diameter, Minimum | 2.854 |

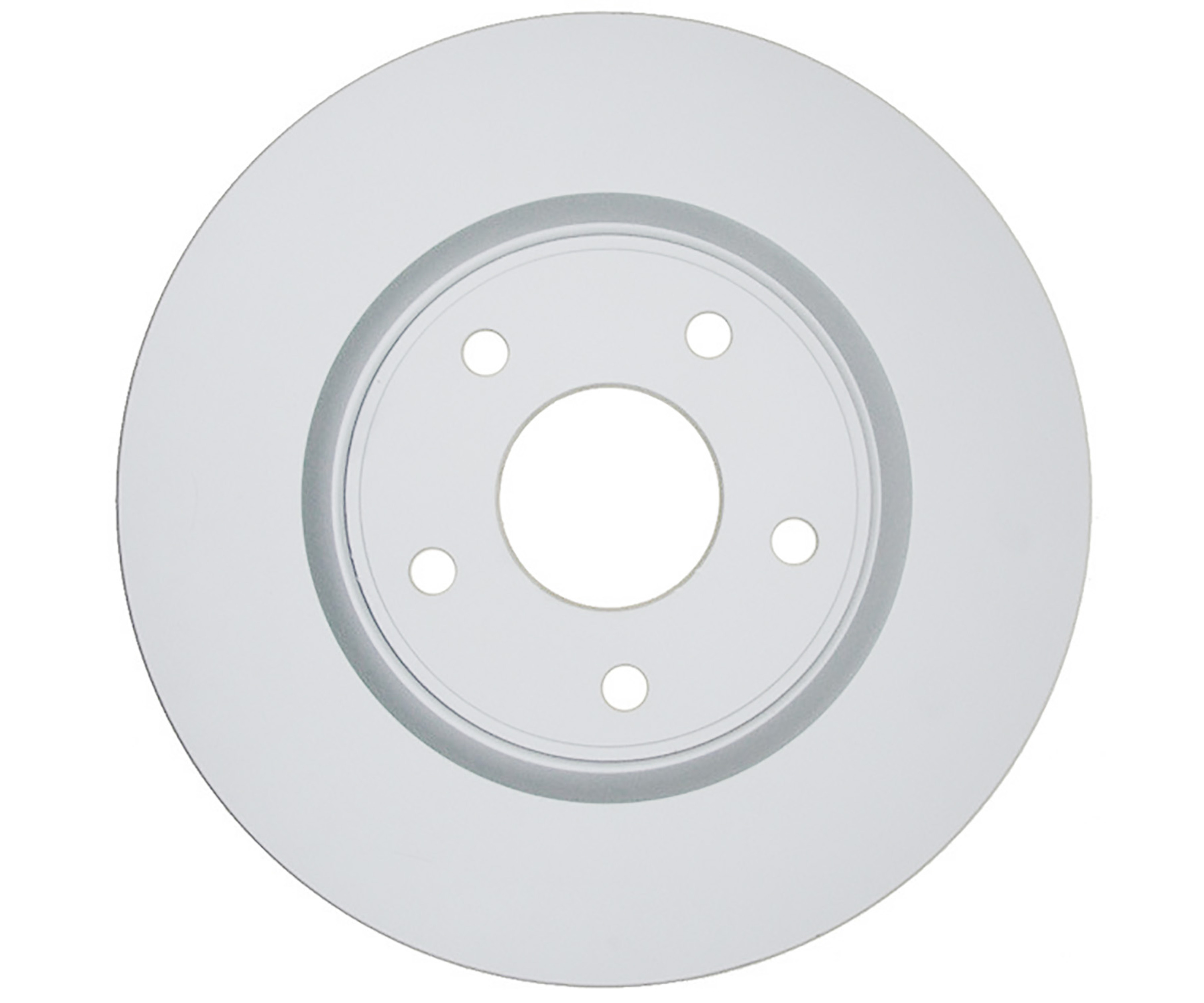

| Part Terminology | Disc Brake Rotor |
