| Overall Height | 38.25 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 22.4 |
| Wheel Bolt Circle Diameter | 3.937 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 10.260 |
| Wheel Bolt Hole Diameter, Maximum | 0.566 |
| Wheel Bolt Hole Diameter, Minimum | 3.937 |
| Wheel Bolt Holes, Primary | 5 |
| Brake Rotor Type | Conventional |
| Salability Restrictions | No |
| Height | 38.250 |
| Mounting Bolt Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 1.505 |
| Solid Or Vented Type Rotor | Vented |
| Brake Rotor Thickness, Nominal | 0.945 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Vented |
| Brake Rotor Thickness, Discard | 0.882 |
| Performance Level | Standard Performance |
| Outside Diameter | 260.6 |
| Nominal Thickness | 24 |
| Center Hole Diameter, Minimum | 2.402 |

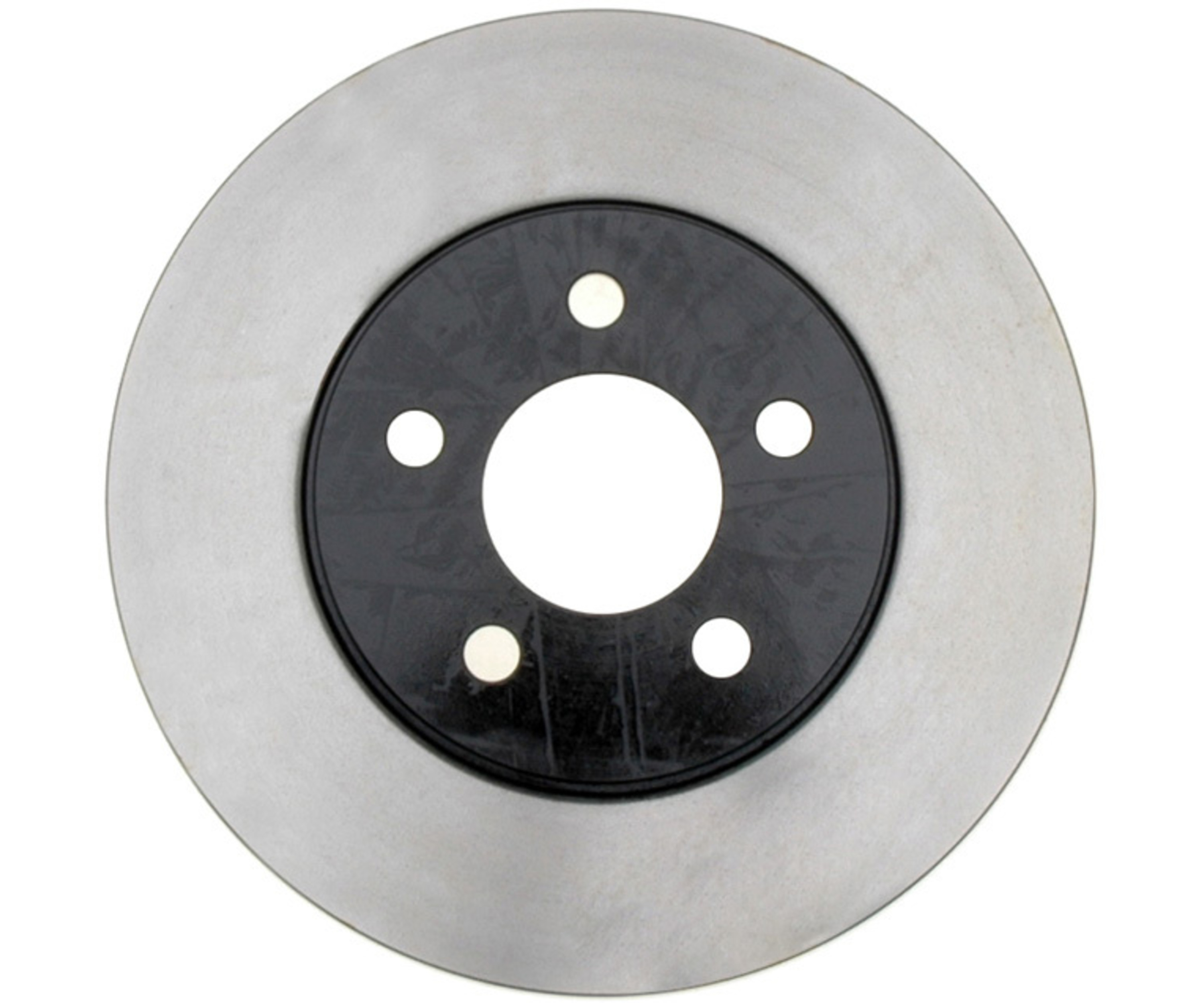

| Part Terminology | Disc Brake Rotor |
