| Overall Height | 4.98 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 36 |
| Wheel Bolt Circle Diameter | 6.142 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 363.000 |
| Wheel Bolt Hole Diameter, Maximum | 13.500 |
| Inside Diameter | 251 |
| Wheel Bolt Hole Diameter, Minimum | 6.142 |
| Wheel Bolt Holes, Primary | 8 |
| Brake Rotor Type | Drum-in-Hat |
| Salability Restrictions | No |
| Height | 126.450 |
| Mounting Bolt Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 126.460 |
| Rotor Braking Surface Machining Type | Uniform |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter, Maximum | 128.130 |
| Brake Rotor Thickness, Nominal | 1.496 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Vented |
| Brake Rotor Thickness, Discard | 1.417 |
| Performance Level | Standard Performance |
| Brake Rotor Diameter, Inner | 251.000 |
| Surface Type | Smooth |
| Outside Diameter | 14.291 |
| Nominal Thickness | 1.496 |
| Center Hole Diameter, Minimum | 128.000 |

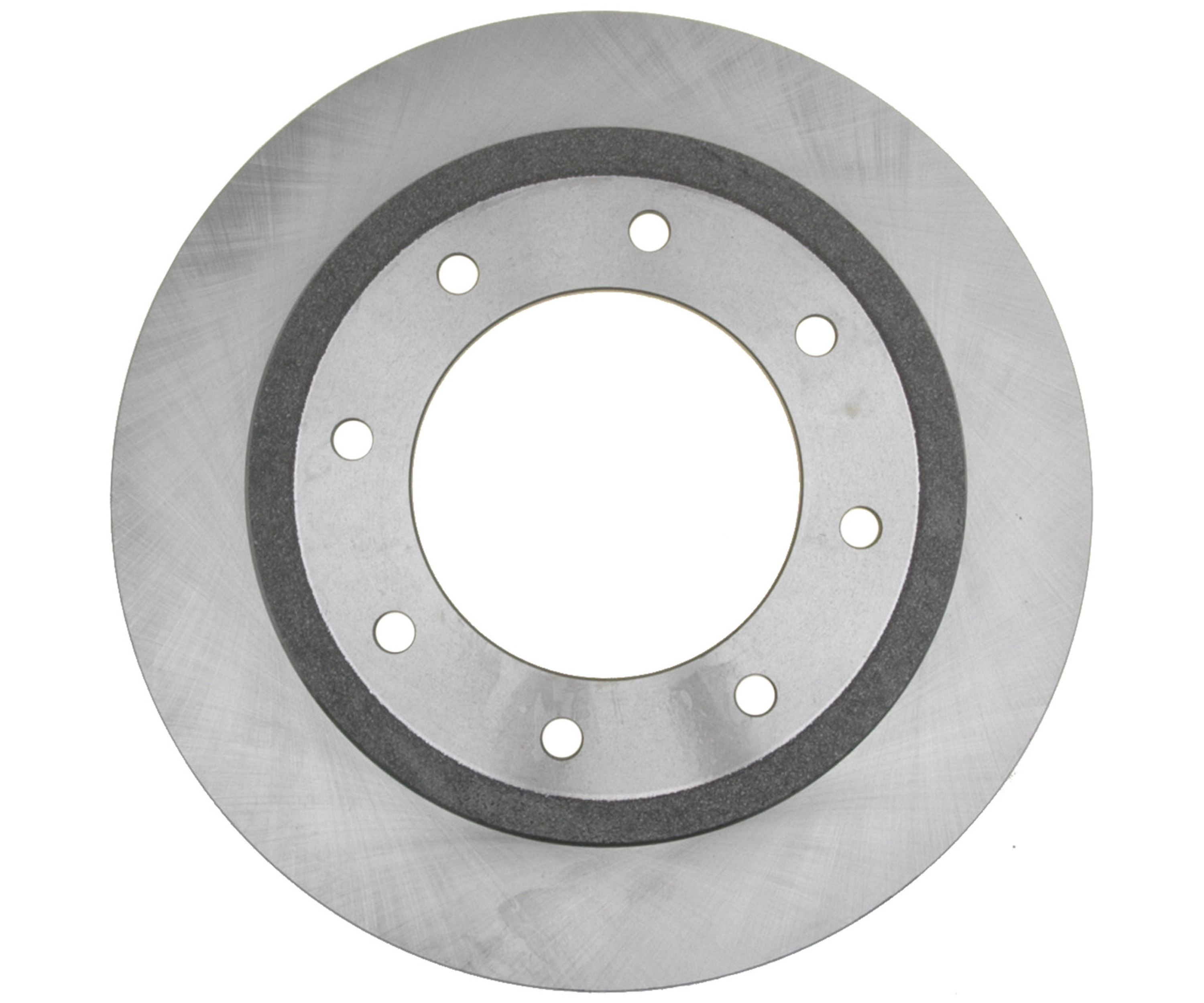

| Part Terminology | Disc Brake Rotor |
