| Overall Height | 1.86 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 27.7 |
| Wheel Bolt Circle Diameter | 5.315 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 12.120 |
| Wheel Bolt Hole Diameter, Maximum | 0.608 |
| Wheel Bolt Hole Diameter, Minimum | 5.315 |
| Wheel Bolt Holes, Primary | 5 |
| Brake Rotor Type | Conventional |
| Salability Restrictions | No |
| Height | 47.100 |
| Mounting Bolt Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 1.855 |
| Solid Or Vented Type Rotor | Vented |
| Brake Rotor Thickness, Nominal | 1.185 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Vented |
| Brake Rotor Thickness, Discard | 1.091 |
| Performance Level | Standard Performance |
| Outside Diameter | 307.85 |
| Nominal Thickness | 30.1 |
| Center Hole Diameter, Minimum | 3.638 |

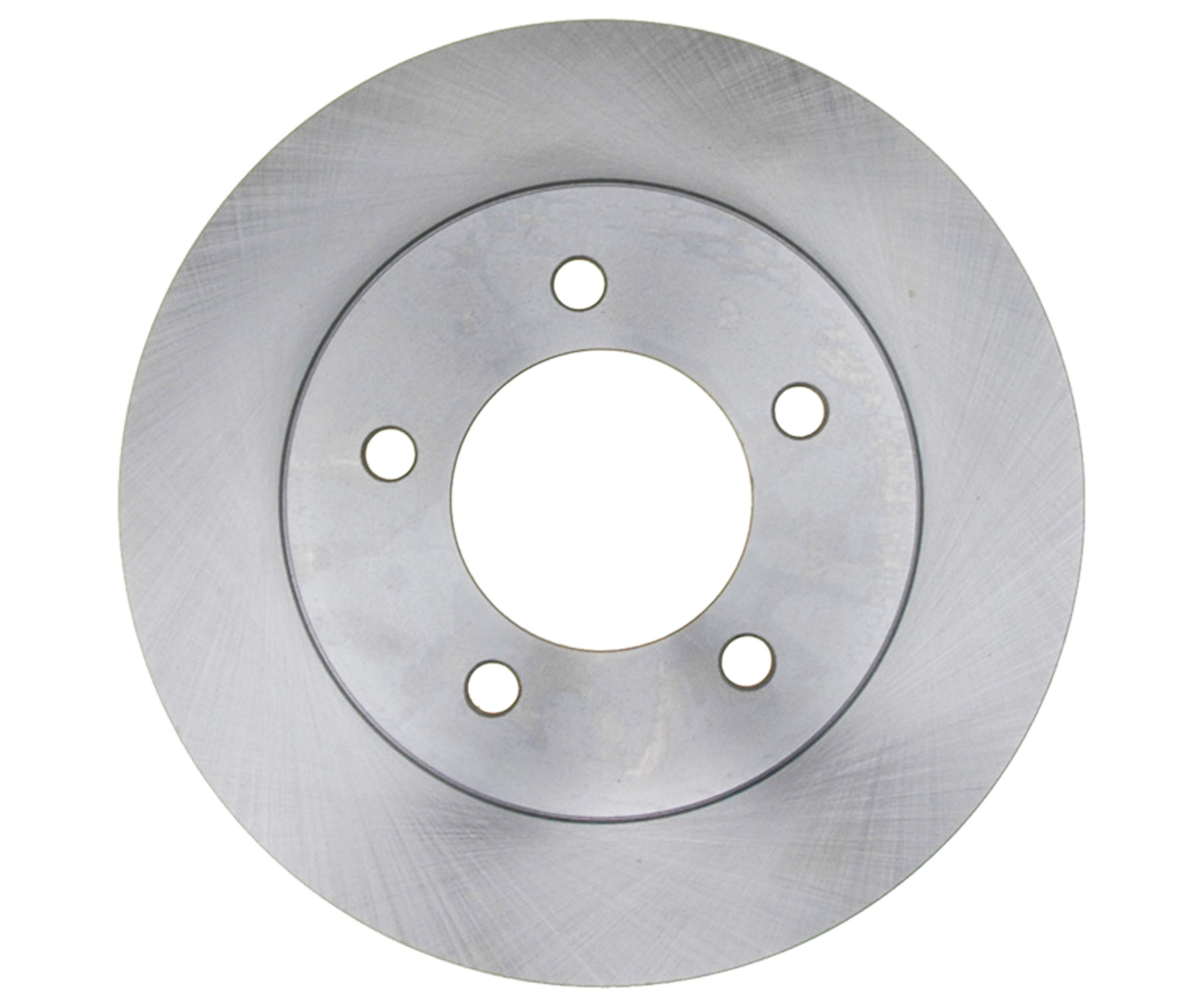

| Part Terminology | Disc Brake Rotor |
