| Overall Height | 86.75 |
| Height, Overall | 3.416 |
| Discard Thickness | 27.5 |
| Wheel Bolt Circle Diameter | 6.500 |
| Solid Or Vented Type Rotor | Vented |
| Heavy Duty Supplier | Yes |
| Center Hole Diameter, Maximum | 4.628 |
| Brake Rotor Thickness, Nominal | 1.147 |
| Brake Rotor Diameter, Outer | 12.989 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Vented |
| Brake Rotor Thickness, Discard | 1.083 |
| Wheel Bolt Hole Diameter, Maximum | 0.643 |
| Performance Level | Standard Performance |
| Wheel Bolt Holes, Primary | 8 |
| Brake Rotor Type | Drum-in-Hat |
| Salability Restrictions | No |
| Height | 86.750 |
| Outside Diameter | 329.9 |
| Mounting Bolt Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Nominal Thickness | 1.147 |

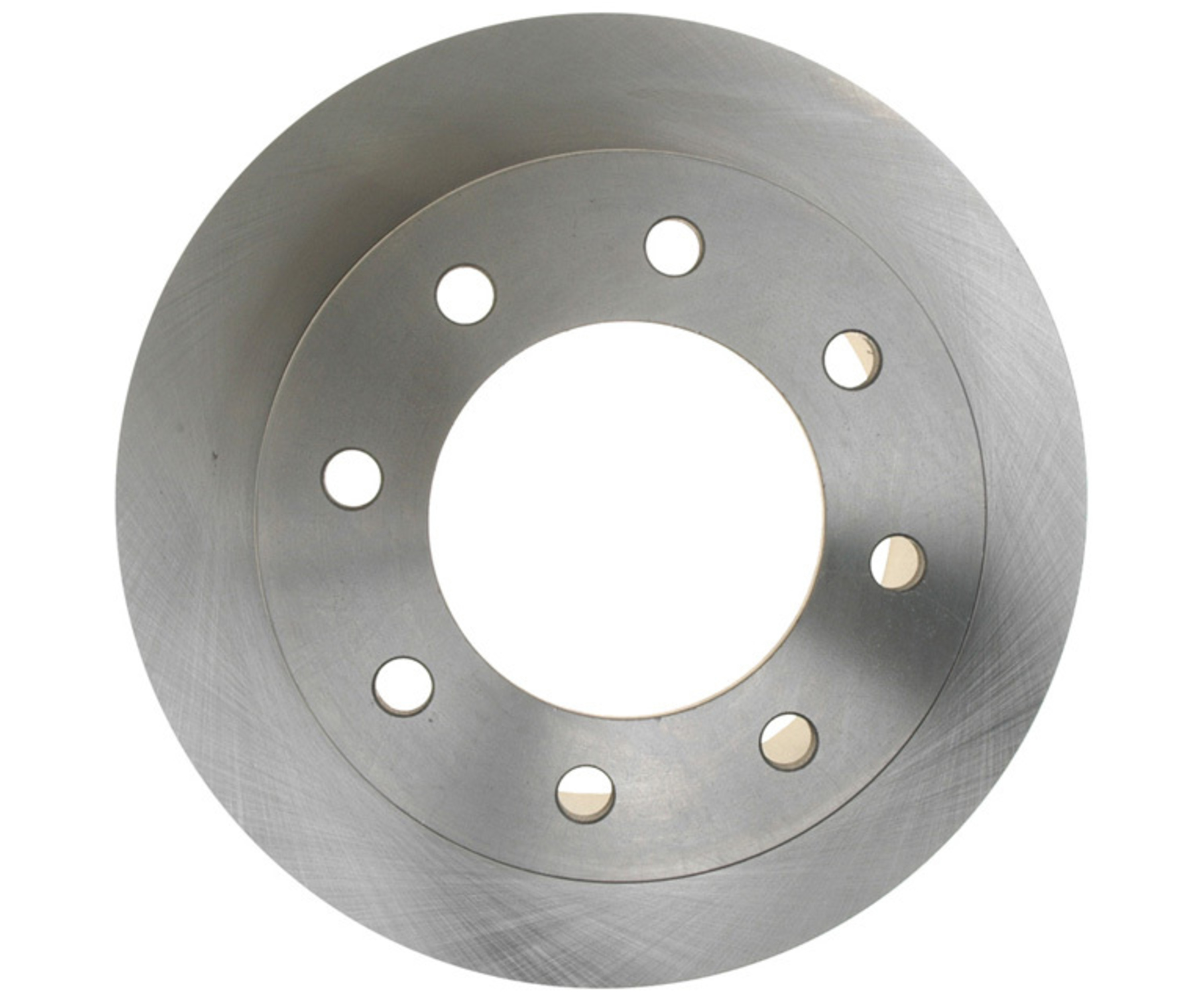

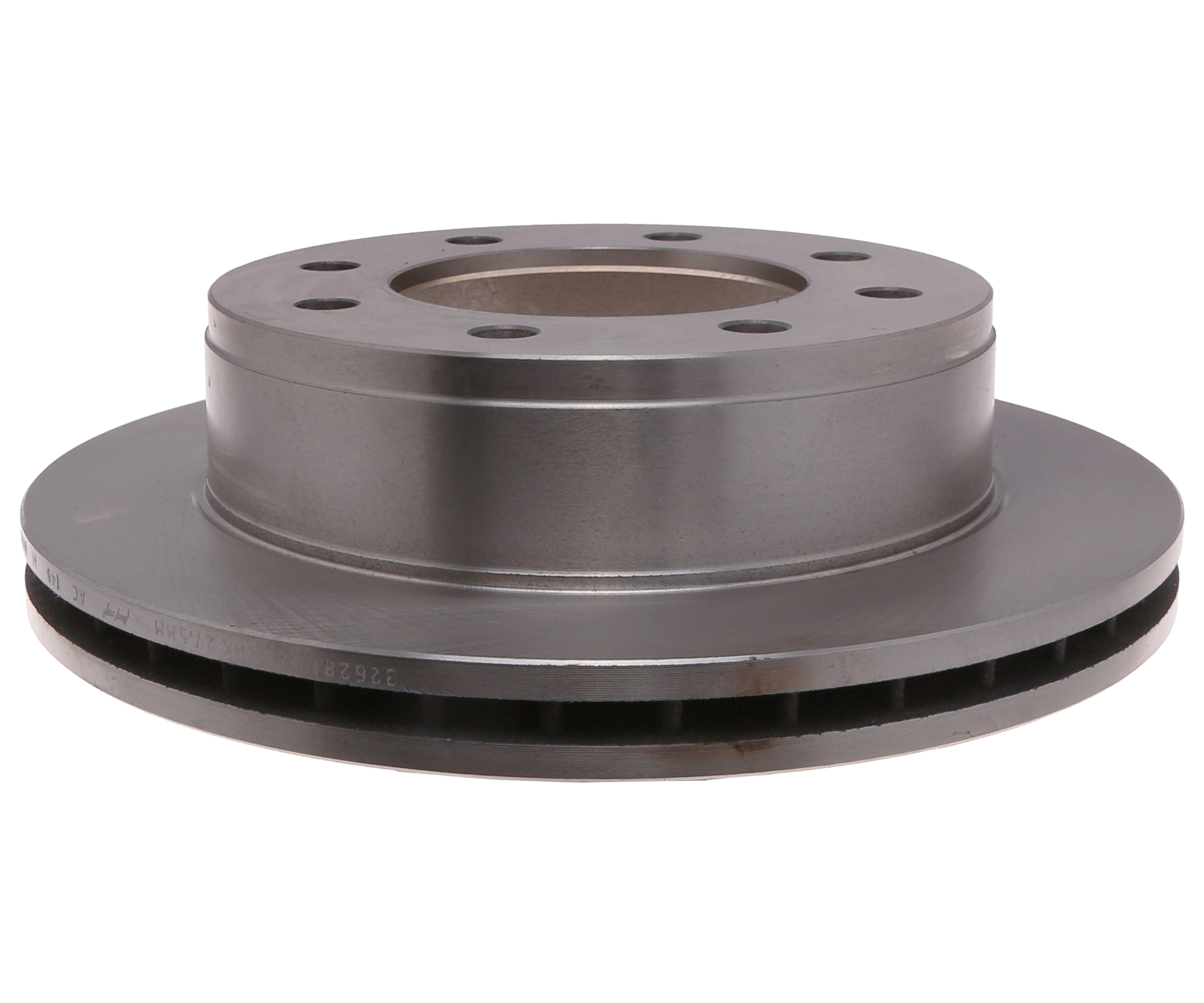

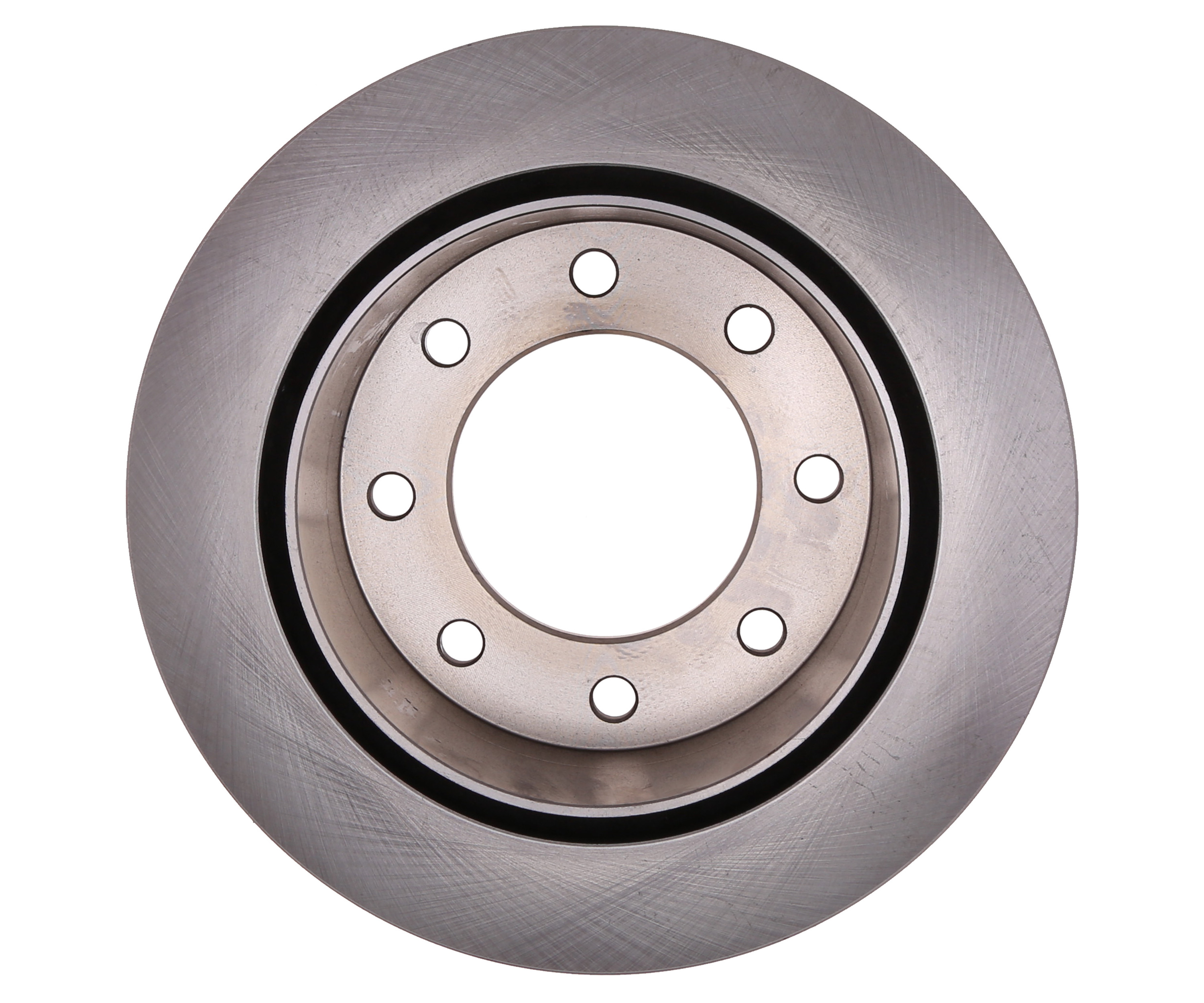

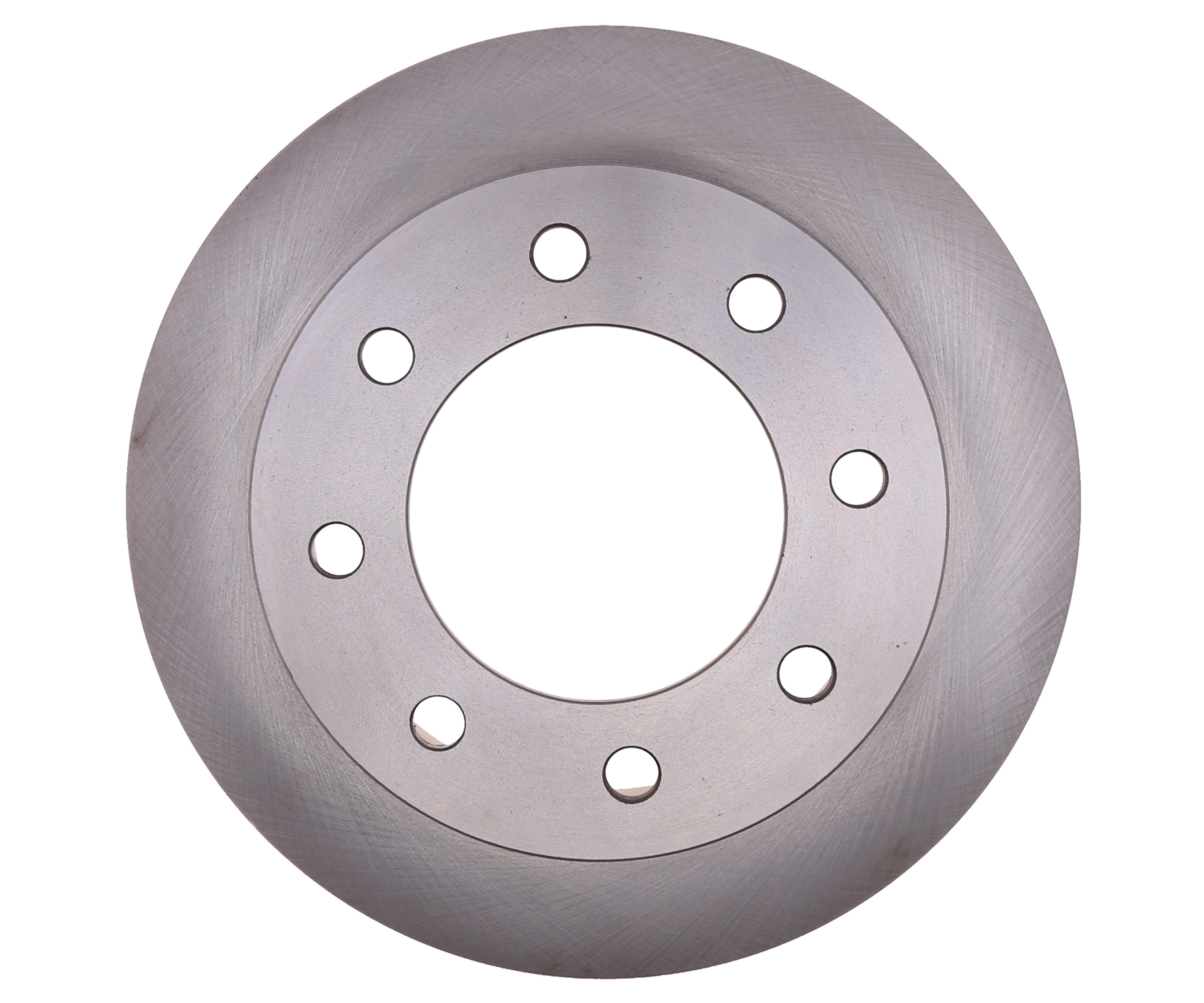

| Part Terminology | Disc Brake Rotor |
