| Overall Height | 3.42 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 26.5 |
| Wheel Bolt Circle Diameter | 6.500 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 13.000 |
| Wheel Bolt Hole Diameter, Maximum | 0.645 |
| Wheel Bolt Hole Diameter, Minimum | 0.625 |
| Wheel Bolt Holes, Primary | 8 |
| Brake Rotor Type | Drum-in-Hat |
| Salability Restrictions | No |
| Height | 3.420 |
| Mounting Bolt Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 3.420 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter, Maximum | 4.637 |
| Brake Rotor Thickness, Nominal | 1.142 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Vented |
| Brake Rotor Thickness, Discard | 1.043 |
| Performance Level | Standard Performance |
| Outside Diameter | 330.2 |
| Nominal Thickness | 29 |
| Center Hole Diameter, Minimum | 4.632 |

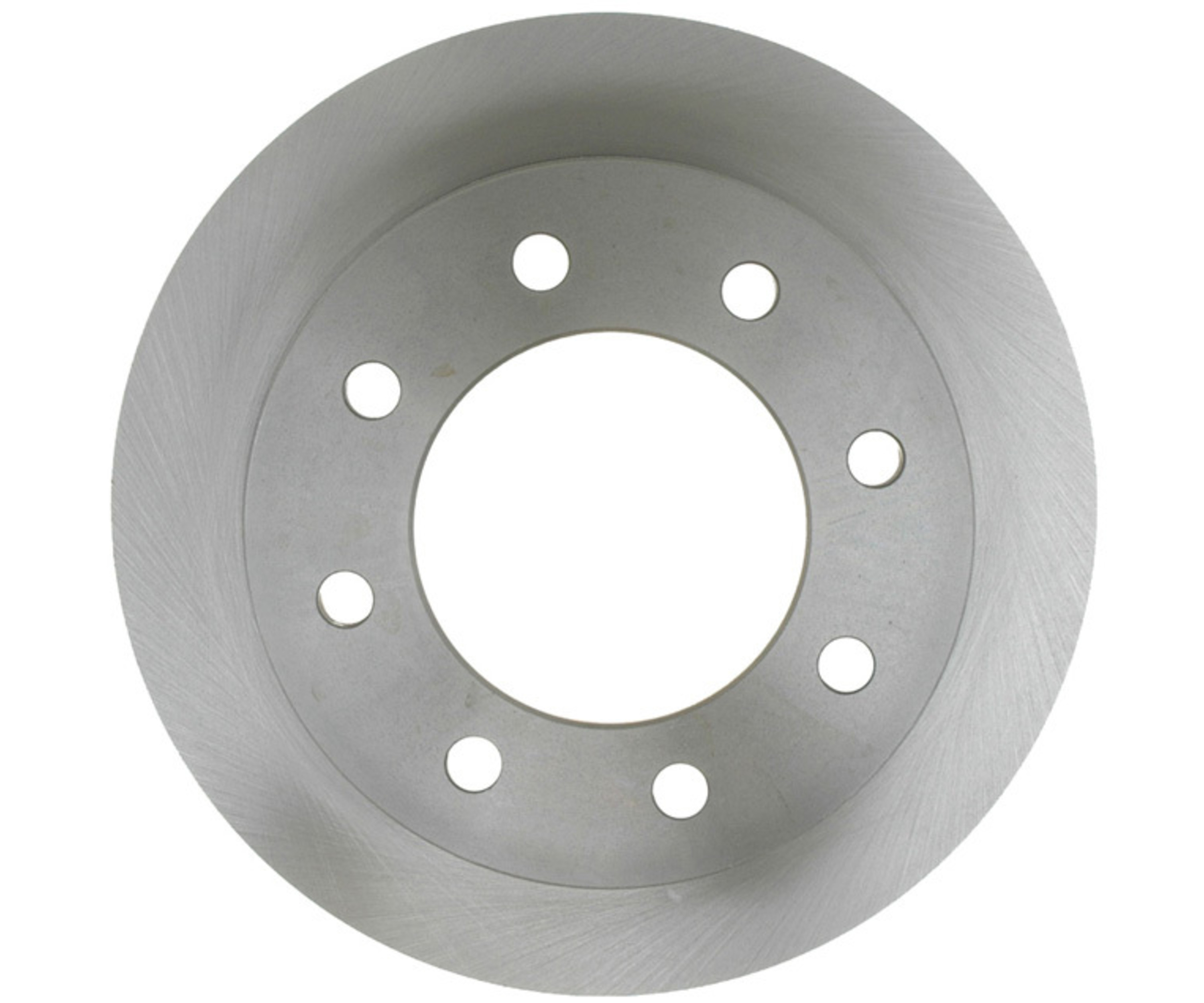

| Part Terminology | Disc Brake Rotor |
