Product Details
expand_less
| Extended Bumper Stop |
No |
| Bloqueo hidráulico extendido |
No |
| Cylinder Outside Diameter |
60.5 |
| Tipo de Montura Inferior |
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Most Popular Make / Model |
Chevrolet K1500 |
| Body Color |
Silver |
| Extended Length (INCH) |
20.83 |
| Compressed Bumper Stop |
No |
| Spring Included |
No |
| Tope de rebote extendido |
No |
| Body Diameter |
2.38 |
| Extended Length |
529.1 |
| Suspension Shock Absorber Type |
Telescopic |
| Cubre polvo |
Yes |
| Shock Absorber Body End Measuring Point |
Center of Loop |
| Boot Included |
Yes |
| Lower Mount Type |
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Bearing Plate Included |
No |
| Color |
Silver |
| Air Ride Suspension |
No |
| Internal Construction Type |
Tri Tube |
| Max Year Covered |
2000 |
| Diámetro del Tubo de Reserva |
2.380 |
| Upper Mount Type |
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Lower Mount Code |
L1 |
| Tope de rebote comprimido |
No |
| Total Part VIO |
2374148 |
| Dust Shield Color |
Red |
| Min Year Covered |
1968 |
| Travel Length (INCH) |
7.15 |
| Adjustable Rebound |
Yes |
| New Or Remanufactured |
New |
| Lower Mounting Code |
L1 |
| Parts Pack |
P00976,P00816 |
| Adjustable Damping |
Yes |
| Upper Mounting Description |
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Upper Mounting Code |
L1 |
| Gas Charged |
Yes |
| Rod Diameter |
18 |
| Cylinder Color |
Silver |
| Spring Isolators Included |
No |
| Compressed Length (INCH) |
13.68 |
| Most Popular Year |
1998 |
| Shock Absorber Rod End Measuring Point |
Center of Loop |
| Extended Hydraulic Lockout |
No |
| Adjustable Dampening |
Yes |
| Accesorio(s) |
P00976,P00816 |
| Shock Stroke |
181.6 |
| Shaft Material |
Nitro-Carburized Steel |
| Spring Seat Included |
No |
| Dust Shield Included |
Yes |
| Air Adjustable |
No |
| Finish |
Painted |
| Internal Rebound Bumper |
No |
| Part Description |
Shock Absorber |
| Compressed Length |
347.5 |
| Parts Pack(s) |
P00976,P00816 |
| Product Grade |
Premium |
| Mounting Hardware Included |
Yes |
| Coil Over Springs Included |
No |
| Tipo de Montura Superior |
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Reserve Tube Diameter (INCH) |
2.38 |
| Type |
Telescopic |
| Body Material |
Steel |
| Lower Mounting Description |
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Reserve Tube Diameter |
2.38 |
| Travel Length |
7.15 |
| Cylinder Material |
Steel |
| Upper Mount Code |
L1 |
| Dust Shield |
Yes |
| Grade Type |
Performance |
| Part Terminology |
Suspension Shock Absorber |
Features & Benefits
expand_more

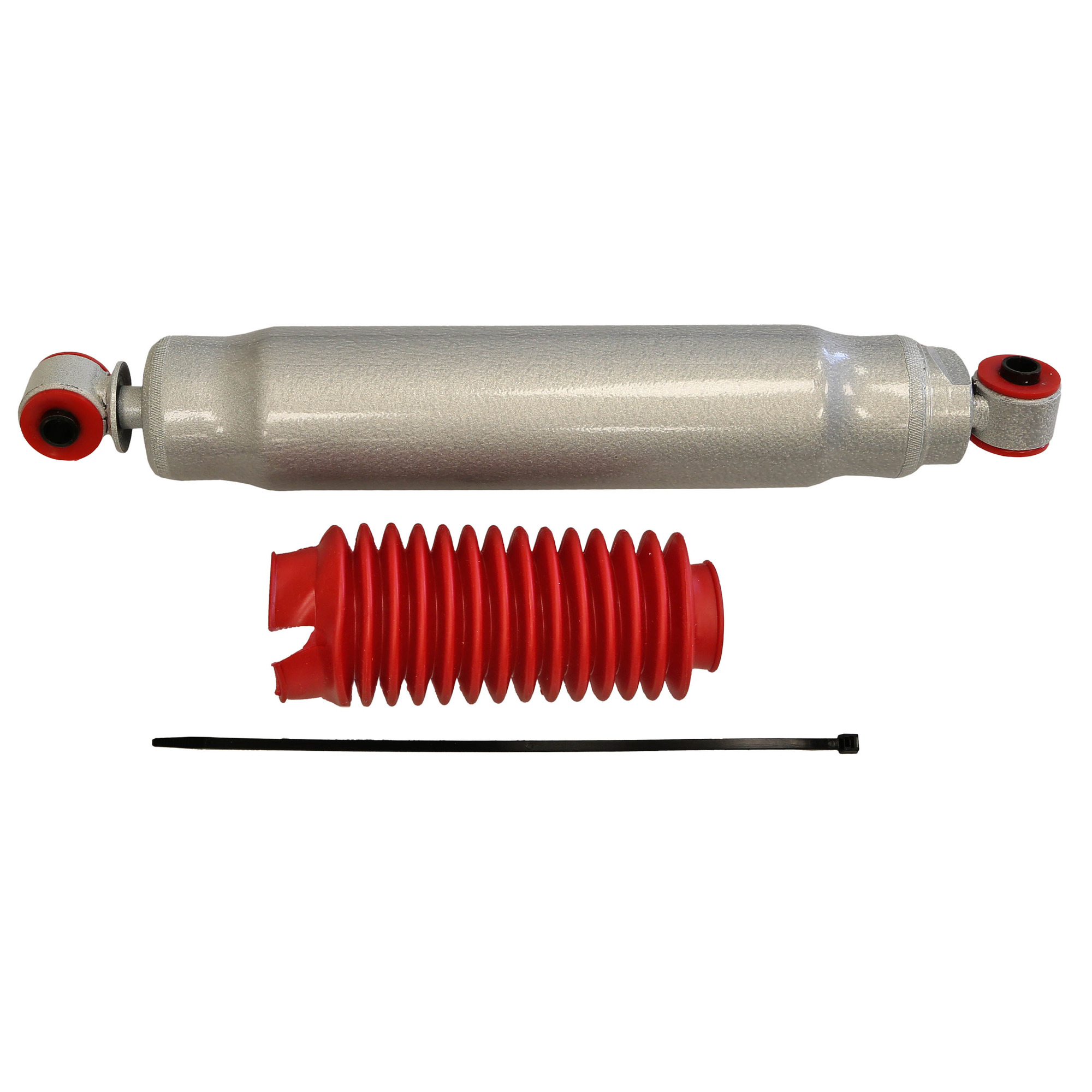

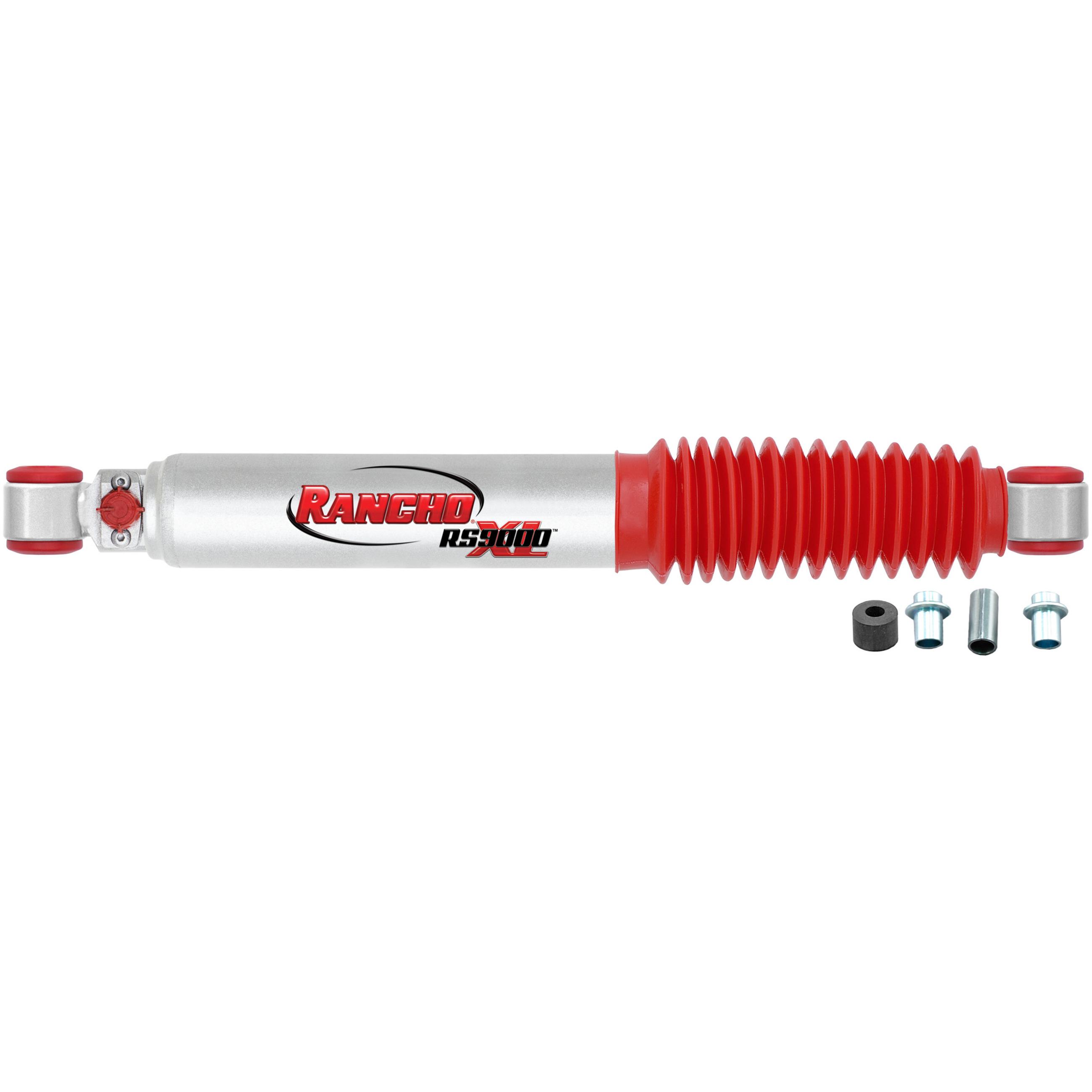

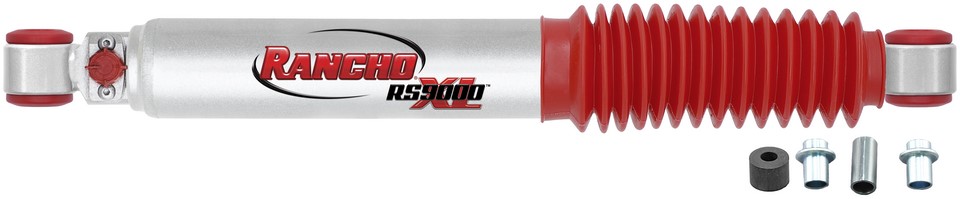

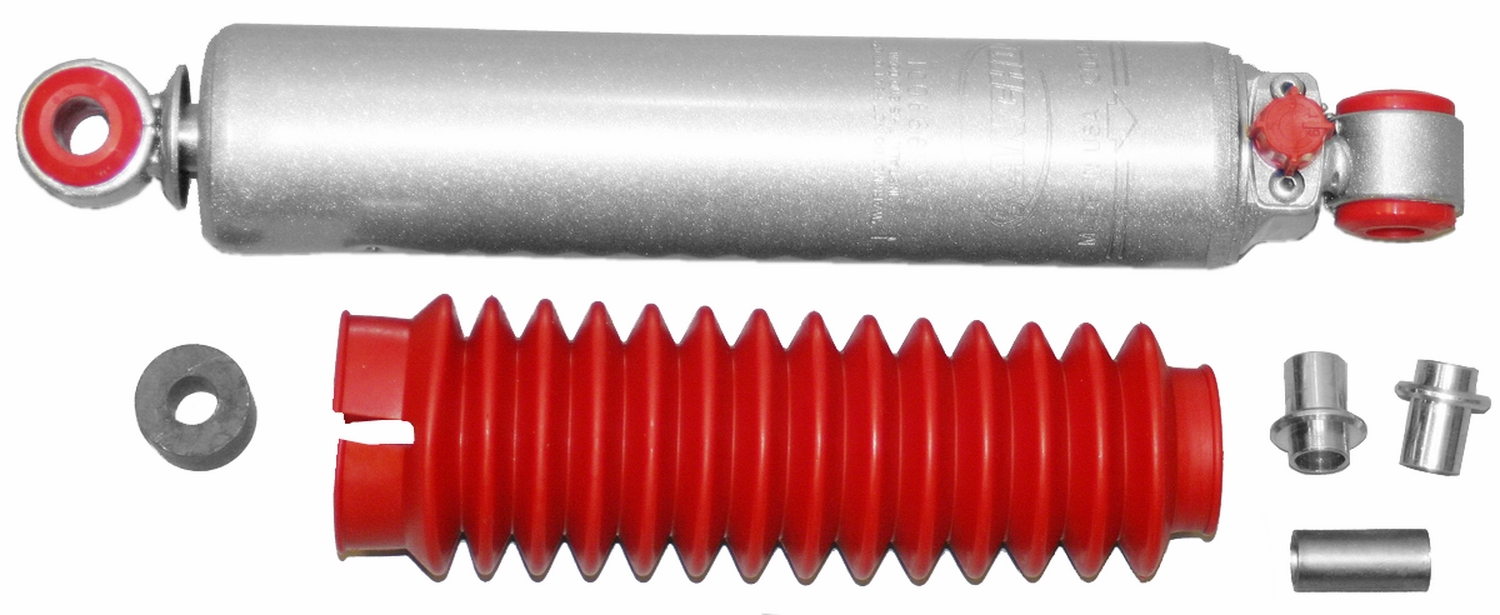

Get premium control and performance with Rancho RS9000®XL shocks. Ideal for on- and off-road use, towing and more, the adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations.
Application Summary
expand_more
1969-1974 Chevrolet K10 Pickup (Front); 1969-1974 Chevrolet K20 Pickup (Front); 1969-1994 Chevrolet Blazer (Front, Front Outer) (Drive: 4WD); 1975-1986 Chevrolet K5 Blazer (Front, Front Outer) (Drive: 4WD); 1975-1986 Chevrolet K10 (Front, Front Outer); 1969-1986 Chevrolet K10 Suburban (Front, Front Outer); 1988-1999 Chevrolet K1500 (Front); 1975-1986 Chevrolet K20 (Front, Front Outer); 1969-1986 Chevrolet K20 Suburban (Front, Front Outer); 1988-2000 Chevrolet K2500 (Front); 1992-1999 Chevrolet K2500 Suburban (Front); 1977-1986 Chevrolet K30 (Front); 1988-2000 Chevrolet K3500 (Front); 1995-2000 Chevrolet Tahoe (Front) (Liter: 5.7 & Drive: 4WD); 1987 Chevrolet V10 (Front Outer, Front); 1987-1988 Chevrolet V10 Suburban (Front, Front Outer); 1989-1991 Chevrolet V1500 Suburban (Front, Front Outer); 1987 Chevrolet V20 (Front, Front Outer); 1987-1988 Chevrolet V20 Suburban (Front Outer, Front); 1989-1991 Chevrolet V2500 Suburban (Front, Front Outer); 1987-1988 Chevrolet V30 (Front); 1989-1991 Chevrolet V3500 (Front); 1969-1974 GMC K15/K1500 Pickup (Front); 1968-1974 GMC K15/K1500 Suburban (Front); 1969-1974 GMC K25/K2500 Pickup (Front); 1968-1974 GMC K25/K2500 Suburban (Front); 1979-1999 GMC K1500 (Front, Front Outer); 1979-1986 GMC K1500 Suburban (Front, Front Outer); 1979-2000 GMC K2500 (Front, Front Outer); 1979-1998 GMC K2500 Suburban (Front, Front Outer); 1979-2000 GMC K3500 (Front); 1987-1991 GMC V1500 Suburban (Front Outer, Front); 1987-1991 GMC V2500 Suburban (Front Outer, Front); 1987-1991 GMC V3500 (Front); 1970-1991 GMC Jimmy (Front, Front Outer) (Drive: 4WD); 1975-1978 GMC K15 (Front); 1975-1978 GMC K15 Suburban (Front); 1975-1978 GMC K25 (Front); 1975-1978 GMC K25 Suburban (Front); 1977-1978 GMC K35 (Front); 1987 GMC V1500 (Front, Front Outer); 1987 GMC V2500 (Front, Front Outer); 1992-2000 GMC Yukon (Front) (Liter: 5.7 & Drive: 4WD)
