| Overall Height | 6 |
| Ignition Type | Electronic |
| Primary Resistance | 0.6 |
| Turns Ratio | 100:1 |
| Mounting Bracket Included | No |
| Prop 65 - Short Label | warning.jpg |
| Mount Type | Circular Bracket |
| Voltage | 12 |
| Prop 65 (C, R or CR) | CR |
| Coil Type | Yes |
| Secondary Resistance | 9000 |
| Coil Internal Construction | Oil-Filled |
| Finish | Semi-gloss |
| Coil Wire Attachment | Female/Socket |
| Color | Black |
| Primary Inductance | 6.25 |
| Mounting Hardware Included | No |
| Ballast Resistor Included | No |

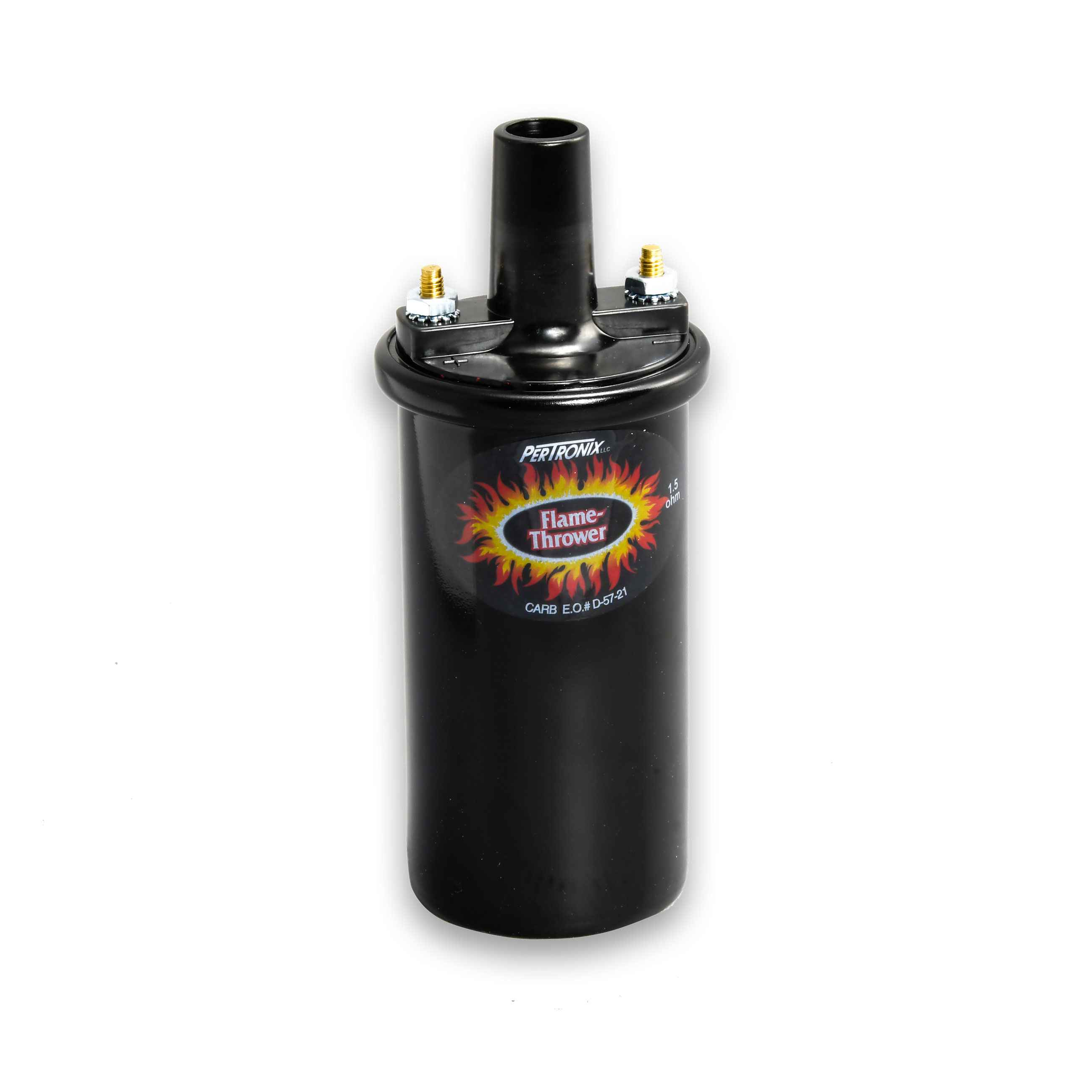

| Title | FLAME-THROWER II COIL. 45,000-VOLT RATED WITH 0.6-OHMS OF RESISTANCE. BLACK OIL FILLED CANISTER STYLE. |
| Maximum Diameter | 2.15 |
| Maximum Voltage | 45000 |
| Coil Shape | Round |
| Prop 65 Yes/No | Yes |
| Requires External Resistor | No |
| Mounting Position | Vertical |
| Coil Wire Included | No |
| California Proposition 65 | WARNING: This product can expose you to chemicals including chromium, which is know to the State of California to cause cancer or birth defects of other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturers Current Application Guide, the CARB EO, and Installation Instructions. |
| Emission Description | This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the appropriate vehicle per the Manufacturers Application Guide and Installation Instructions. |
| Grade Type | Performance |
| Part Terminology | Ignition Coil |
