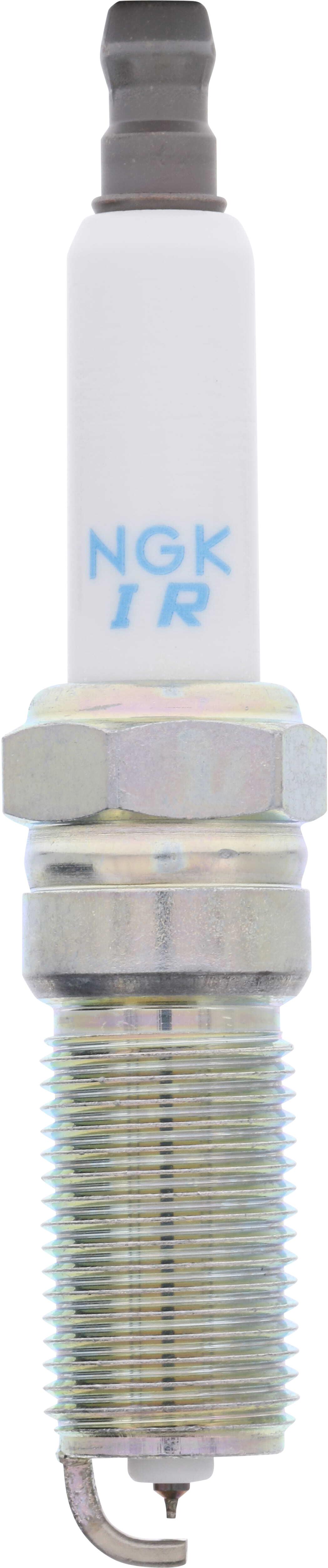

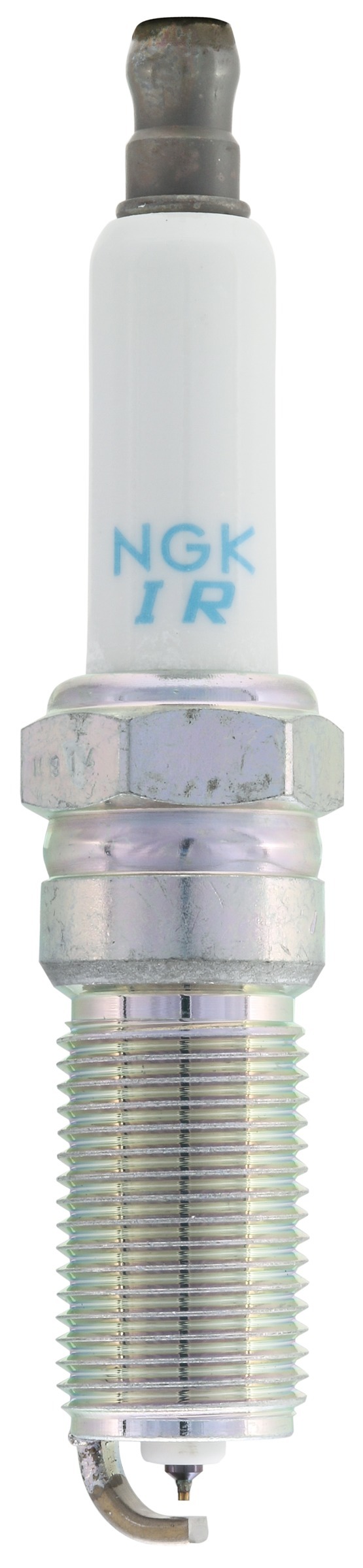

NGK Laser Iridium Spark Plug
Part # 96393 | Line Code: NGK
brandNameImage
brandNameImage

$19.99
$19.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Thread Size M14 - 1.25
Seat Type Tapered
Resistor Type Yes
Gap Size 0.9
Electrical Terminal Type Non-removable Nut
Reach 25.0
Thread Diameter 14.0
Hex Size 5/8" (16mm)
Grade Type Performance
Washer Included No
Ground Electrode Quantity 1
Insulator Material Ceramic
Center Electrode Tip Material Iridium
Manufacturer Heat Range 7
Ground Electrode Tip Design Standard
Ground Electrode Core Material Nickel Core
Center Electrode Core Material Copper Core
Insulator Height 52.5
Resistance 5000.00
Ground Configuration J-Gap
Skirt Length 0.0
Material Grade Iridium Platinum
Metallurgy Iridium Platinum
Stock Number 96393
Part Number ILTR7Q9
Heavy Duty Supplier Yes
Alliance Keywords spark plug, bougie d'allumage, bougie
Short Style Spark Plug No
Service Number ILTR7Q9
Part Terminology Spark Plug

Features & Benefits
expand_more

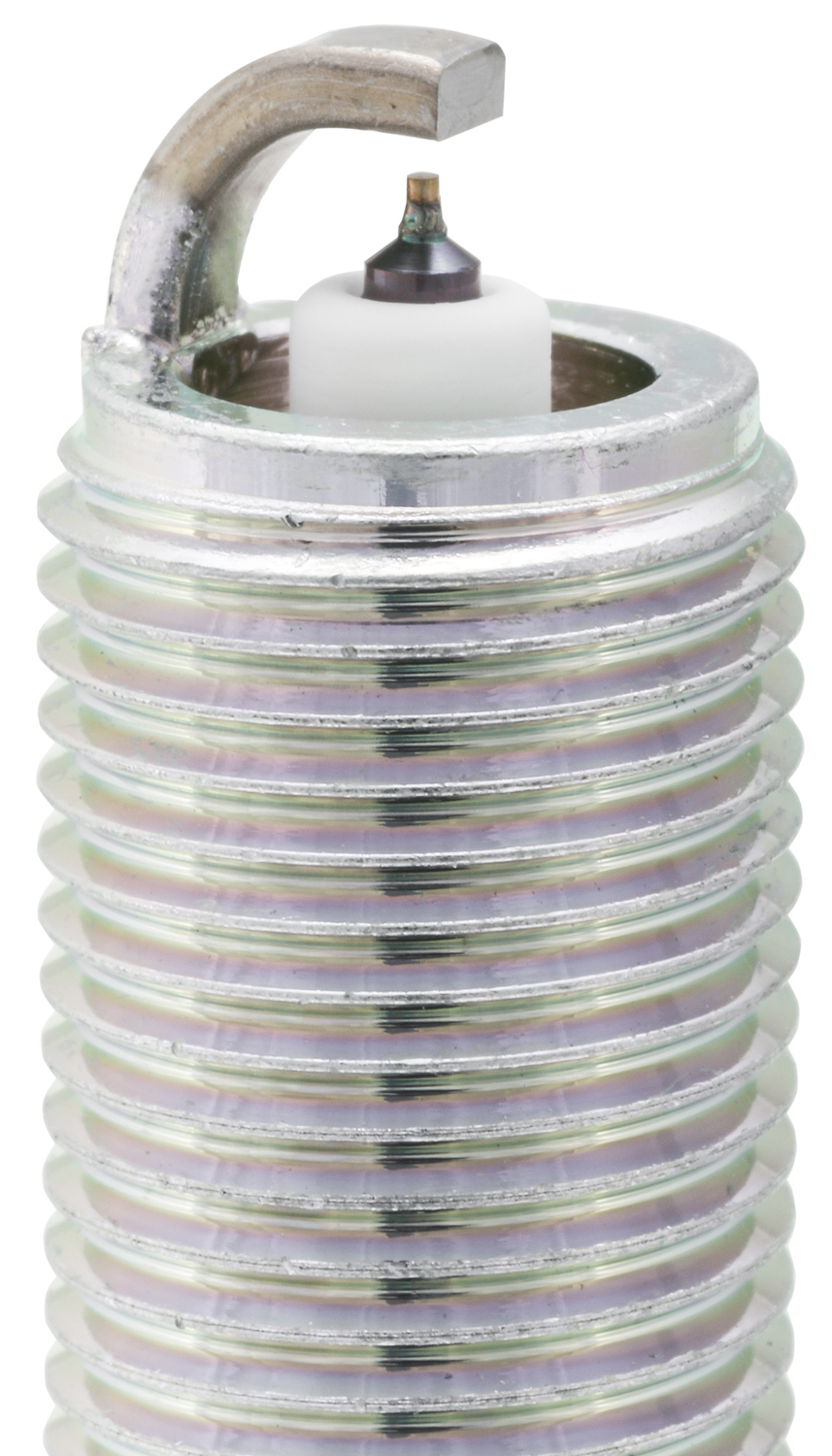

NGK Laser Iridium spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.

Application Summary
expand_more

Cadillac ATS 2017-2016, CTS 2017-2015, XTS 2017-2016
