Product Details
expand_less
| Seal Type |
Seal |
| Overall Width with Side Lip (Inch) |
1.969 |
| Overall Width with Side Lip |
1.969 |
| Heavy Duty Supplier |
Yes |
| Unit of Dimension |
Inch |
| Housing Bore (MM) |
84.379 |
| Outside Diameter (Inch) |
3.330 |
| Shaft (MM) |
58.420 |
| Inside Diameter |
2.300 |
| Housing Bore (Inch) |
3.322 |
| Helix Type |
Counter-Clockwise-Spiral Lip Design |
| WIDTH (MM) |
10.795 |
| Width |
0.425 |
| Part Description |
Oil Seal |
| Flanged Outside Diameter (Inch) |
3.858 |
| Shaft Diameter |
2.300 |
| Material |
Fluoro-Elastomer |
| Width (inch) |
0.425 |
| Thickness |
0.425 |
| Series |
710900 |
| Type |
79 |
| Flanged Outside Diameter |
98.000 |
| Outside Diameter (MM) |
84.579 |
| Overall Width with Side Lip (MM) |
50.000 |
| Sealing Material |
Fluoro-Elastomer |
| Prop 65 Label (Yes/No) |
No |
| Outside Diameter |
3.330 |
| Flanged Outside Diameter (MM) |
98.000 |
| Grade Type |
Premium |
| Housing Bore |
3.322 |
| Shaft (Inch) |
2.300 |
| Part Terminology |

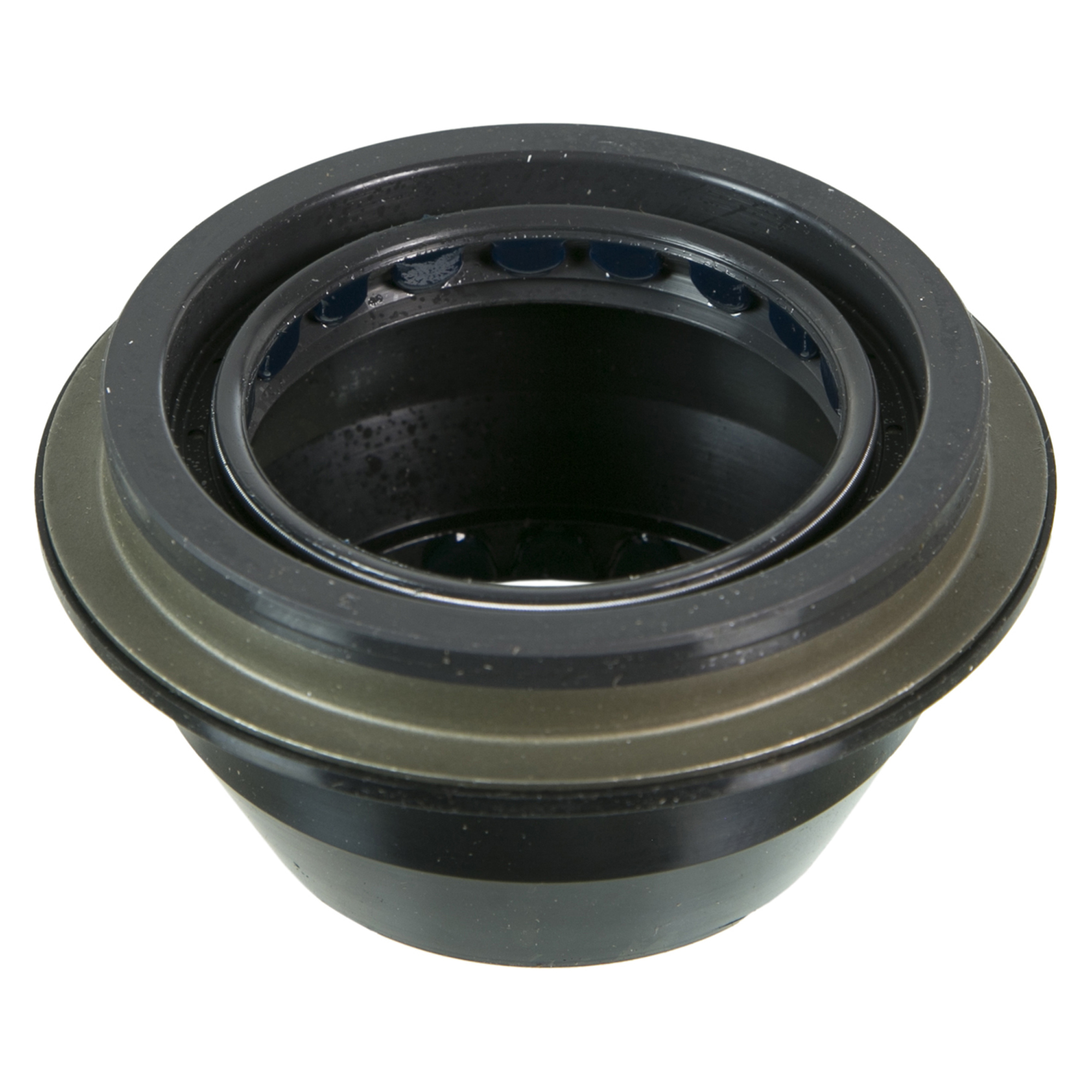

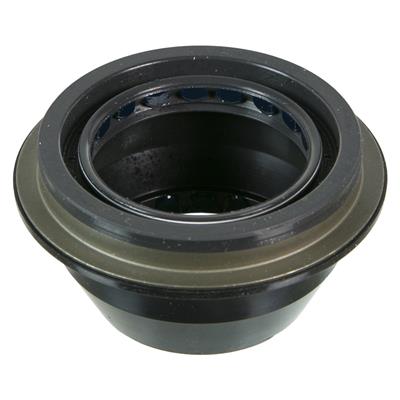

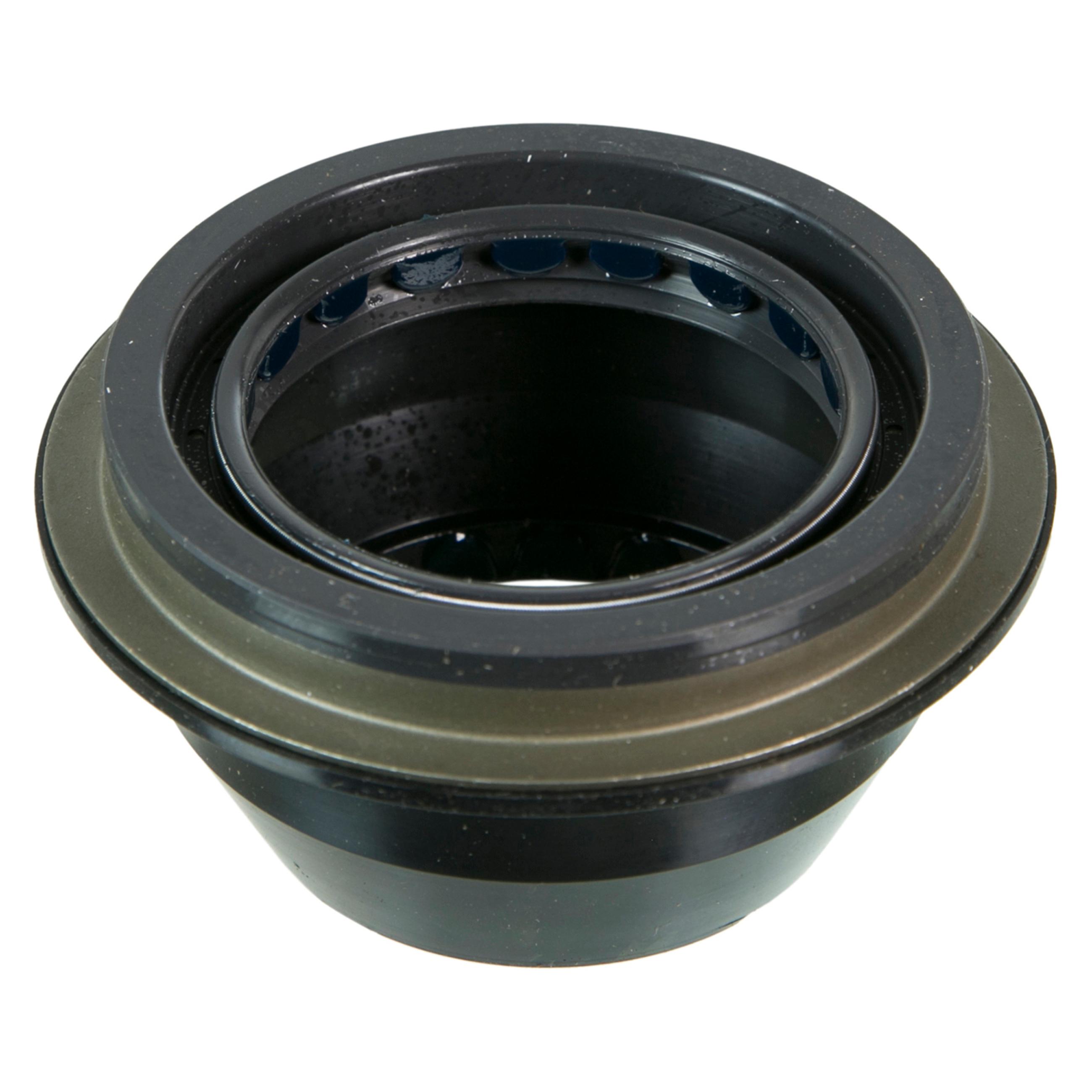

Transfer Case Output Shaft Seal |
Features & Benefits
expand_more
National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 75 years. Our design team keeps pace with the industry and provides advanced solutions for today’s vehicles.
Application Summary
expand_more
2011-2012 Ram 2500 (Rear) (Drive: 4WD / Qualifier: with New Process 271 Transfer Case, 2 Speed, with New Process 273 Transfer Case); 2011-2012 Ram 3500 (Rear) (Drive: 4WD / Qualifier: with New Process 271 Transfer Case, 2 Speed); 2011-2012 Ram 4500 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 271 Transfer Case, 2 Speed); 2011-2012 Ram 5500 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed); 2008-2010 Sterling Truck Bullet 45 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed); 2008-2010 Sterling Truck Bullet 55 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed, with New Process 271 Transfer Case); 2007 Dodge Ram 1500 (Rear) (Drive: 4WD / Qualifier: with New Process 273 Transfer Case, 2 Speed); 2003-2010 Dodge Ram 2500 (Rear) (Drive: 4WD / Qualifier: with New Process 271 Transfer Case, 2 Speed); 2003-2010 Dodge Ram 3500 (Rear) (Drive: 4WD / Qualifier: with New Process 273 Transfer Case, 2 Speed, with New Process 271 Transfer Case); 2008-2010 Dodge Ram 4500 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed, with New Process 271 Transfer Case); 2008-2010 Dodge Ram 5500 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed)
