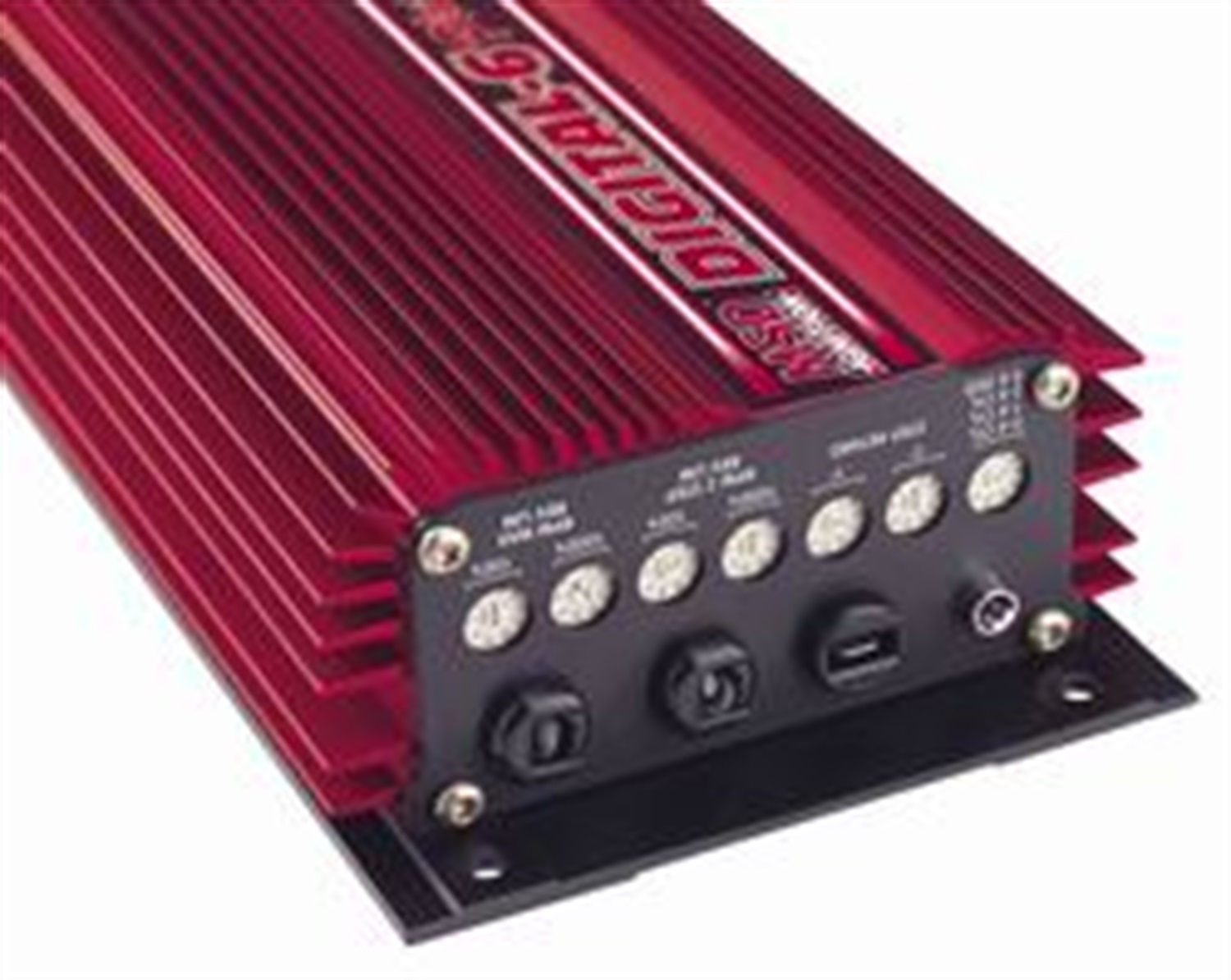

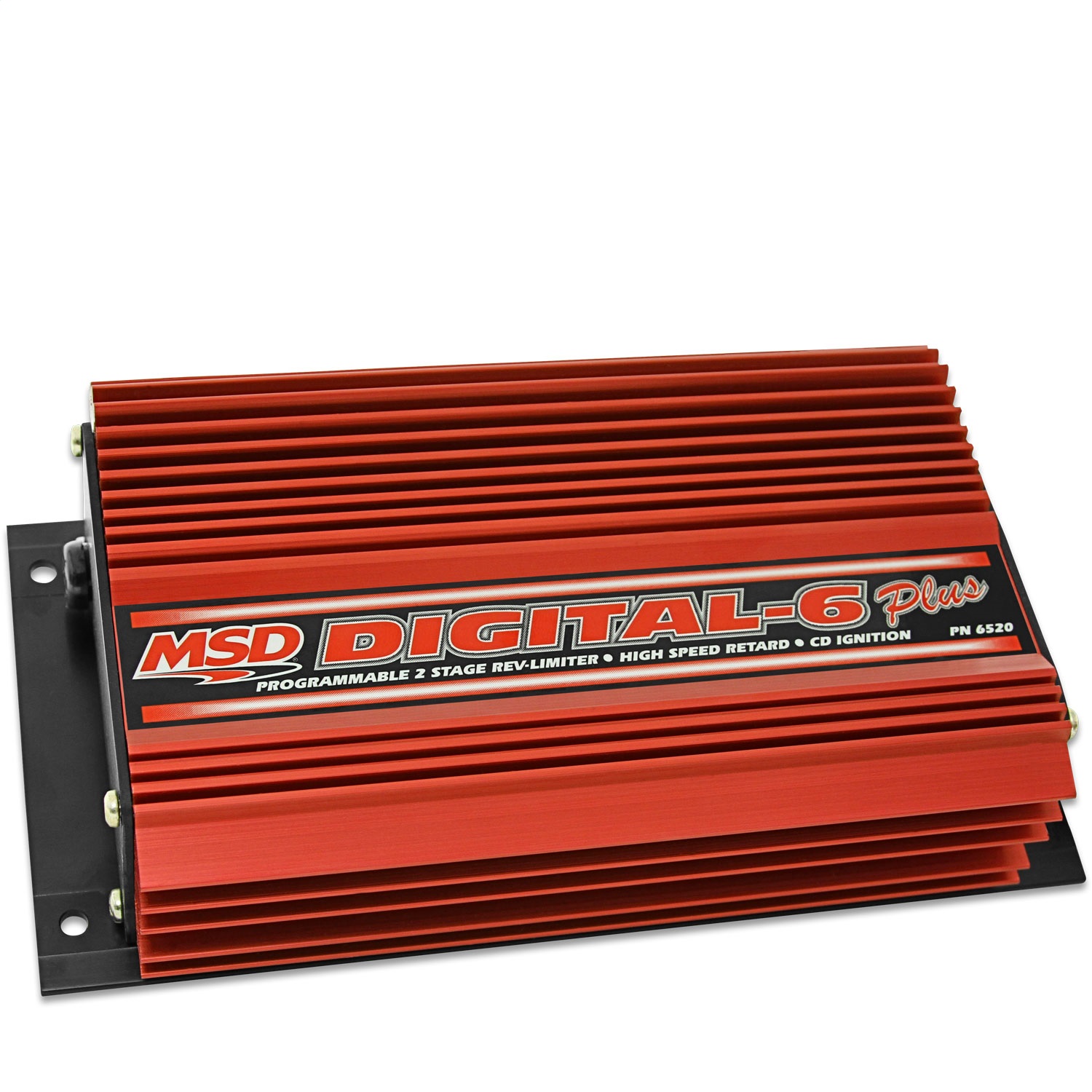

Digital-6 plus ignition controller
Part # 6520 | Line Code: MSD
MSD
MSD

$665.95
$665.95
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Current Draw .7 Amp per 1000 RPM
Emission Code 1
WARNING CA Proposition 65 Yes
WARNING CA Proposition 65 Message WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color Red
Title MSD Digital 6-Plus Ign.Control,Microprocesso
Secondary Voltage 45000
Prop 65 Yes/No Yes
RPM 12500
Prop 65 - Short Label prop65_warning.jpg
Product Type Digital 6-Plus Ignition Control Box
Emission Code Description 50 State Legal, part has EO #
Spark Duration 20 Degree Crankshaft Rotation
Voltage 12-18 V; Negative Ground
Prop 65 (C, R or CR) CR
RPM Range 12,500 RPM with 14.4 Volts
Primary Voltage 535
Voltage Required 12-18 Volts, Negative Ground
Spark Series Duration 20? Crankshaft Rotation
Part Terminology Ignition Control Module

Features & Benefits
expand_more
The MSD digital-6 plus ignition control combines terrific power, digital accuracy and great accessories making it ideal for street and strip applications. Every spark of the digital-6 plus ignition is packed with 135 millijoules of spark energy and 535 primary volts. When used with the MSD blaster HVC Coil (PN 8252) a spark with over 300 milliamps burns across the plug gap for 400 microseconds. Below 3,300 rpm the digital-6 plus produces a series of sparks that burns in the cylinder for up to 20 degrees of crankshaft rotation. This incredible heat ensures combustion to produce great power, quick throttle response, smooth idle and quick starts.
