Product Details
expand_less
| Length B - Inch |
3.62 |
| Bearing Cap Axis 1 Diameter |
27 |
| Length A - Inch |
3.62 |
| Heavy Duty Supplier |
Yes |
| Image |
UJoint_4Plain.tif |
| Lubricateable |
NO |
| Bearing Cap Axis 2 Diameter |
27 |
| Bearing Diameter B - mm |
27.0 |
| Greasable |
No |
| Length A - mm |
91.9 |
| OE Series |
Spicer 1330 |
| Alliance Keywords |
UJoint, Universal Joint, joint universel |
| Part Description |

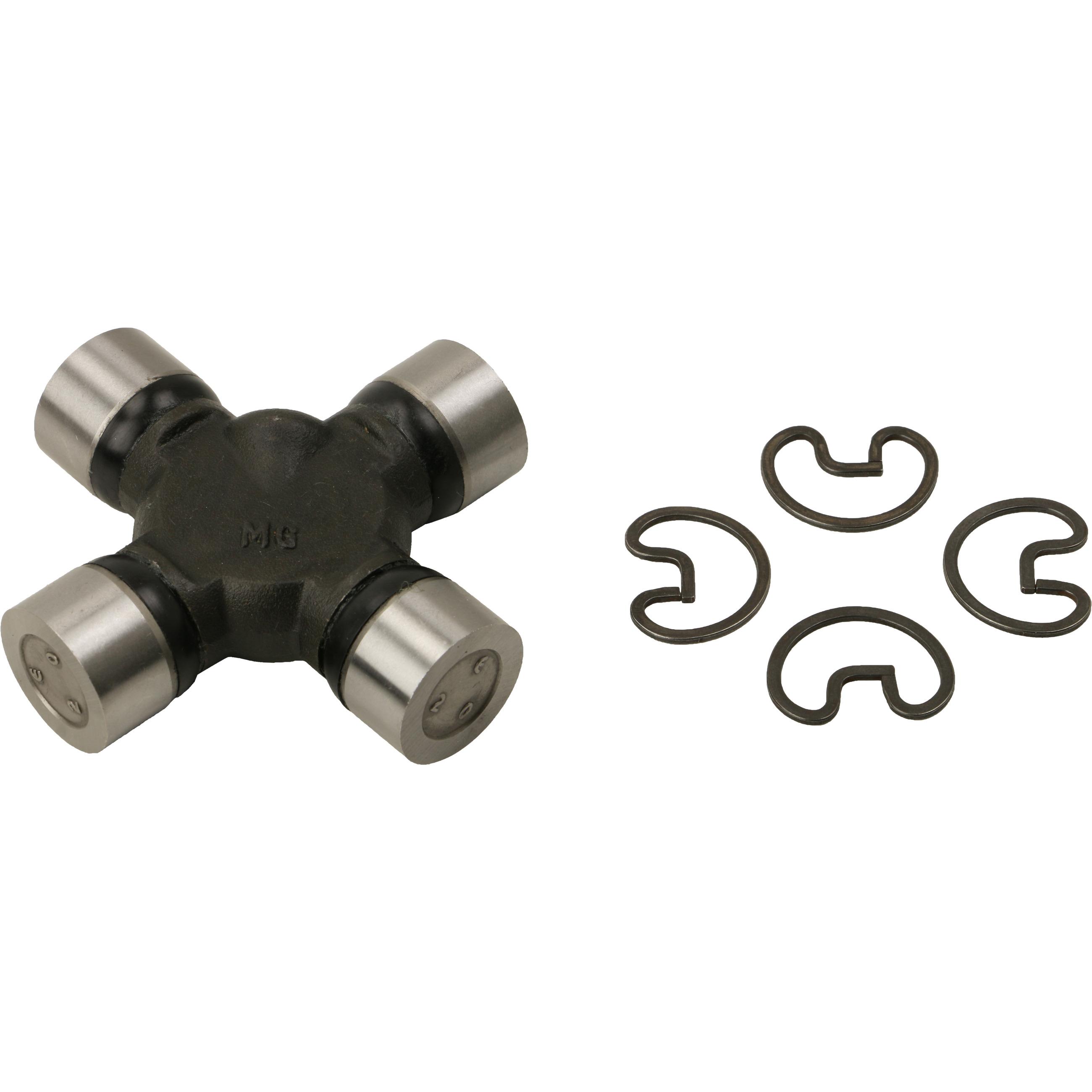

Universal Joint |
| Bearing Diameter A - mm |
27.0 |
| Length B - mm |
91.9 |
| Length Axis 1 |
3.625 |
| Length Axis 2 |
3.625 |
| Bearing Cap Type |
4 Plain Round Bearings |
| Length Measurement A |
Outside of Bearing To Outside of Bearing |
| Bearing Type B |
Round Plain |
| Bearing Diameter B - Inch |
1.063 |
| Length Measurement B |
Outside of Bearing To Outside of Bearing |
| Bearing Type A |
Round Plain |
| Bearing Diameter A - Inch |
1.063 |
| U-Joint Identification |
4 Plain Round Bearings |
| Prop 65 Label (Yes/No) |
No |
| Grade Type |
Premium |
| Part Terminology |
Universal Joint |
Features & Benefits
expand_more
Backed by superior materials and rigorous testing, MOOG Super Strength universal joints deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.
Application Summary
expand_more
2011-2013 Ram 1500 (Rear Driveshaft at Transmission, At Transmission, Rear Driveshaft at Support Bearing, Rear Driveshaft at Rear Axle, At Center Bearing, At Rear Axle); 2011 Ram Dakota (At Transmission, Rear Driveshaft at Transmission, At Rear Axle, At Center Bearing, Rear Driveshaft at Rear Axle); 2009-2012 Suzuki Equator (At Transmission, At Center Bearing, At Rear Axle, Rear Driveshaft at Rear Axle, Rear Driveshaft at Transmission); 1969-1977 Checker Marathon (At Transmission, At Rear Axle); 2006 Isuzu i-280 (At Transmission, At Center Bearing); 2006 Isuzu i-350 (Rear Driveshaft at Transmission); 2007-2008 Isuzu i-290 (At Transmission, At Center Bearing); 2007-2008 Isuzu i-370 (At Transmission, At Center Bearing, Rear Driveshaft at Transmission); 1965-1973 Chrysler Imperial (At Rear Axle, At Transmission, CV at Rear Axle, CV at Transmission); 1965-1967 Chrysler New Yorker (At Transmission, At Rear Axle); 1965-1967 Chrysler Newport (At Rear Axle, At Transmission); 1966 Chrysler Town & Country (At Rear Axle, At Transmission); 1966-1967 Dodge Polara (At Transmission, At Rear Axle); 1998 Dodge B1500 (At Transmission); 1998 Dodge B3500 (At Transmission); 1994-2010 Dodge Ram 1500 ST SLT Laramie Sport (Front Driveshaft - CV at Transfer Case, At Transmission, At Center Bearing, Rear Driveshaft at Transmission, Rear Driveshaft at Support Bearing, At Rear Axle, Rear Driveshaft at Rear Axle, Front Driveshaft at Front Axle); 1999-2003 Dodge Ram 2500 Van (At Transmission, At Rear Axle); 1999 Dodge Ram 3500 Van (At Transmission); 1999-2003 Dodge Ram 1500 Van (At Transmission, At Rear Axle); 1994-2004 Dodge Ram 2500 (Front Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle); 1994-2004 Dodge Ram 3500 (Front Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle); 1966-1967 Dodge Charger (At Transmission, At Rear Axle); 1966-1967 Dodge Coronet (At Transmission, At Rear Axle); 1999-2010 Dodge Dakota (At Transmission, Rear...
