Product Details
expand_less
| Extended Bumper Stop |
No |
| Bloqueo hidráulico extendido |
No |
| Tipo de Montura Inferior |
Loop Bushing & Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Most Popular Make / Model |
Mack GU7 |
| Heavy Duty Supplier |
Yes |
| Body Color |
Black |
| Compressed Bumper Stop |
No |
| Tope de rebote extendido |
No |
| Lower Mounting Type |
Loop Bushing & Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Extended Length |
593.3 |
| Cubre polvo |
Yes |
| Upper Mounting Type |
Loop Bushing & Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Shock Absorber Body End Measuring Point |
Center of Loop |
| Lower Mount Type |
Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Foam Cell Design |
No |
| Color |
Black |
| Internal Construction Type |
Twin Tube |
| Max Year Covered |
2019 |
| Lower Mount Code |
LS53 |
| Upper Mount Type |
Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Tope de rebote comprimido |
No |
| Total Part VIO |
47400 |
| Min Year Covered |
1996 |
| Adjustable Rebound |
No |
| Parts Pack |
None |
| Adjustable Damping |
No |
| Upper Mounting Description |
Loop Bushing & Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Gas Charged |
Yes |
| Cylinder Color |
Black |
| Most Popular Year |
2016 |
| Shock Absorber Rod End Measuring Point |
Center of Loop |
| Extended Hydraulic Lockout |
No |
| Adjustable Dampening |
No |
| Accesorio(s) |
None |
| Shock Absorber Bore Size |
1-3/4 |
| Dust Shield Included |
Yes |
| Finish |
Painted |
| Internal Rebound Bumper |
No |

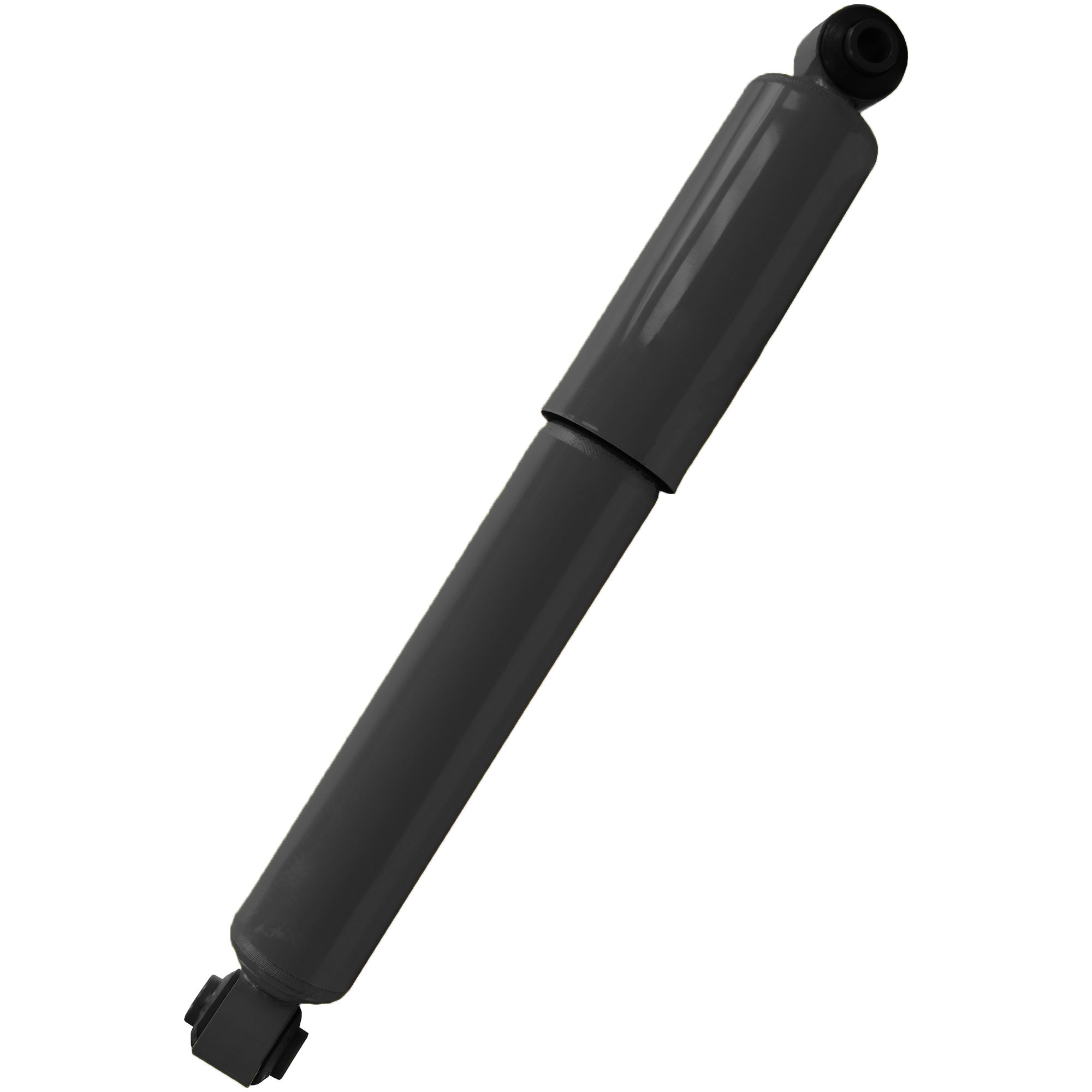

| Part Description |
Shock Absorber |
| Compressed Length |
417.5 |
| Parts Pack(s) |
None |
| Product Grade |
Premium |
| Mounting Hardware Included |
No |
| Shaft Diameter |
18 |
| Tipo de Montura Superior |
Loop Bushing & Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Lower Mounting Description |
Loop Bushing & Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Travel Length |
6.922 |
| Upper Mount Code |
LS53 |
| Dust Shield |
Yes |
| Grade Type |
Premium |
| Part Terminology |
Suspension Shock Absorber |
Features & Benefits
expand_more

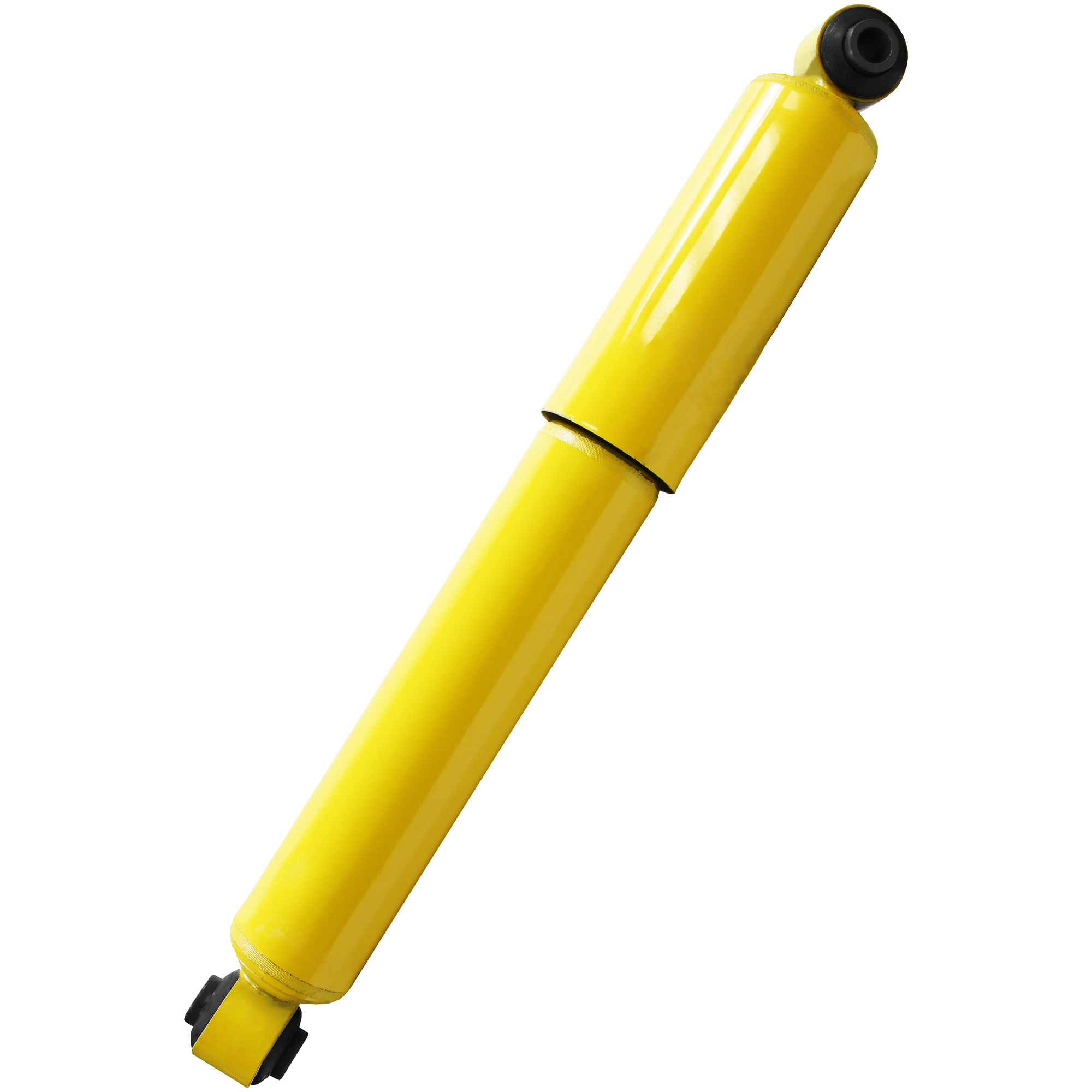

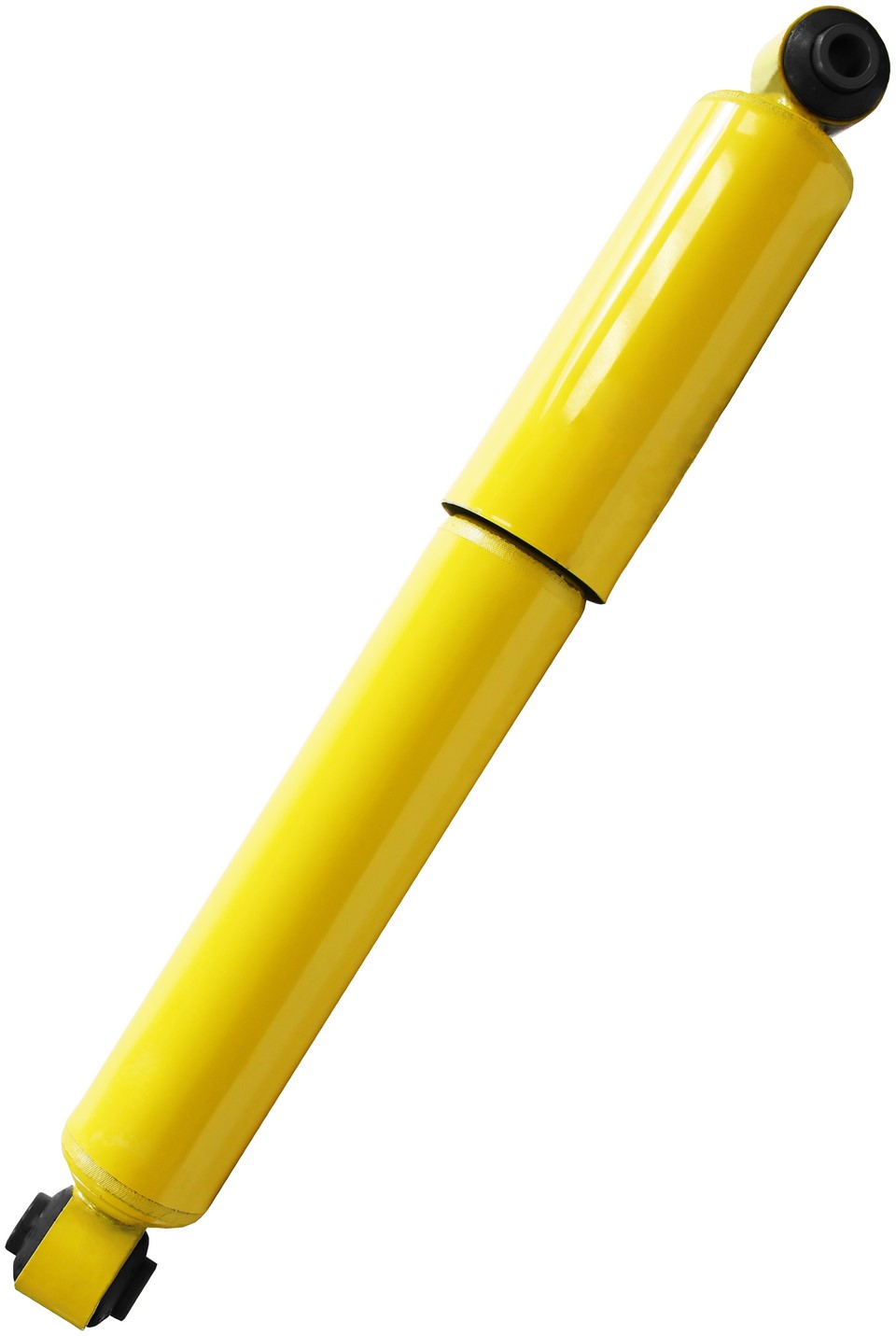

The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Application Summary
expand_more
1996-1998 Volvo WI (Front) (Qualifier: Replaces OE Part Number(s) 21067501, Shocks are 1.75 (in) Bore); 1996-1999 Volvo WC (Front) (Qualifier: Replaces OE Part Number(s) 21067501, Shocks are 1.75 (in) Bore); 2012-2019 Mack GU4 (Front) (Qualifier: Replaces OE Part Number(s) 21010744, with 14,600 (lb) - 18,000 (lb) Multi-Leaf Springs, Shocks are 1.75 (in) Bore); 2012-2018 Mack GU5 (Front) (Qualifier: Replaces OE Part Number(s) 21010744, with 14,600 (lb) - 18,000 (lb) Multi-Leaf Springs, Shocks are 1.75 (in) Bore); 2012-2019 Mack GU7 (Front) (Qualifier: Replaces OE Part Number(s) 21010744, with 14,600 (lb) - 18,000 (lb) Multi-Leaf Springs, Shocks are 1.75 (in) Bore); 2012-2019 Mack GU8 (Front) (Qualifier: Replaces OE Part Number(s) 21010744, with 14,600 (lb) - 18,000 (lb) Multi-Leaf Springs, Shocks are 1.75 (in) Bore); 2005-2007 Mack CT (Front) (Qualifier: Replaces OE Part Number(s) 14QK3108, Shocks are 1.75 (in) Bore); 2010-2017 Mack TD700 (Front) (Qualifier: Replaces OE Part Number(s) 21155033, with 20,000 (lb) Front Axle, Shocks are 1.75 (in) Bore); 2015-2022 Mack Granite (Front) (Qualifier: Replaces OE Part Number(s) 21010744, with 14,600 (lb) - 18,000 (lb) Multi-Leaf Springs, Shocks are 1.75 (in) Bore, with 20,000 (lb) Front Axle); 2010-2016 International WorkStar 7600 (Front) (Qualifier: Replaces OE Part Number(s) 3558089C2, Standard Duty, with 16,000 (lb) - 20,000 (lb) Axle, Steering Axle, with Multi-Leaf Spring Suspension, Shocks are 1.75 (in) Bore); 2015-2016 International WorkStar 7300 (Front) (Qualifier: Replaces OE Part Number(s) 3558089C2, Standard Duty, with 16,000 (lb) - 20,000 (lb) Axle, Steering Axle, with Multi-Leaf Spring Suspension, Shocks are 1.75 (in) Bore); 2015-2016 International WorkStar 7400 (Front) (Qualifier: Replaces OE Part Number(s) 3558089C2, Standard Duty, with 16,000 (lb) - 20,000 (lb) Axle, Steering Axle, with Multi-Leaf Spring Suspension, Shocks are 1.75 (in) Bore)
