Shocks & Struts

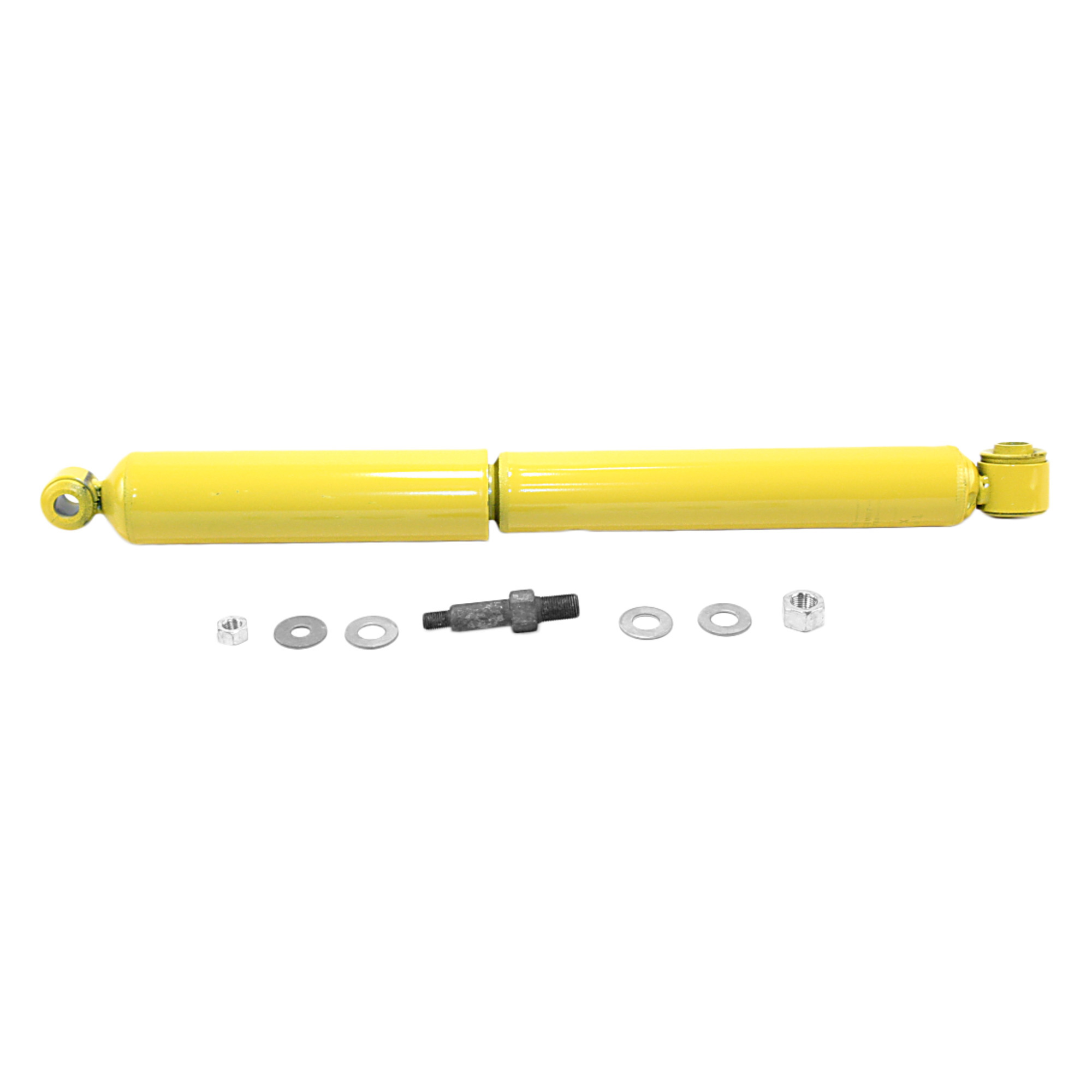

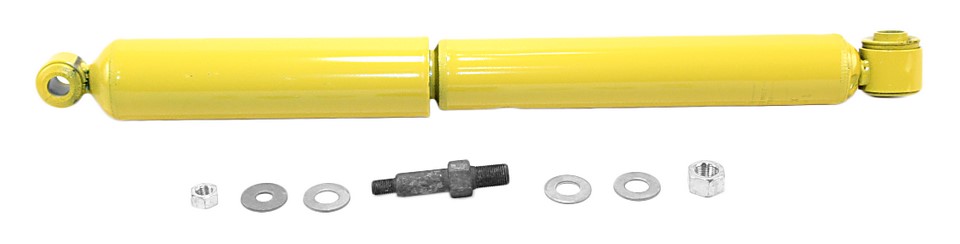

Gas-Magnum Front Suspension Shock Absorber
Part # 34912 | Line Code: MON
brandNameImage
brandNameImage

$75.99
$75.99
error
Not Fitted
Shipping

Product Details
expand_less
Extended Bumper Stop No
Bloqueo hidráulico extendido No
Gas Charged Yes
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Cylinder Color Yellow
Most Popular Make / Model Chevrolet P30
Heavy Duty Supplier Yes
Body Color Yellow
Most Popular Year 1992
Shock Absorber Rod End Measuring Point Center of Loop
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Accesorio(s) P00019
Tope de rebote extendido No
Lower Mounting Type Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Extended Length 23
Dust Shield Included Yes
Cubre polvo Yes
Upper Mounting Type L1/CP1
Internal Rebound Bumper No
Part Description Shock Absorber
Shock Absorber Body End Measuring Point Center of Loop
Compressed Length 358.8
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Parts Pack(s) P00019
Color Yellow
Product Grade Premium
Mounting Hardware Included Yes
Max Year Covered 1999
Lower Mount Code LS54
Upper Mount Type Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 1/16" Stud Length (Center of Loop to Frame)
Tipo de Montura Superior L1/CP1
Tope de rebote comprimido No
Total Part VIO 75150
Min Year Covered 1980
Adjustable Rebound No
Lower Mounting Description Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Travel Length 8.875
Parts Pack P00019
Upper Mount Code L1/CP1
Dust Shield Yes
Grade Type Premium
Upper Mounting Description L1/CP1
Part Terminology Suspension Shock Absorber

Features & Benefits
expand_more
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, Gas-Magnum shocks work more efficiently with less effort.

Application Summary
expand_more

1987-1989 Chevrolet S7 (Front) (Qualifier: Replaces OE Part Number(s) 22002294, Replaces OE Part Number(s) 22007752); 1986-1999 Chevrolet P30 (Front) (Body: Standard Cargo Van, Cab & Chassis / Qualifier: with Monobeam Axle); 1986-1999 GMC P3500 (Front) (Qualifier: with Monobeam Axle); 1980-1989 GMC C5000 (Front) (Qualifier: Replaces OE Part Number(s) 22002294, Replaces OE Part Number(s) 22007752, with Conventional Cab); 1980-1989 GMC C6000 (Front) (Qualifier: Replaces OE Part Number(s) 22002294, Replaces OE Part Number(s) 22007752, with Conventional Cab); 1980-1989 GMC C7000 (Front) (Qualifier: Replaces OE Part Number(s) 22002294, Replaces OE Part Number(s) 22007752, with Conventional Cab)
