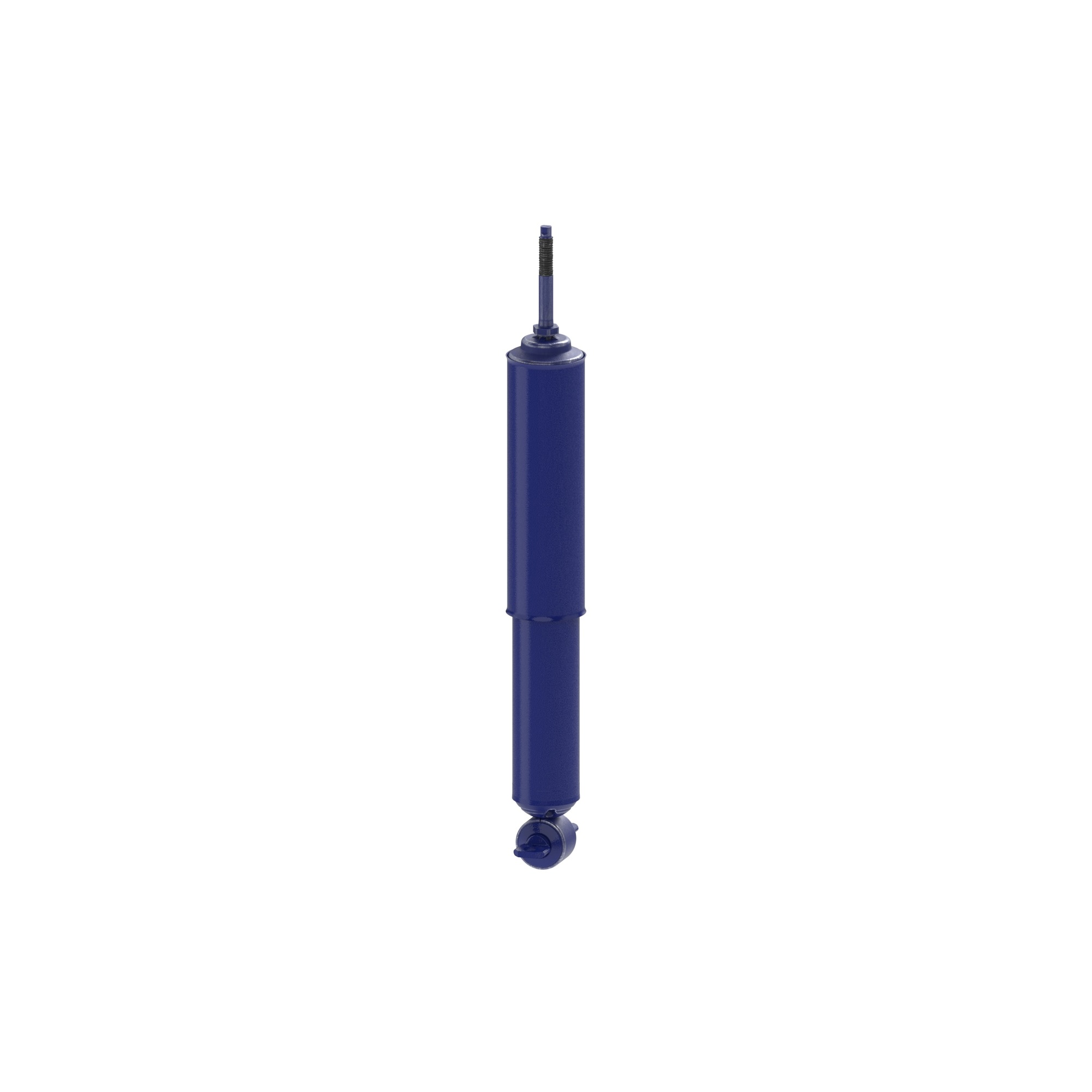

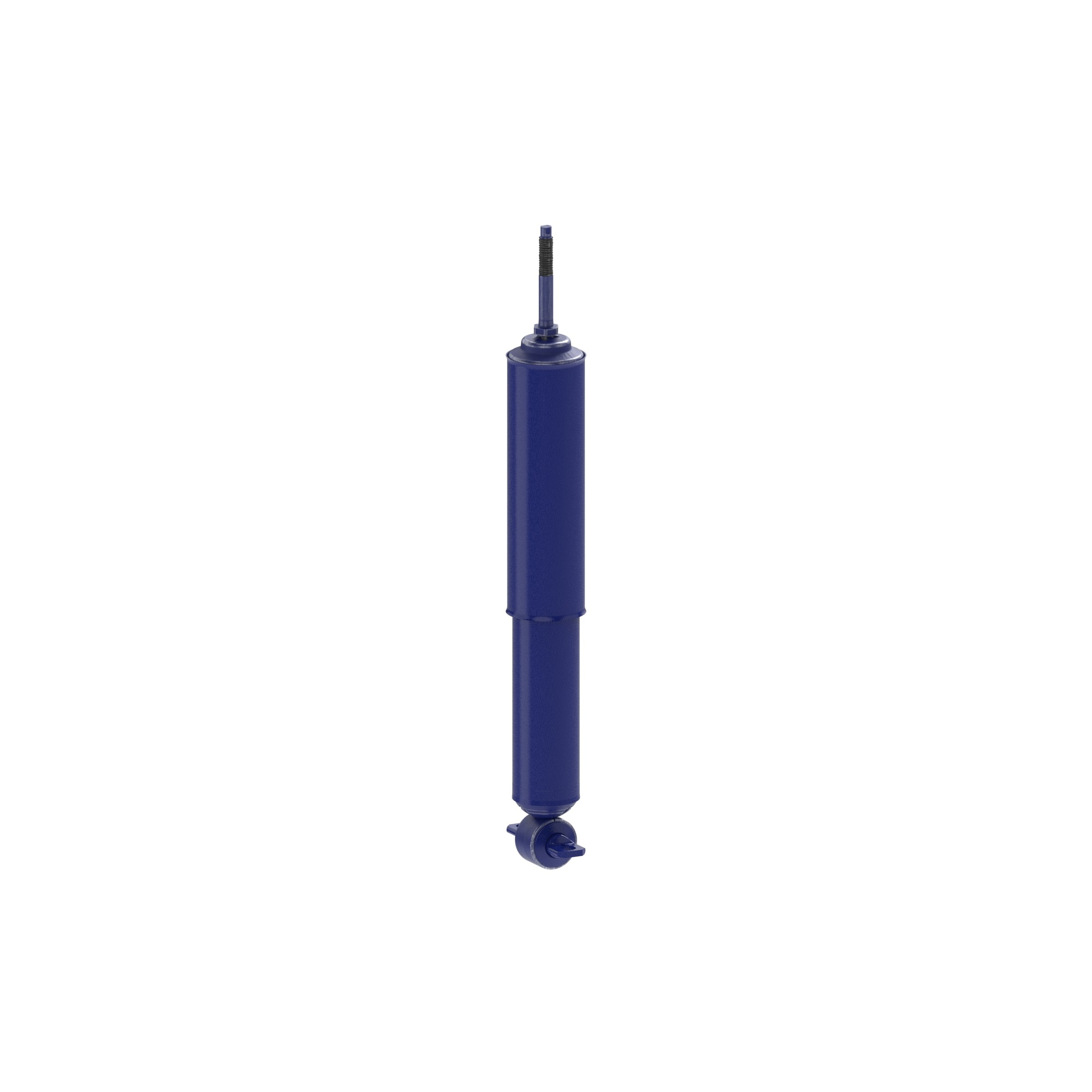

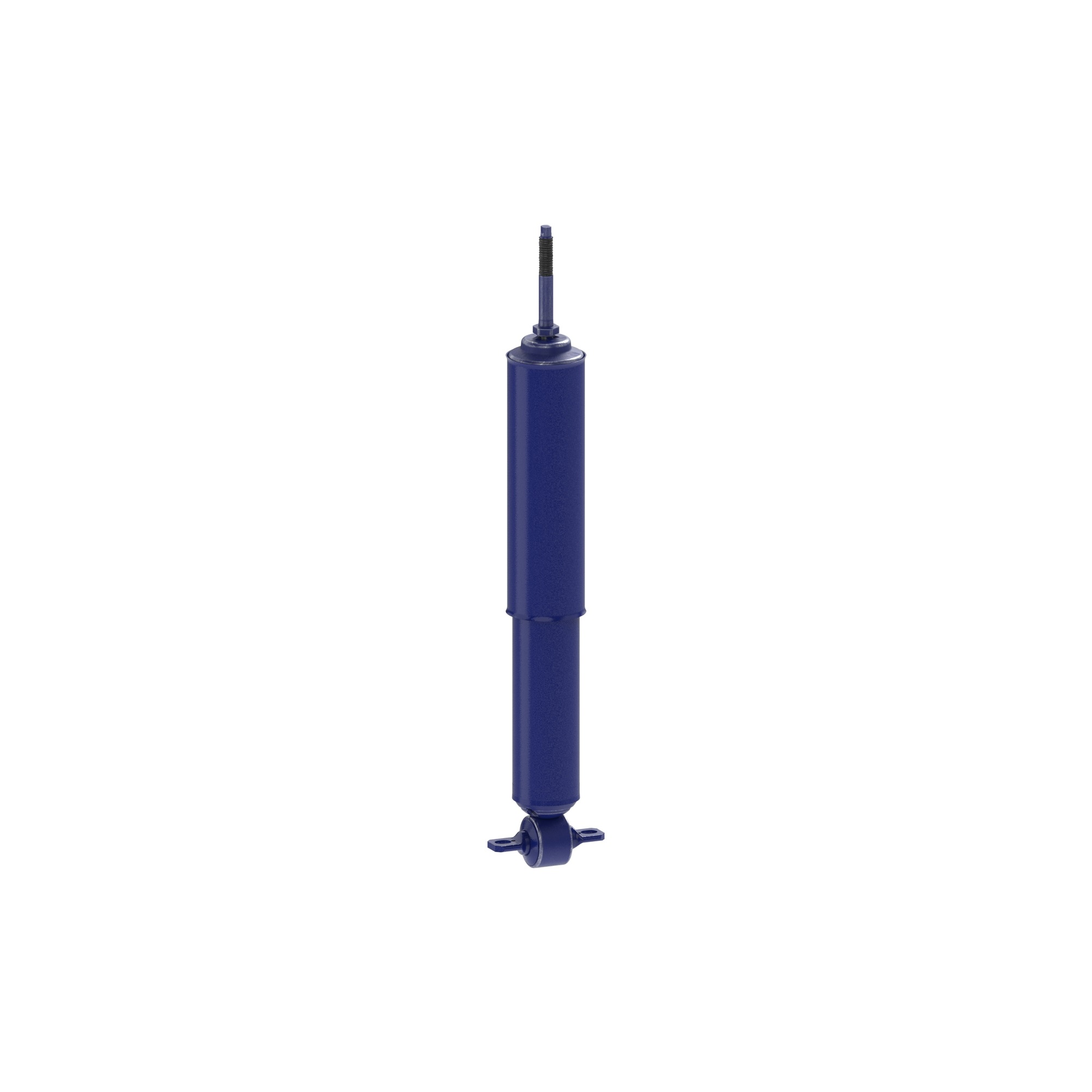

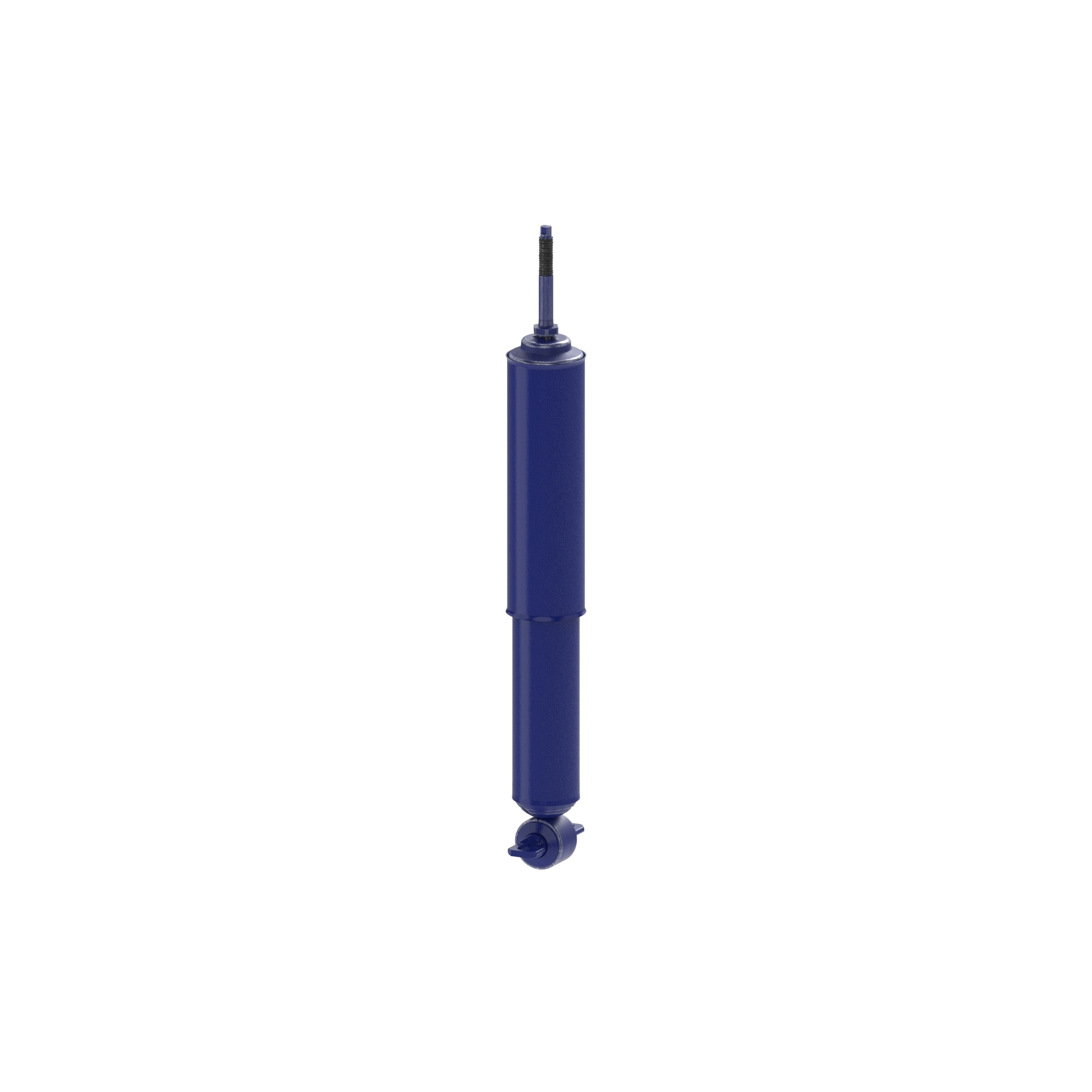

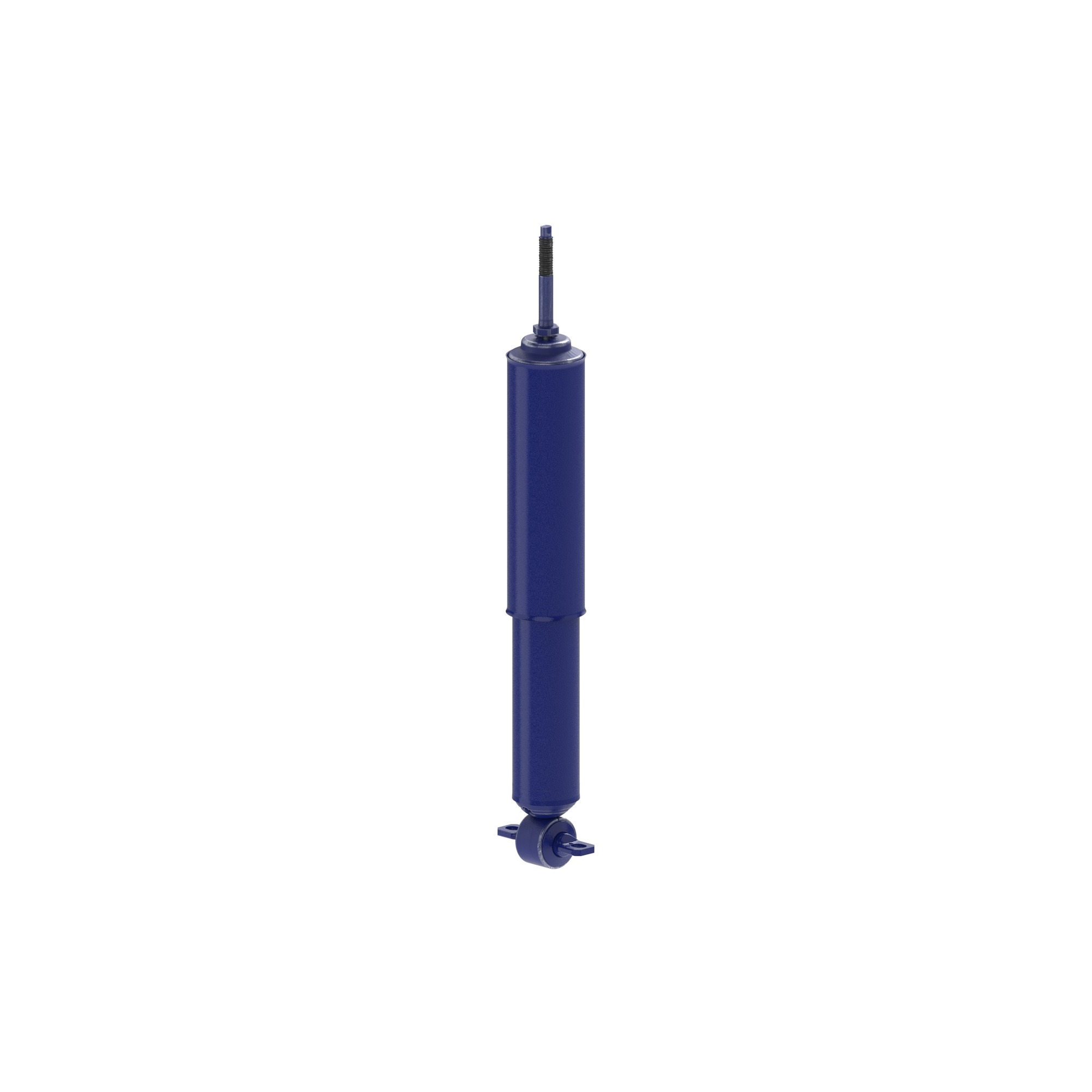

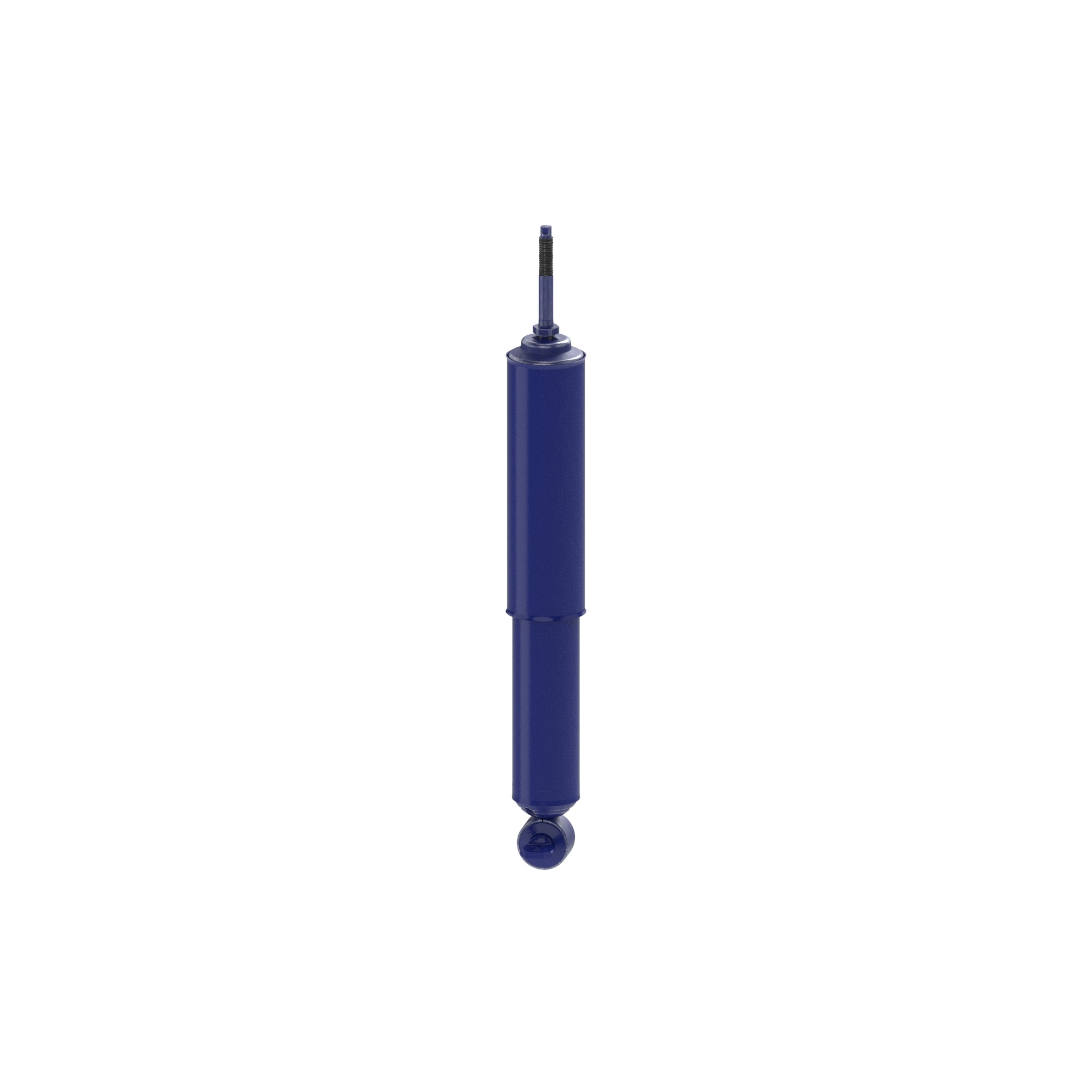

| Gas Charged | Yes |
| Rod Diameter | 12.4 |
| Cylinder Outside Diameter | 44.5 |
| Cylinder Color | Blue |
| Heavy Duty Supplier | Yes |
| Body Color | Blue |
| Progressive Spring Rate | N/A |
| Spring Isolators Included | No |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Spring Included | No |
| Body Diameter | 44.5 |
| Shaft Material | Nitrocarburized |
| Extended Length | 350.9 |
| Shock Stroke | 116.5 |
| Spring Seat Included | No |
| Dust Shield Included | Yes |
| Air Adjustable | No |
| Finish | Painted |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Spring Rate Type | N/A |
| Boot Included | Yes |
| Compressed Length | 234.4 |
| Lower Mount Type | Cross Pin Mount - Open Ended, 5/16" Hole ID (Both Ends) X 2 3/16" Pin Length (Hole Center to Center) |
| Parts Pack(s) | P01136 |
| Bearing Plate Included | No |
| Air Bladder Material | N/A |
| Color | Blue |
| Air Ride Suspension | No |
| Mounting Hardware Included | Yes |
| Internal Construction Type | Twin Tube |
| Coil Over Springs Included | No |
| Lower Mount Code | XP1 |
| Upper Mount Type | Stem Mount - 2 5/8" Stem Length X 1/2"-13 Thread Pitch |
| Type | Telescopic |
| Dust Shield Color | Blue |
| Body Material | Steel |
| Adjustable Rebound | No |
| Travel Length | 116.5 |
| New Or Remanufactured | New |
| Adjustable Damping | Manual |
| Cylinder Material | Steel |
| Upper Mount Code | S5 |
| Grade Type | Premium |

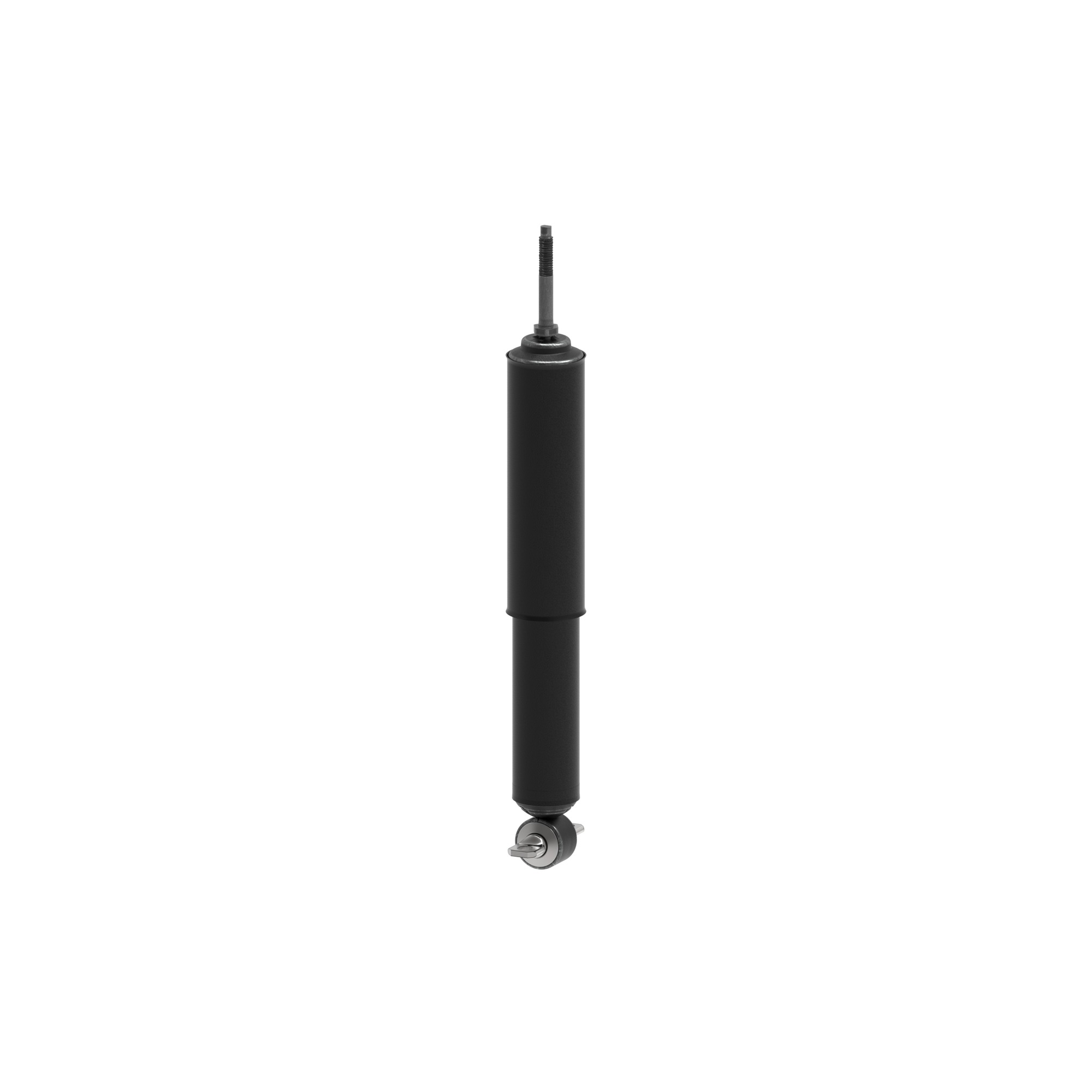

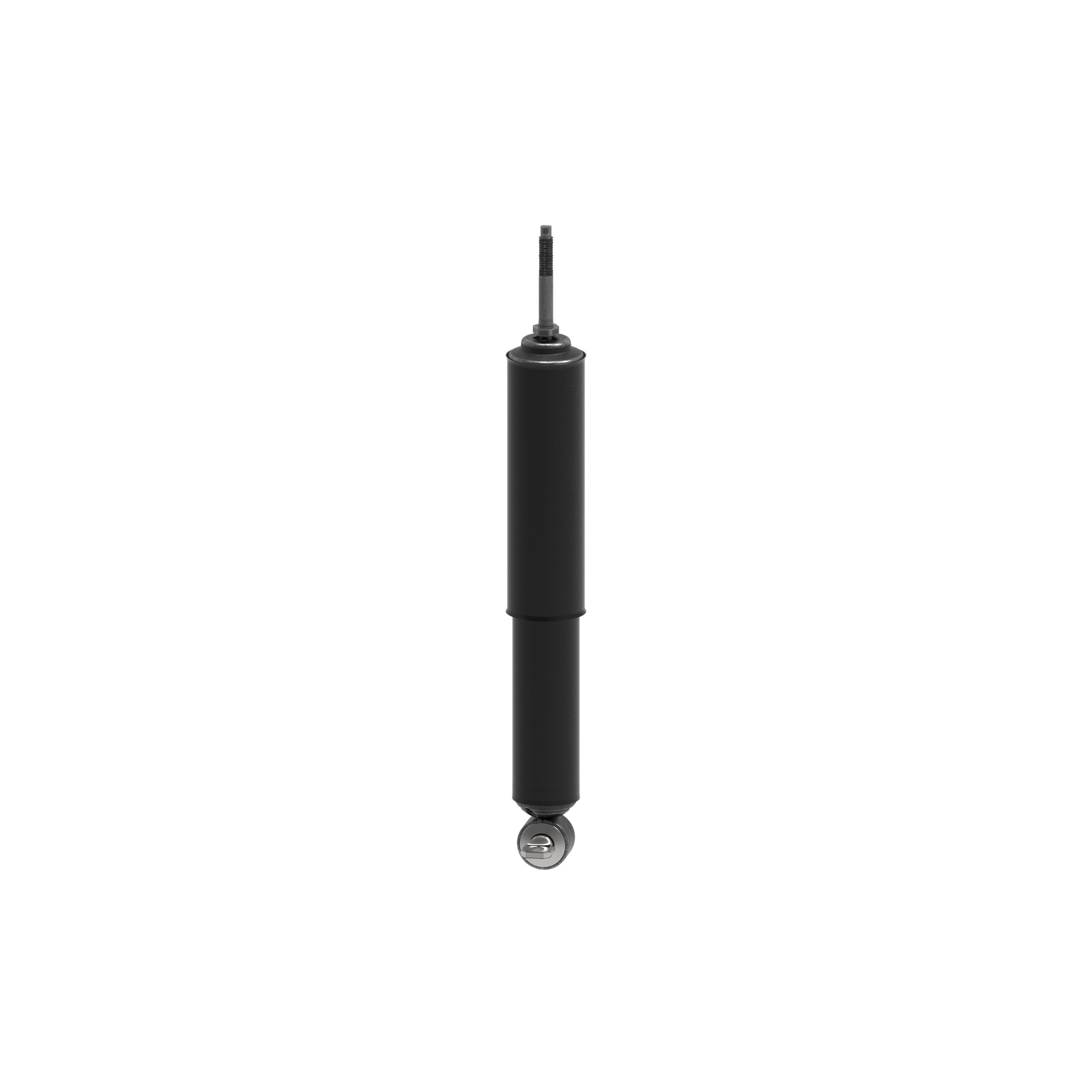

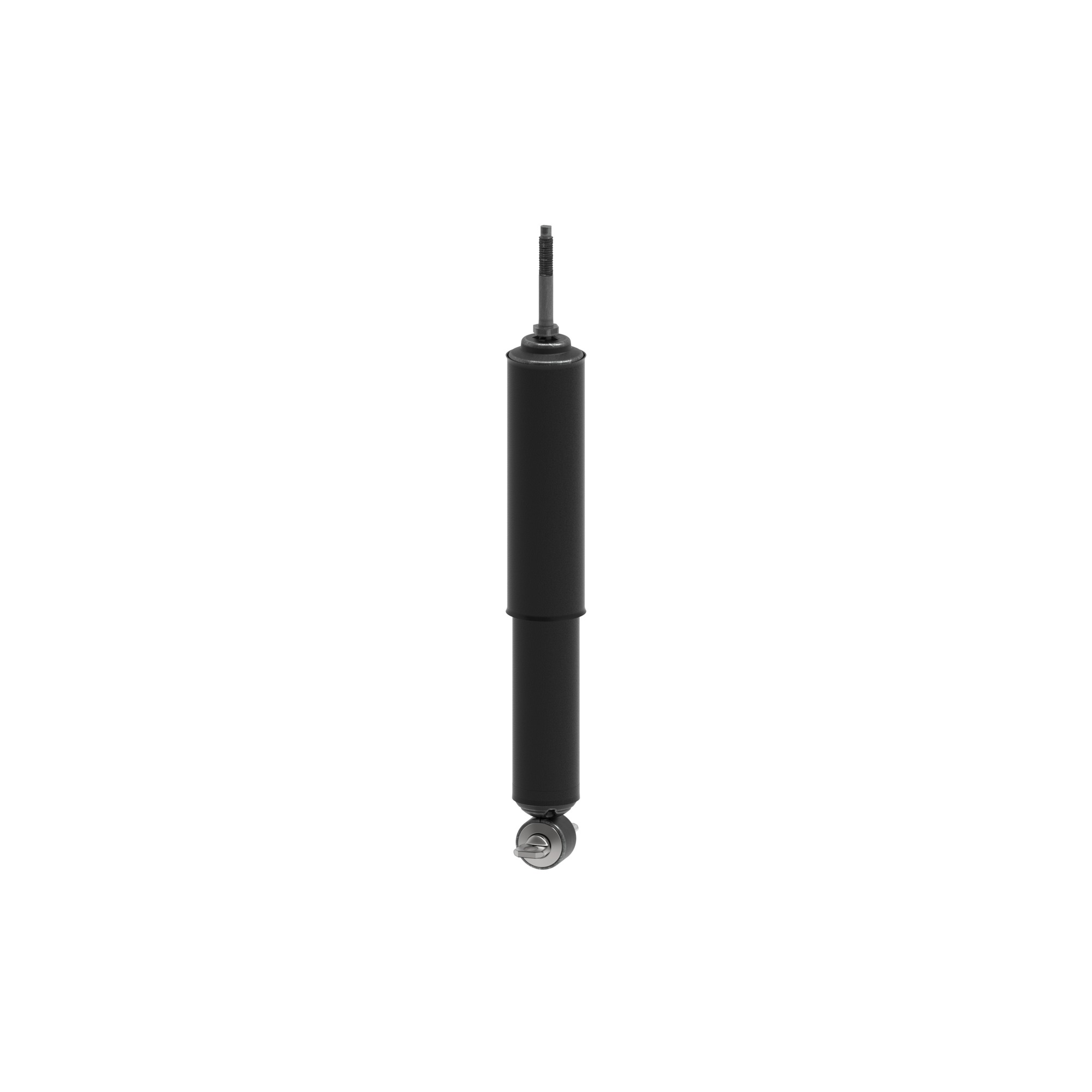

| Part Terminology | Suspension Shock Absorber |
