Product Details
expand_less
| Drive Shaft Included |
No |
| Housing Material |
Cast Iron |
| Mounting Hole Quantity |
1 |
| Bolts Included |
No |
| Pick Up Screen Diameter |
19.0 |
| Inlet Size (in) |
0.750 |
| Spacer Included |
No |
| O-Ring Included |
No |
| Nylon Bushing Included |
No |
| Mounting Hole Diameter |
6.0 |
| Washers Included |
No |
| Bushing Included |
No |
| Oil Pump Type |
Gear |
| Cover Material |
Cast Iron |
| Shaft Material |
Not Applicable |
| Height |
103.0 |
| Pickup Screen Included |
No |
| Gear Material |
Steel |
| Width |
83.0 |
| Intermediate Shaft Included |
No |
| Finish |
Rust Preventative |
| Pick Up Tube Diameter |
19.00 |
| Gasket Or Seal Included |
No |
| Cotter Pin Included |
No |
| Title |

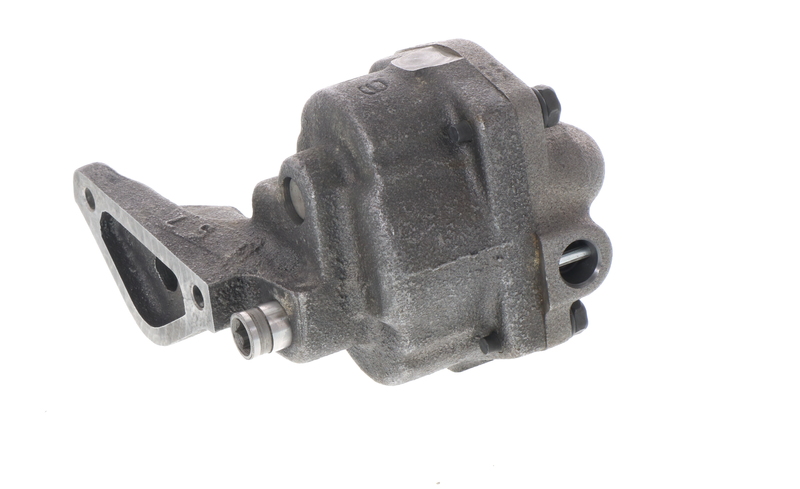

Engine Oil Pump |
| Drive Type |
Drive Shaft |
| Governor Spinner Included |
No |
| Inlet Size (mm) |
19.00 |
| Pump Cover Included |
Yes |
| Guide Included |
No |
| Gears Included |
Yes |
| Grade Type |
Standard Replacement |
| Timing Cover Included |
No |
| Part Terminology |
Engine Oil Pump |
Features & Benefits
expand_more
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Application Summary
expand_more
Buick Century 2005-1990, Regal 1996-1990, Rendezvous 2007-2002, Skylark 1998-1994, Terraza 2006-2005, Chevrolet Beretta 1996-1990, Camaro 1995-1990, Cavalier 1994-1990, Celebrity 1990, Corsica 1996-1990, Equinox 2009-2005, Impala 2005-2000, Lumina 2001-1990, Lumina APV 1996-1990, Malibu 2006-1997, Monte Carlo 2005-1995, S10 1993-1990, Uplander 2006-2005, Venture 2005-1997, GMC S15 1990, Sonoma 1993-1991, Isuzu Pickup 1994-1991, Rodeo 1992-1991, Trooper 1991-1990, Oldsmobile Achieva 1998-1994, Alero 2004-1999, Cutlass 1999-1997, Cutlass Ciera 1996-1994, Cutlass Cruiser 1994, Cutlass Supreme 1997-1990, Silhouette 1994-1990, Silhouette 2004-1996, Pontiac 6000 1991-1990, Aztek 2005-2001, Firebird 1995-1990, G6 2006-2005, Grand Am 2005-1994, Grand Prix 2003-1990, Montana 2006-1999, Sunbird 1994-1991, Tempest 1991-1990, Torrent 2009-2006, Trans Sport 1999-1990, Saturn Relay 2006-2005
