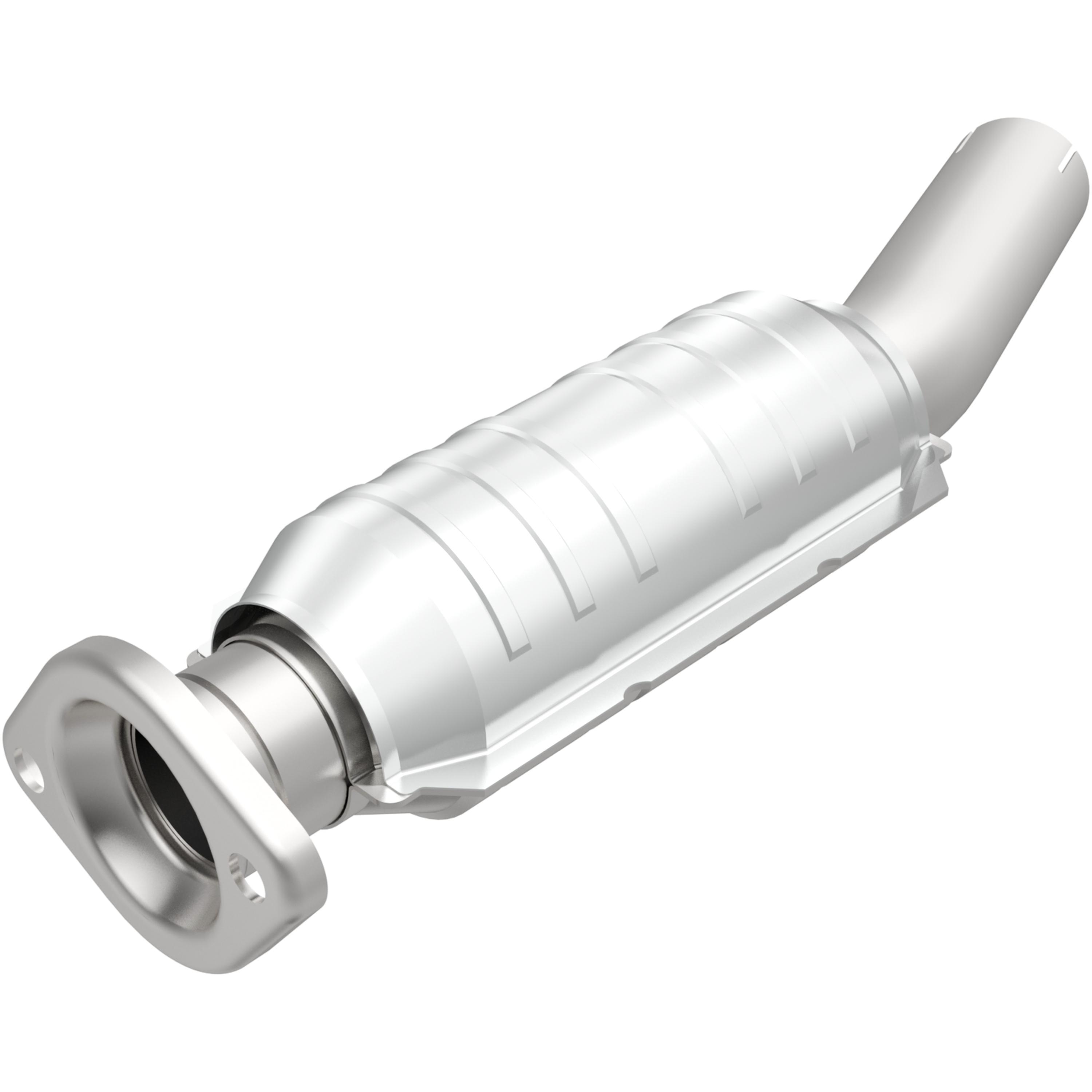

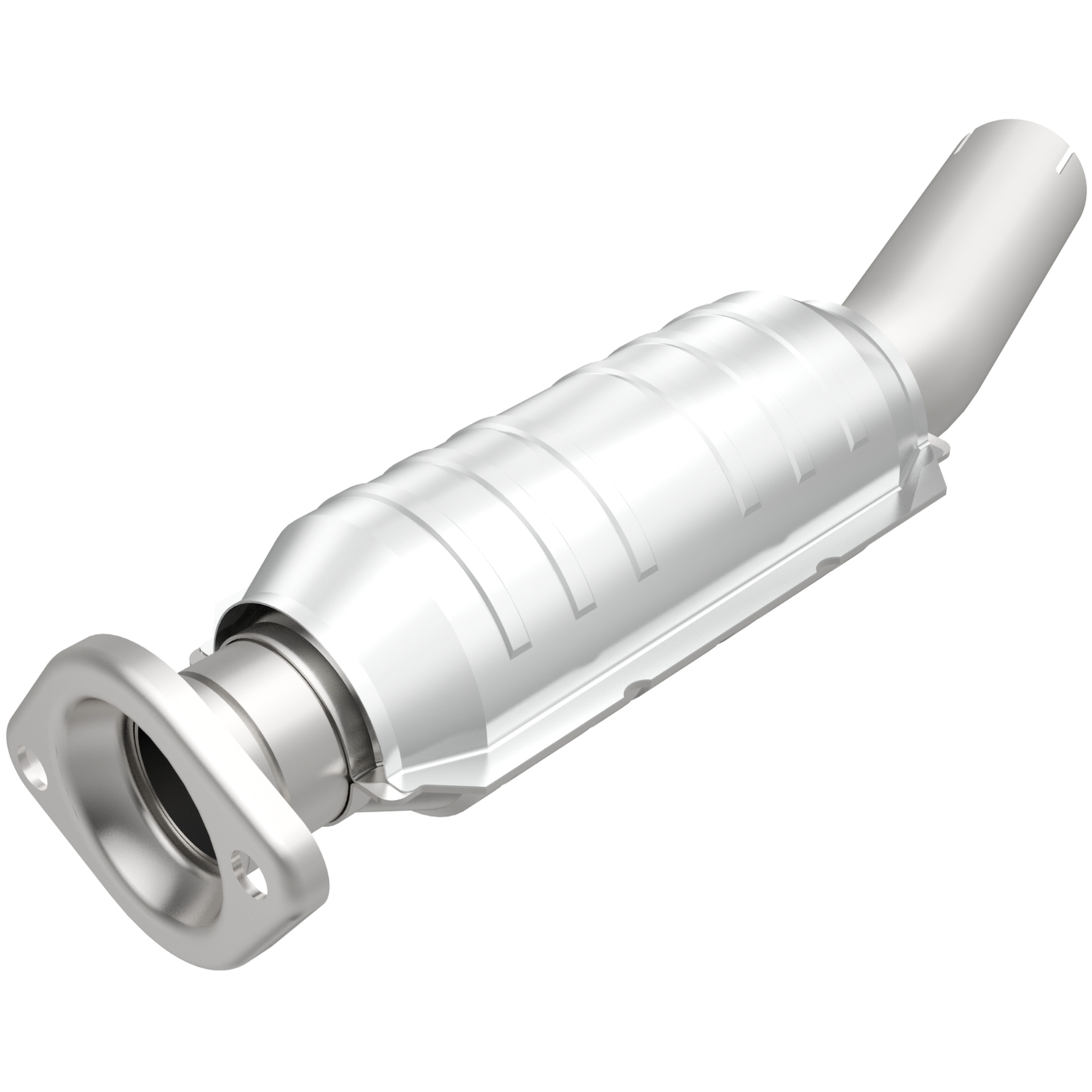

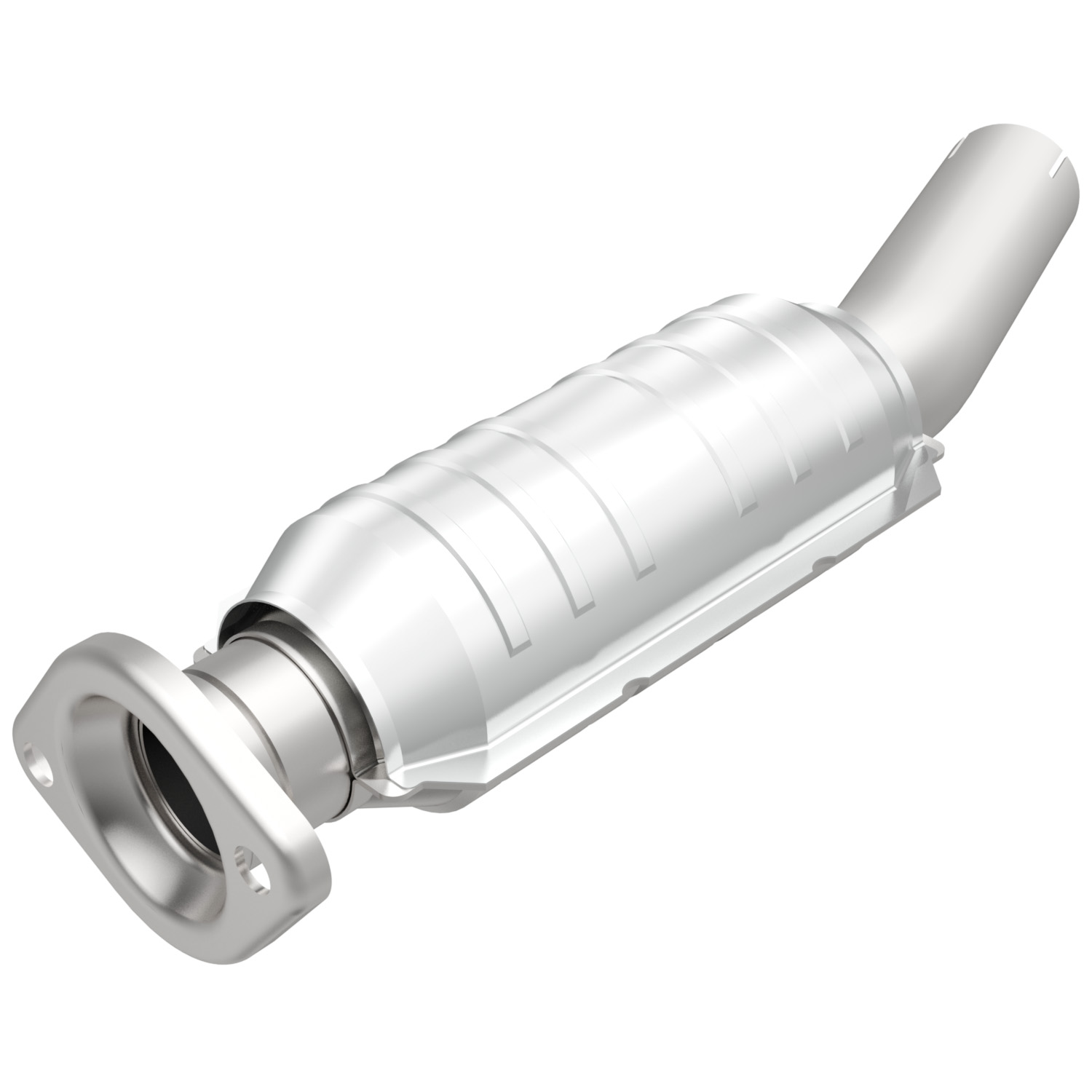

HM Grade Direct-Fit Catalytic Converter
Part # 23006 | Line Code: CSM
MagnaFlow Exhaust Products
MagnaFlow Exhaust Products

$532.99
$532.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Universal of Specific Fit Specific
Oxygen sensor location None
Hangers Included No
Pipe Material Stainless Steel
Air Tube Count 0
Inlet Type Bolt-On
CARB Executive Order Number Not Applicable
Heat Shield Attached No
Outlet Gasket Included No
Clamps Included No
Finish Stainless Steel
Outlet Outside Diameter 2.5
Heat Shield Material None
Universal Or Specific Fit Specific
Body Type Spun Body
Inlet Gasket Included No
Mounting Hardware Included Yes
California Certified No
Overall Length 21
Title MagnaFlow 2006-2012 Toyota RAV4 HM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter
Material Stainless Steel
Inlet Attachment Bolt-On
Clamp Included No
Series HM Grade
Subtitle Federal / EPA Compliant Direct-Fit Catalytic Converter
Substrate Material Ceramic
Type Direct-Fit
Body Material Stainless Steel
Tube Material Stainless Steel
Sensor Port Count 0
Inlet Mounting Hardware Included No
Outlet Mounting Hardware Included No
Converter Quantity 1
Prop 65 Y/N No
Outlet Type Clamp-On
Air Tube Adaptable No
Grade Type Regular
Part Terminology Catalytic Converter

Features & Benefits
expand_more
Keep the check engine light off with MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 23006. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 2006-2012 Toyota RAV4 3.5L. MagnaFlow 23006 interchanges with OE parts 17404-0P020, 17404-0P021, 17404-0P022, 17404-31020, 17404-31021, 17420-0V070, 17420-0V071, 17420-0V072, 17420-36060, 17420-36061, 17420-36062. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.
