| Ring Gear Thickness | 11.2 |
| Heavy Duty Supplier | Yes |
| Flywheel Cup Depth/Step Height | 0 |
| Number of teeth, starter ring gear | 164 |
| Flywheel friction surface outer diameter | 278 |
| Crank Hole Dia. | 13.4 |
| Ring Gear Major Dia. | 350.9 |
| Overall Casting O.D. | 343.8 |
| Flywheel Friction Surface Inner diameter | 6.5748 |
| Bolt hole PCD crankshaft | 95 |
| Flywheel Inner Diameter | 6.575 |
| Flywheel Thickness [mm] | 1.1811 |
| Ring Gear Chamfer Side | Not available |
| Flange Thickness | 12.3 |
| Crank To Friction Surface | 25 |
| I.D. for Pilot | 2.6772 |
| Number of Teeth | 164 |
| Bolt Hole Pattern | 2 |
| Flywheel Diameter | 10.906 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Not available |
| Ring Gear Mounting O.D. | 12.8031 |
| Number Of Mounting Bores | 2 |
| Ring Gear Number | 326310010 |
| Has Dowel Pins | without Dowel Pins |
| Bolt hole PCD clutch pres.plte | 296 |

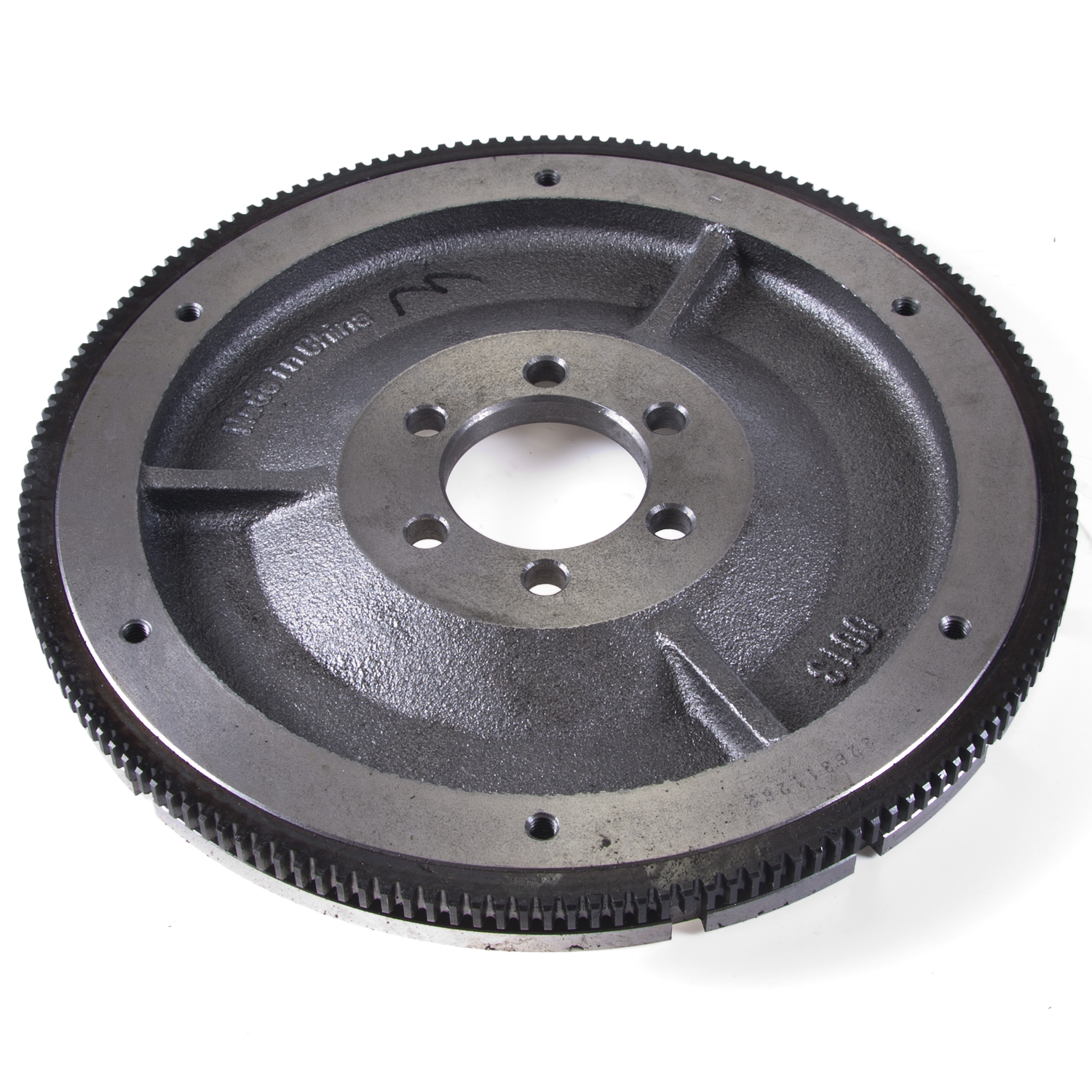

| Part Terminology | Clutch Flywheel |
