| Ring Gear Thickness | 9 |
| Heavy Duty Supplier | Yes |
| Flywheel Cup Depth/Step Height | -0.069 |
| Number of teeth, starter ring gear | 119 |
| Dowel hole diameter | 6 |
| Flywheel friction surface outer diameter | 231 |
| Crank Hole Dia. | 12.6 |
| Centering diameter / dowel hole | 254 |
| Ring Gear Major Dia. | 306 |
| Dowel Hole Pattern | 5 |
| Overall Casting O.D. | 275.3 |
| Flywheel Friction Surface Inner diameter | 147.8 |
| Bolt hole PCD crankshaft | 2.4803 |
| Flywheel Inner Diameter | 5.819 |
| Flywheel Thickness [mm] | 26 |
| Flywheel Cup Depth or Step Height | -1.76 |
| Ring Gear Chamfer Side | Transmission |
| Flange Thickness | 0.4823 |
| Crank To Friction Surface | 0.8858 |
| I.D. for Pilot | 18.85 |
| Number of Teeth | 119 |
| Bolt Hole Pattern | 2 |
| Flywheel Diameter | 9.193 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Ring Gear Mounting O.D. | 275.5 |
| Number Of Mounting Bores | 24 |
| Ring Gear Number | 326310175 |
| Has Dowel Pins | with Dowel Pins |
| Bolt hole PCD clutch pres.plte | 254 |

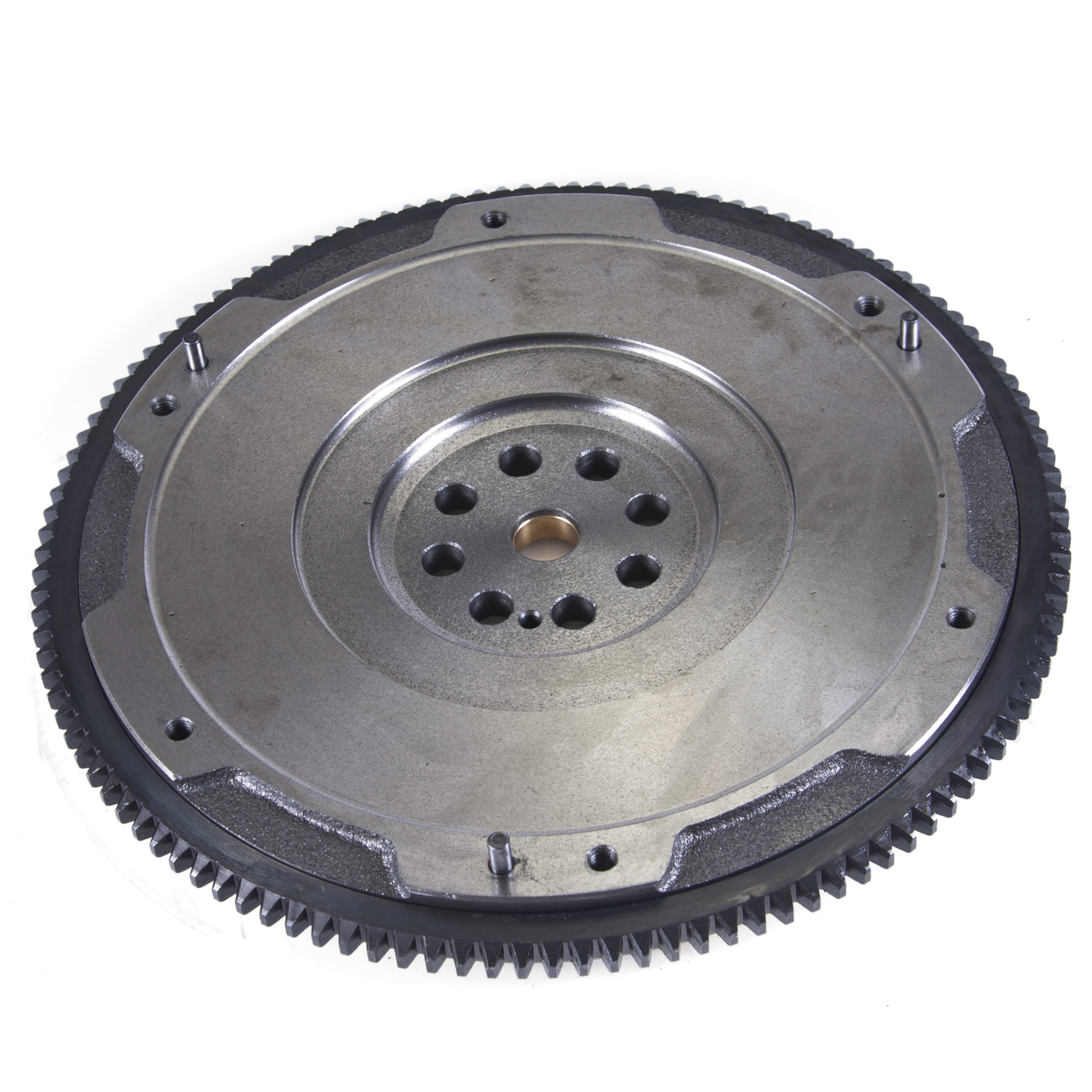

| Part Terminology | Clutch Flywheel |
