| Material | Mild Steel |
| Port Shape | Square |
| Flange Thickness | 1/4 in. with 5/16 in. collector ring flange. |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| bolts/studs included | Yes |
| reducers included | Yes |
| Motor Mounts (Included) | NO |
| Transmission Mount/Crossmember (Included) | No |
| Automatic Transmission - Column | Yes |
| Weld-Up | No |
| with A.I.R. System | No |
| Catalytic Converter(s) Included | No |
| header style | Long Tube |
| Tube Length | LONG Tubes |
| Header Material | Mild Steel |
| Manual Transmission - Floor | No |
| Manual Transmission - Column | No |
| with EGR | No |
| Flange Style | Standard |
| Power Steering | Yes |
| Y-Pipe Included | No |
| Crossover Pipe Included | NO |
| Automatic Transmission - Floor | Yes |
| Transmission Mount/Crossmember Included | No |
| Air Conditioning | Yes |
| Finish | Uncoated |
| Tuned | NO |
| Cylinder Head Port Shape | Square |
| Header Fasteners Included | Yes |
| Header Finish | Uncoated |
| Collector Bolts Included | Yes |
| Collector Style | Ball and Socket Style (Gasketless) |
| Primary Tube Gauge | 16g |
| Quantity | Sold as a pair. |
| Exhaust System Dia | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Size | 3 in. |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Reducer Outlet Size | 2-1/2 in. |
| Tube Diameter | 1-1/2 in. |
| Tube Size | 1-1/2 in. |
| Primary Tube Diameter (in) | 1.50 in. |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Replacement Head Flange Gasket | 27340 |
| Replacement Gasket | 27340 |
| Engine Version | Ford Windsor Block (W) |
| Tube Material Thickness | 16g |
| motor mounts included | NO |
| Cylinder Head | Stock Profile Heads |
| Emissions Notes | EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website) |
| E.O. # | Yes |
| Header Port Shape | Square |
| Gasket # | 27340 |
| KEY FEATURE | 50 State Legal |
| Variations | 89356, 89358 |
| Notes | 80-96 Ford F150, F250, F350, Bronco; 2-4WD 302 5.0L |
| Collector Diameter | 3 in. |
| Tube Style | Long Tubes |

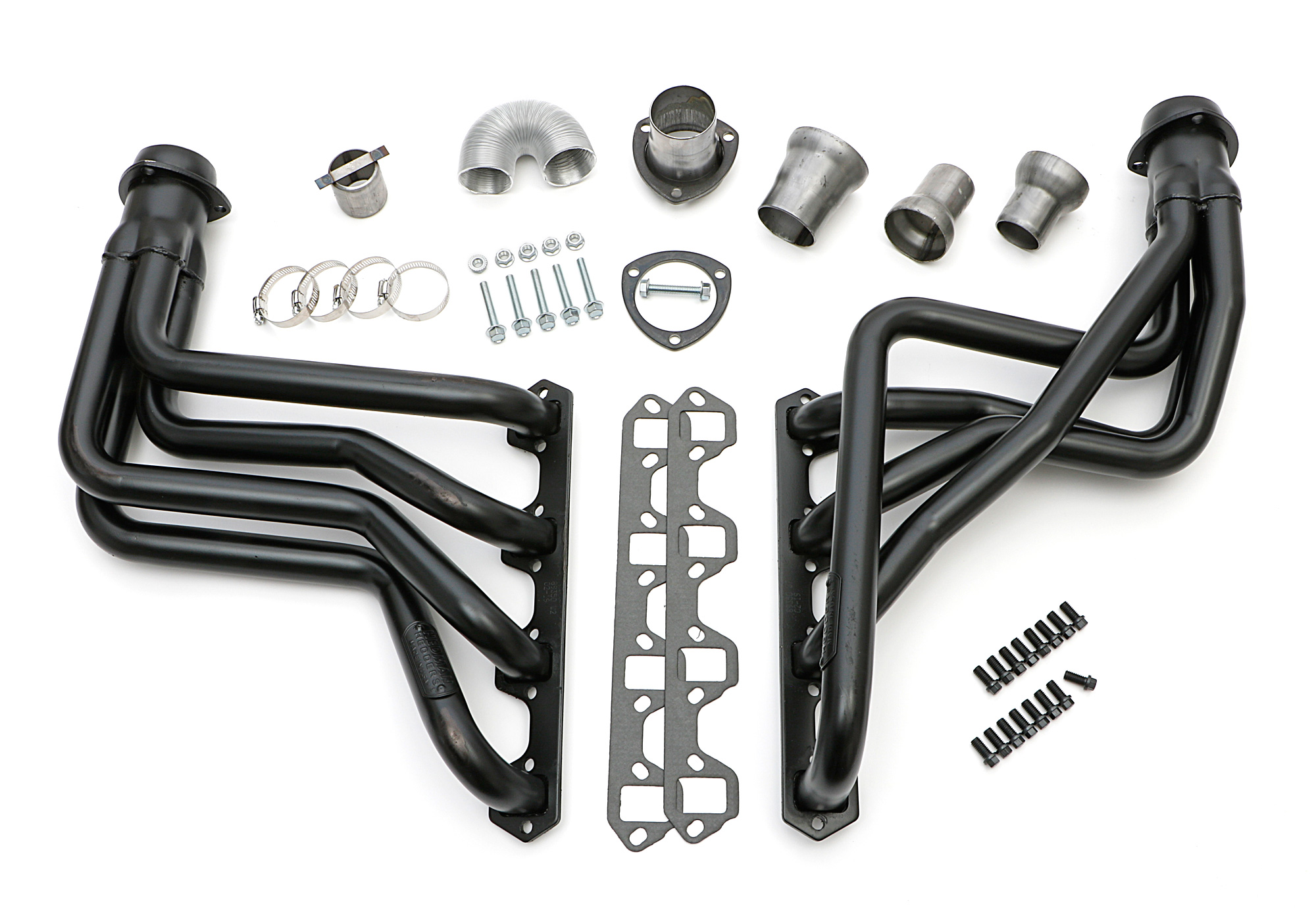

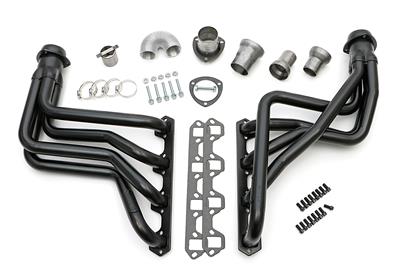

| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Tube Design | Standard |
| Header Construction | MILD STEEL- Standard-Duty |
| Drivetrain | 2WD |
| Installation Hardware Included | Yes |
| Gasket Or Seal Included | Yes |
| Mounting Hardware Included | Yes |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Part Terminology | Exhaust Header |

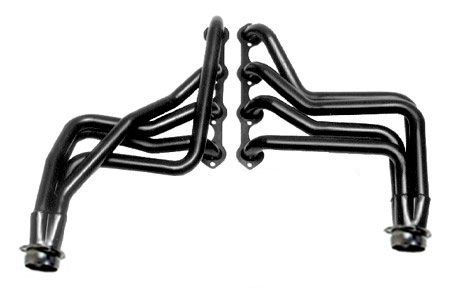

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 5.0L headers, even if it is not perfectly aligned with the header collectors.
These uncoated, LONG-TUBE headers fit 1980-96 Ford 1/2, 3/4 and 1 ton, 4WD Trucks, and 2WD or 4WD Broncos with a 5.0L (302W) engine. The long, smooth-flowing 1-1/2 in. tube design provides superb exhaust flow to let your Ford truck or Bronco's 5.0L engine breathe easy, and produce more horsepower and torque. They fit automatic transmissions only. Not designed for use with manual transmissions.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
