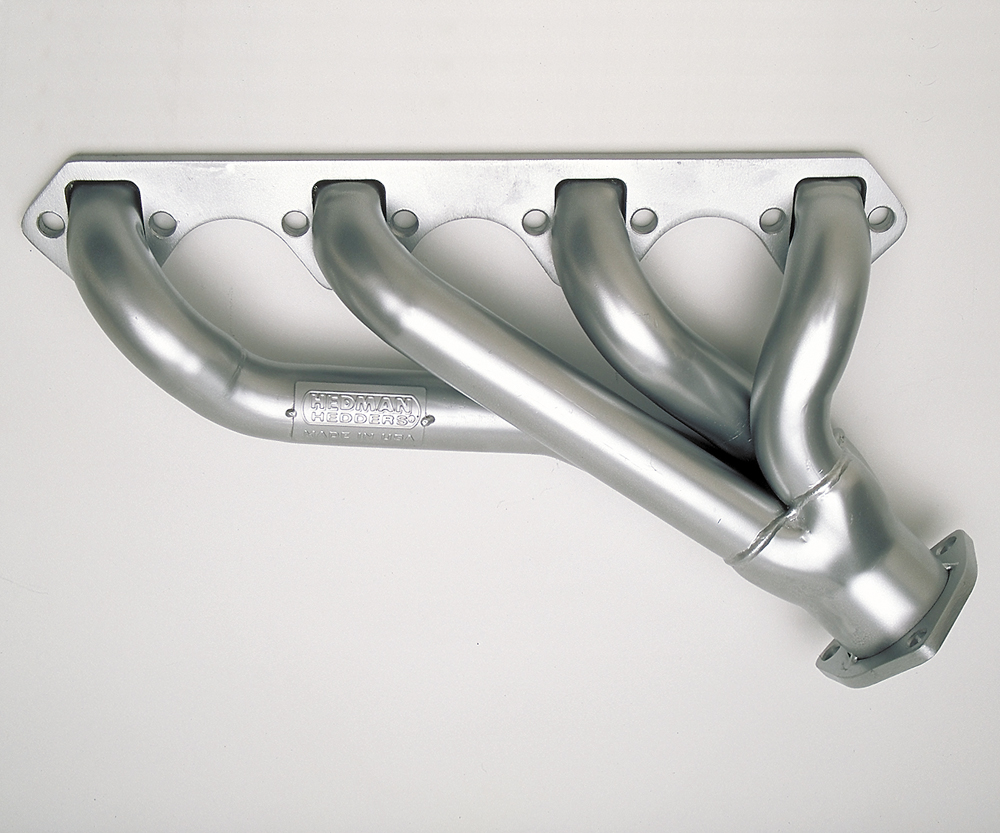

ELITE Headers; 1-1/2 in. Tube Dia; 2-1/2 in. Coll; SHORTY Design
Part # 88408 | Line Code: HED
Hedman Hedders
Hedman Hedders

$645.99
$645.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Crossover Pipe Included NO
Automatic Transmission - Floor Yes
Header Port Shape Square
Variations 88406, 88408
motor mounts included NO
Cylinder Head Stock Profile Heads
Engine Notes 260-302W
Tuned NO
Finish Type MATTE SILVER Ceramic-metallic coated
Y-Pipe Included No
Engine Ford SB 260-289-302W
Tube Diameter 1-1/2 in.
Reducer Outlet Size 2-1/2 in.
header style Mid-Length Tube
Primary Tube Diameter (in) 1.50 in.
Installation Hardware Included Yes
Gasket Or Seal Included Yes
Transmission Mount/Crossmember (Included) No
Flange Thickness 0.375 In.
bolts/studs included Yes
Header Material Mild Steel
Contents Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Weld-Up No
California Proposition 65 WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Manual Transmission - Floor No
Automatic Transmission - Column No
Motor Mounts (Included) NO
Catalytic Converter(s) Included No
Emissions Notes NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
with EGR No
Gasket # 27340
Header Finish Matte Silver Ceramic-Metallic
Engine Version Ford Windsor Block (W)
<i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i>
CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN!
Cylinder Head Port Shape Square
Power Steering Yes
Exhaust System Dia 2-1/2 in.
with A.I.R. System No

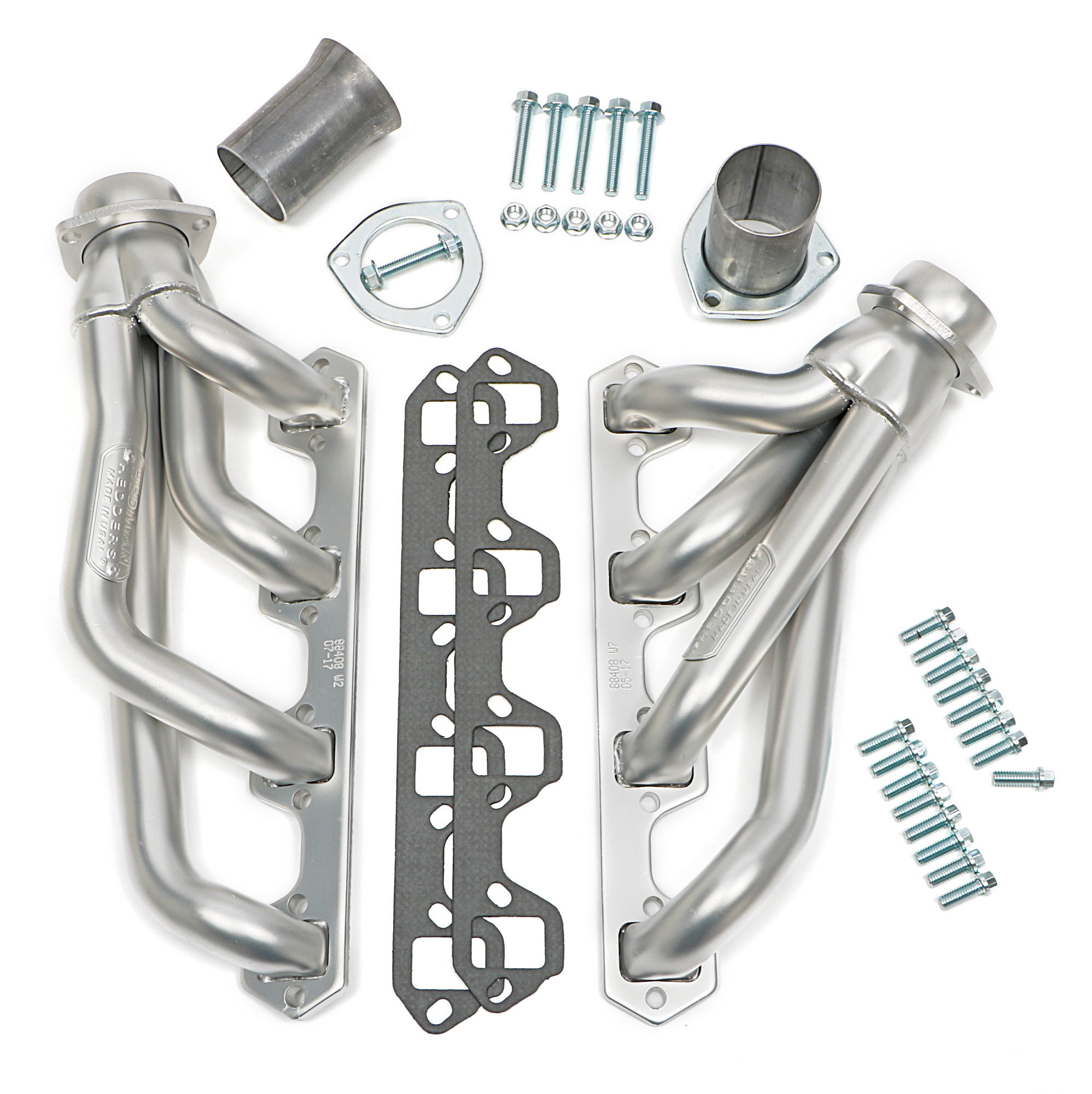

Package Contents Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Port Shape Square
Tube Size 1-1/2 in.
Transmission Mount/Crossmember Included No
Finish Matte Silver Ceramic-Metallic
Replacement Gasket 27340
Tube Length Short Tubes
Tube Style Shorty
Primary Tube Gauge 14g
Notes 66-73 Ford Mustang 260-302W
Header Construction MILD STEEL- ELITE Heavy-Duty
reducers included Yes
KEY FEATURE Heavy-Duty Model
E.O. # No
Tube Design Standard
Collector Style Ball and Socket Style (Gasketless)
Manual Transmission - Column No
Collector Bolts Included Yes
Header Fasteners Included Yes
Quantity Sold as a pair.
Title HEDMAN HEDDERS ELITE HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN
Tube Material Thickness 14g
Mounting Hardware Included Yes
Material Mild Steel
Replacement Head Flange Gasket 27340
Air Conditioning Yes
Collector Attachment 2-1/2 in.
Flange Style Standard
Collector Diameter 2-1/2 in.
Collector Size 2-1/2 in.
Part Terminology Exhaust Header

Features & Benefits
expand_more

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and building Mustang headers for nearly as long as they've been on the road. Each set uses mild or stainless steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your SB Ford's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

This set is part of Hedman's ELITE line of headers, and uses stout 3/8 in. flanges, and thicker 14 gauge primary tubes. The heavy-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines, which produce higher exhaust temperatures.

ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps heat in the tubes, resulting in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.

These mild steel, MID-LENGTH TUBE headers fit the following iconic models; 1964-73 Ford Mustang and Falcon, '66-73 Ranchero & Torino, '69-77 Maverick, '66-70 Fairlane, '67-73 Mercury Cougar and'70-73 Comet models fitted with a 260-302W engine. These headers fit automatic transmission equipped vehicles only. The long, smooth 1-1/2 in., rectangle port tube design provides superior exhaust flow over factory manifolds to let your Ford Windsor block engine breathe better, and produce more low-end torque and horsepower.

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.


Application Summary
expand_more

1968-1970 Ford Fairlane 500 CID 302 Naturally Aspirated GAS, 1966-1967 Ford Fairlane Base CID 289 Naturally Aspirated GAS, 1966-1968 Ford Falcon Base CID 289 Naturally Aspirated GAS, 1968-1970 Ford Falcon Base CID 302 Naturally Aspirated GAS, 1971-1977 Ford Maverick Base CID 302 Naturally Aspirated GAS, 1964-1965 Ford Mustang CID 260 GAS, 1964-1968 Ford Mustang CID 289 GAS, 1968-1973 Ford Mustang CID 302 GAS, 1966-1967 Ford Ranchero CID 289, 1968-1973 Ford Ranchero CID 302, 1966-1968 Mercury Comet Base CID 289 Naturally Aspirated GAS, 1968-1969 Mercury Comet Base CID 302 Naturally Aspirated GAS, 1967-1968 Mercury Cougar Base CID 289 Naturally Aspirated GAS, 1968 Mercury Cougar Base CID 302 Naturally Aspirated GAS
