| Crossover Pipe Included | NO |
| Automatic Transmission - Floor | Yes |
| Header Port Shape | Round |
| Variations | 69236, 69830 |
| motor mounts included | NO |
| Cylinder Head | Stock Profile Heads |
| Tuned | NO |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Y-Pipe Included | No |
| Tube Diameter | 1-5/8 in. |
| Reducer Outlet Size | 2-1/2 in. |
| header style | Long Tube |
| Primary Tube Diameter (in) | 1.625 in. |
| Installation Hardware Included | Yes |
| Gasket Or Seal Included | Yes |
| Transmission Mount/Crossmember (Included) | No |
| Flange Thickness | 0.3125 In. |
| bolts/studs included | Yes |
| Header Material | Mild Steel |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Weld-Up | No |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| Drivetrain | 4WD |
| Manual Transmission - Floor | Yes |
| Automatic Transmission - Column | Yes |
| Motor Mounts (Included) | NO |
| Catalytic Converter(s) Included | No |
| Emissions Notes | NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only. |
| with EGR | No |
| Gasket # | 27500 |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Round |
| Power Steering | Yes |
| Exhaust System Dia | 2-1/2 in. |
| with A.I.R. System | No |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Port Shape | Round |
| Tube Size | 1-5/8 in. |
| Tube Length | LONG Tubes |
| Transmission Mount/Crossmember Included | No |
| Finish | Uncoated |
| Replacement Gasket | 27500 |
| Primary Tube Gauge | 16g |
| Notes | 67-91 GM 3/4, 1 Ton Truck, SUV 283-400 4WD |
| Tube Style | Long Tubes |
| Header Construction | MILD STEEL- Standard-Duty |
| reducers included | Yes |
| E.O. # | No |
| Tube Design | Standard |
| Collector Style | Ball and Socket Style (Gasketless) |
| Manual Transmission - Column | Yes |
| Collector Bolts Included | Yes |
| Header Fasteners Included | Yes |
| Quantity | Sold as a pair. |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Tube Material Thickness | 16g |
| Mounting Hardware Included | Yes |
| Material | Mild Steel |
| Replacement Head Flange Gasket | 27500 |
| Air Conditioning | Yes |
| Collector Attachment | 3 in. |
| Flange Style | Standard |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Part Terminology | Exhaust Header |
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These uncoated, LONG-TUBE headers fit 1967-1991 4WD (only) 1/2 and 3/4 ton Chevy Trucks, Blazers and Suburbans, powered by a Small Block Chevy engine (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

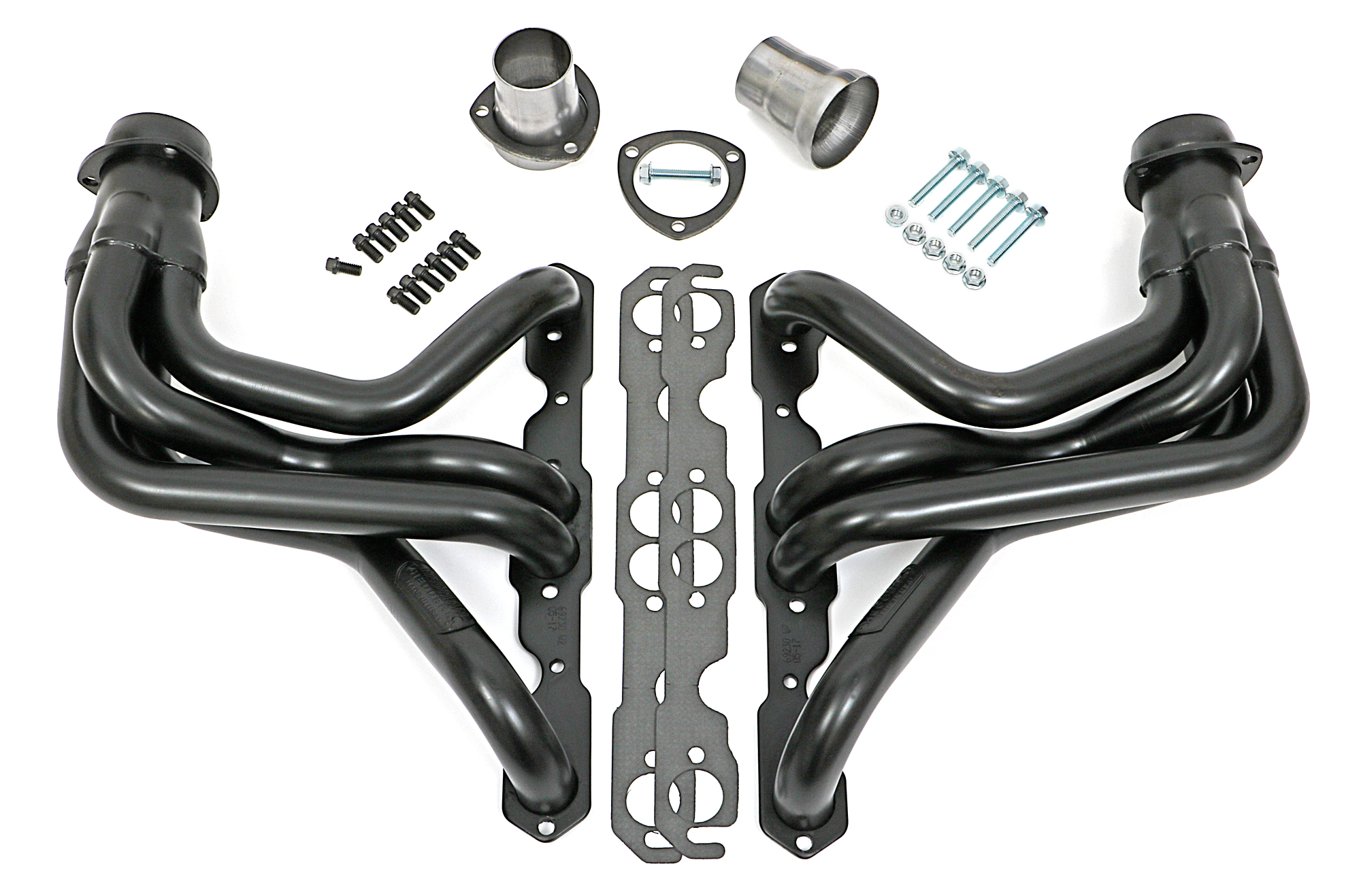

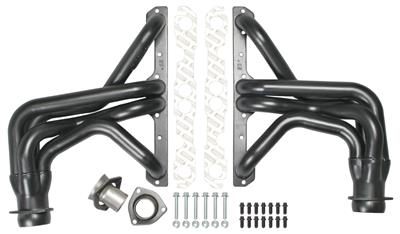

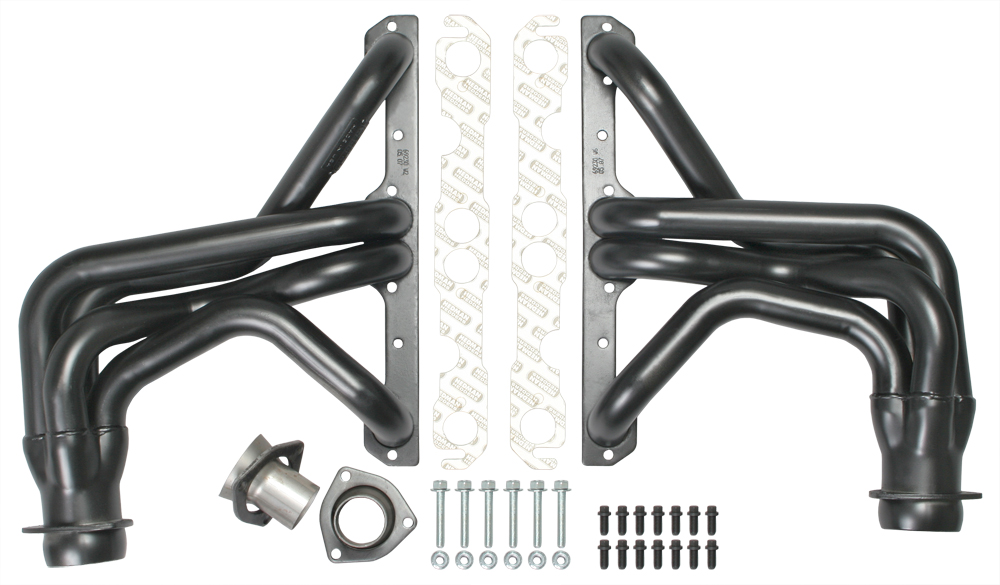

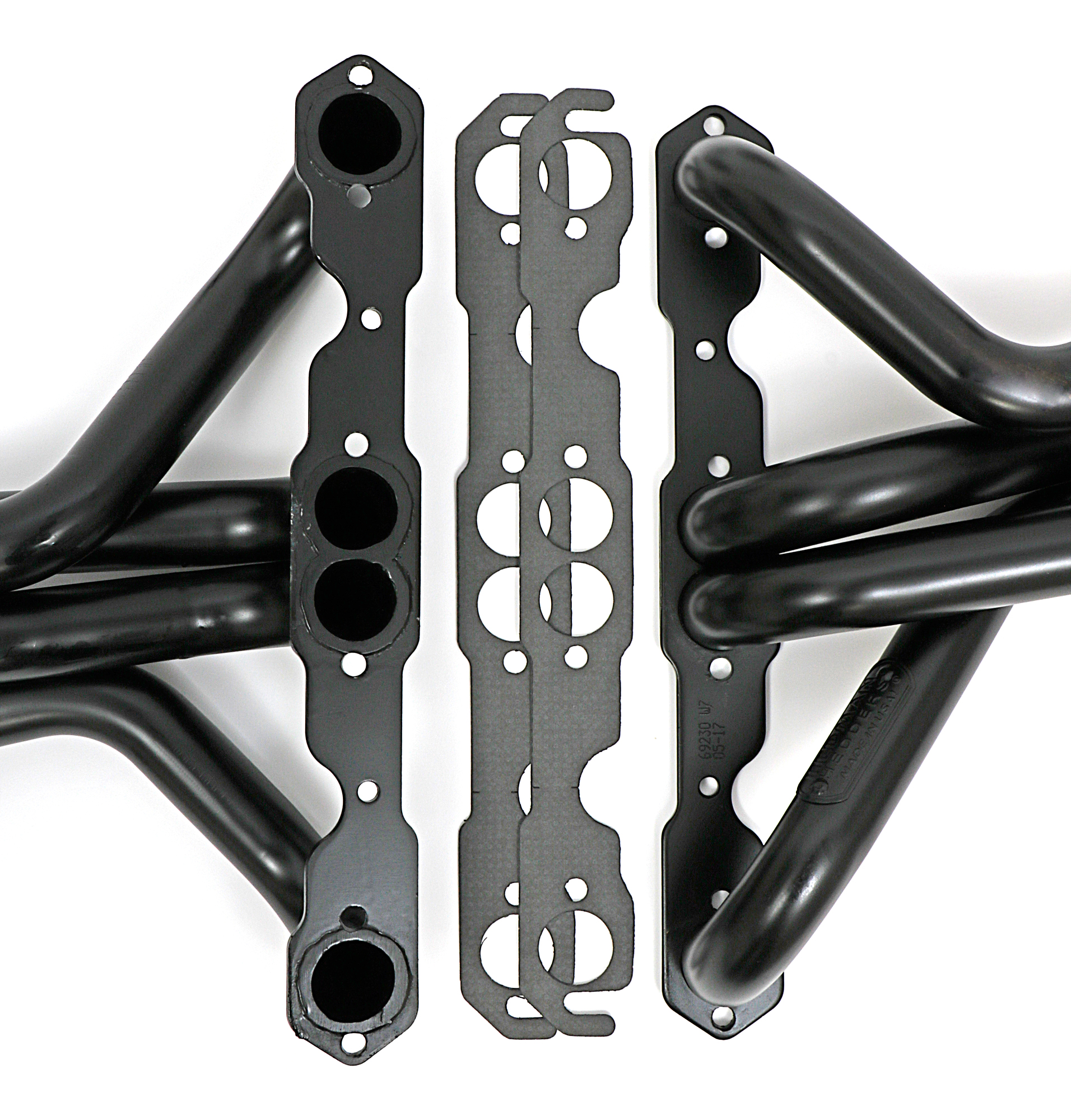

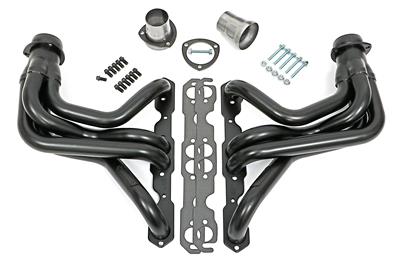

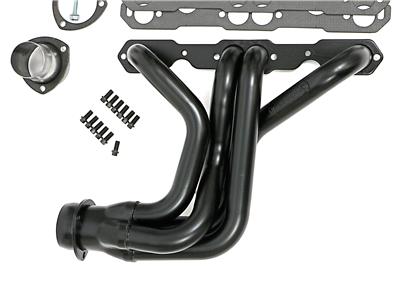

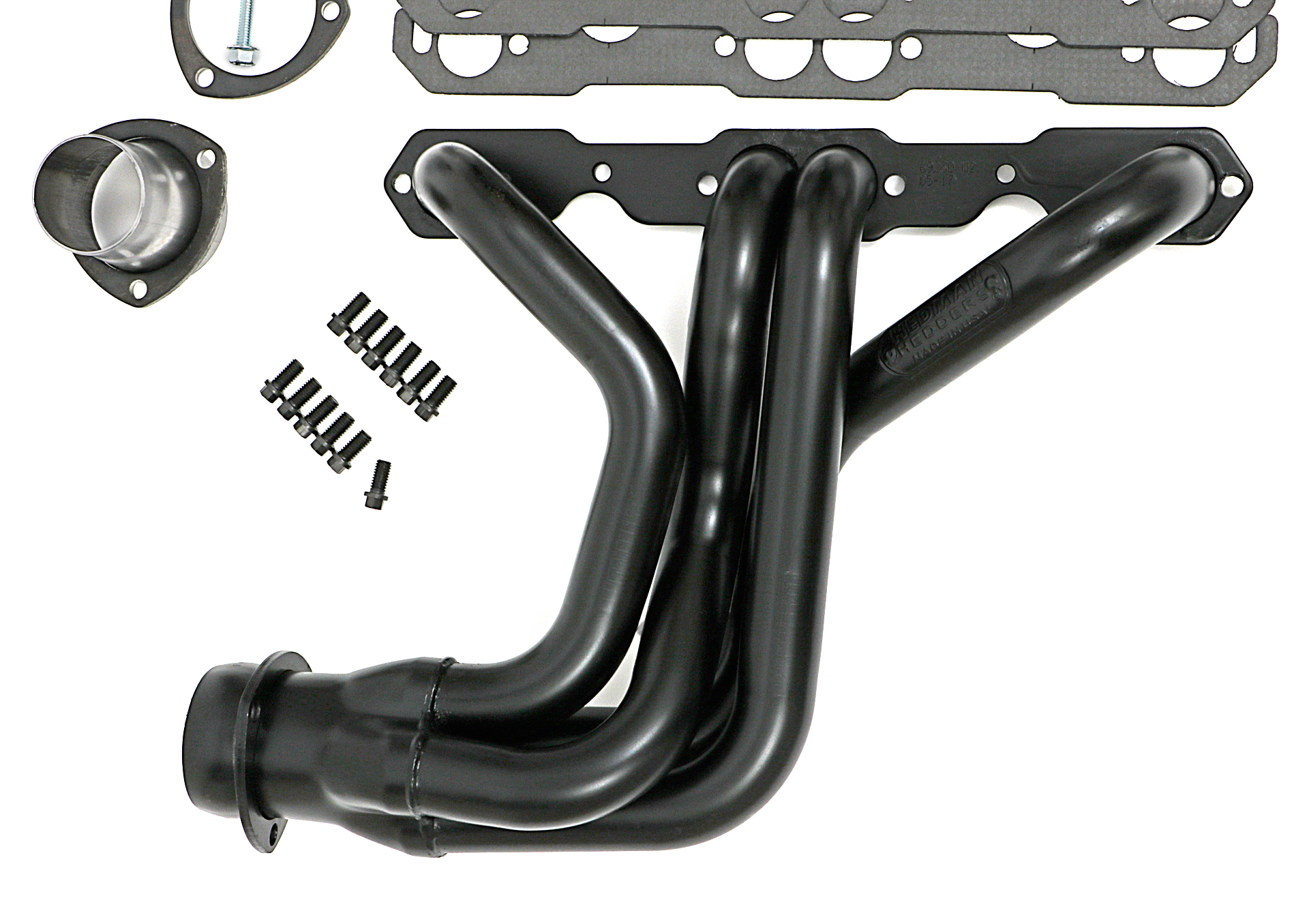

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
