| Crossover Pipe Included | NO |
| Automatic Transmission - Floor | Yes |
| Header Port Shape | Round |
| Transmission Compatibility | Automatic Transmission |
| Oxygen Sensor Port | No |
| Vehicle Family | Chevy/GMC S10/S15 Family; 1982-04 |
| Cylinder Head | Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
| O2 Provision | No |
| Tuned | NO |
| Head Type | Angle Plug Heads |
| Finish Type | BLACK MAXX- Black Ceramic-Metallic Coating |
| Y-Pipe Included | No |
| Engine | Chevy SB 283-400 (Gen 1) 1958-86 |
| Tube Diameter | 1-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| header style | Long Tube |
| Primary Tube Diameter (in) | 1.50 in. |
| Installation Hardware Included | Yes |
| Gasket Or Seal Included | Yes |
| Flange Thickness | 0.375 In. |
| Header Material | Mild Steel |
| Weld-Up | No |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Drivetrain | 2WD Only! |
| Vehicle Use | Chevy S10/S15 |
| Manual Transmission - Floor | No |
| Automatic Transmission - Column | No |
| Catalytic Converter(s) Included | No |
| Emissions Notes | NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only. |
| with EGR | No |
| Gasket # | 27030 |
| Oxygen Sensor Bung Included | No |
| Header Finish | BLACK MAXX Satin Black Ceramic-Metallic |
| Port Style | Round |
| <i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i> | CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN! |
| Cylinder Head Port Shape | Round |
| Power Steering | Yes |
| Exhaust System Dia | 2-1/2 in. |
| with A.I.R. System | No |
| Package Contents | Set of Headers, mounting hardware and gaskets |
| Tube Size | 1-1/2 in. |
| Tube Length | LONG Tubes |
| Finish | BLACK MAXX Satin Black Ceramic-Metallic |
| Replacement Gasket | 27030 |
| Primary Tube Gauge | 16g |
| Tube Style | Long Tubes |
| Header Construction | MILD STEEL- Standard-Duty |
| reducers included | Yes |
| KEY FEATURE | Engine Swap Headers |
| E.O. # | No |
| Tube Design | Standard |
| Collector Style | Ball and Socket Style (Gasketless) |
| Manual Transmission - Column | No |
| Collector Bolts Included | Yes |
| Header Fasteners Included | Yes |
| Quantity | Sold as a pair. |

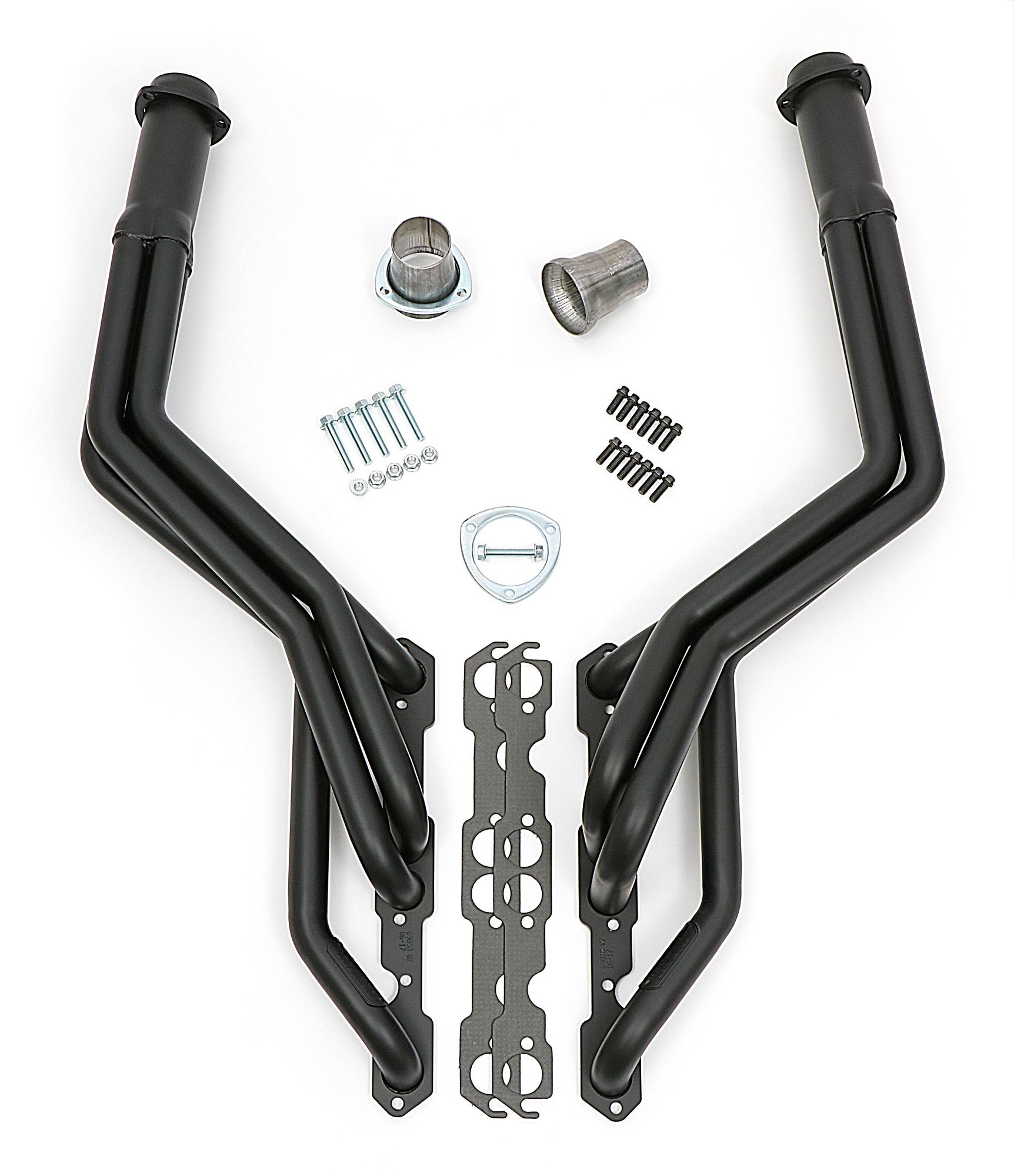

| Title | HEDMAN HEDDERS S10 / SB CHEVY V8, UNDER CHASSIS DESIGN ENGINE SWAP HEADERS SWAP HEADERS; 1-1/2 IN. LONG TUBE- BLACK MAXX CERAMIC COATED |
| Tube Material Thickness | 16g |
| Material | Mild Steel |
| For Use On | 2WD Models Only. |
| Air Conditioning | Yes |
| Collector Attachment | 3 in. |
| O2 Sensors Included | No |
| Flange Style | Standard |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Part Terminology | Exhaust Header |
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and no one has more experience designing quality fitting and performing headers than Hedman Hedders. These headers are a long tube design set of headers that have been designed specifically for installing a Gen 1 SB Chevy motor into 1982-04 2WD Chevy S10 / Blazer, and GMC S15 / Jimmy trucks.
The smooth-flowing mandrel-bent, long tube, under frame design gives your engine all the exhaust flow it will need to produce maximum horsepower and torque, and not just from your headers, but all of your performance add-ons. If your engine can't efficiently expel spent combustion gasses, your high dollar heads, intake manifold, blower, or even your cold air intake system, will be bottle-necked, limiting the amount of torque you can produce.
The ball & socket style collector integrated into these Hedmans means there's no collector gasket to blow out.
These headers come from the factory with Hedman's durable Black Maxx, satin black ceramic-metallic finish. This coating will withstand operating temperatures up to 1400° F. The finish retains more exhaust heat inside the header tubes to keep underhood temperatures down, and increase exhaust gas flow speeds. This coating is warrantied for a full 5 years, while the header materials and construction are factory-backed by Hedman's Limited Lifetime Warranty.
