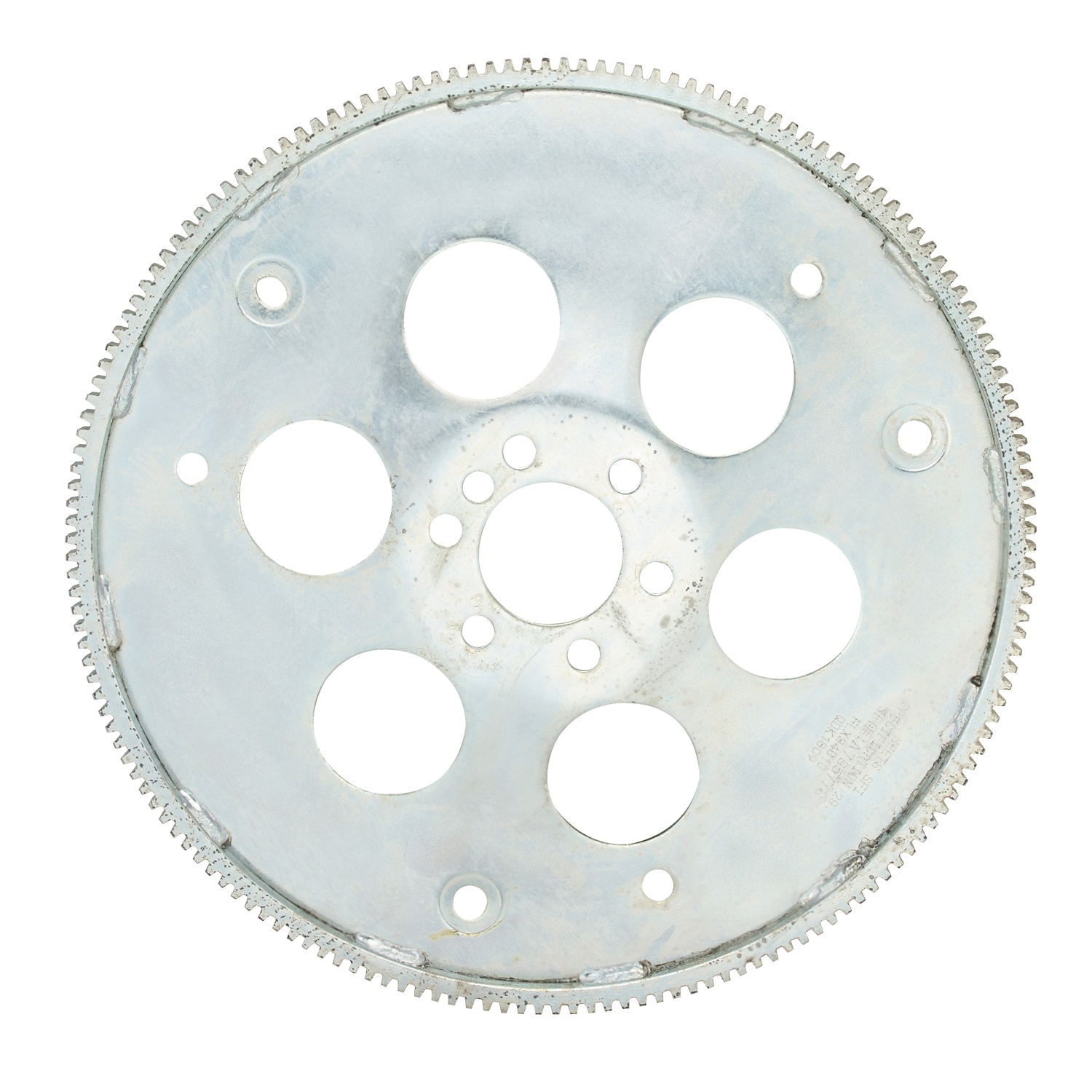

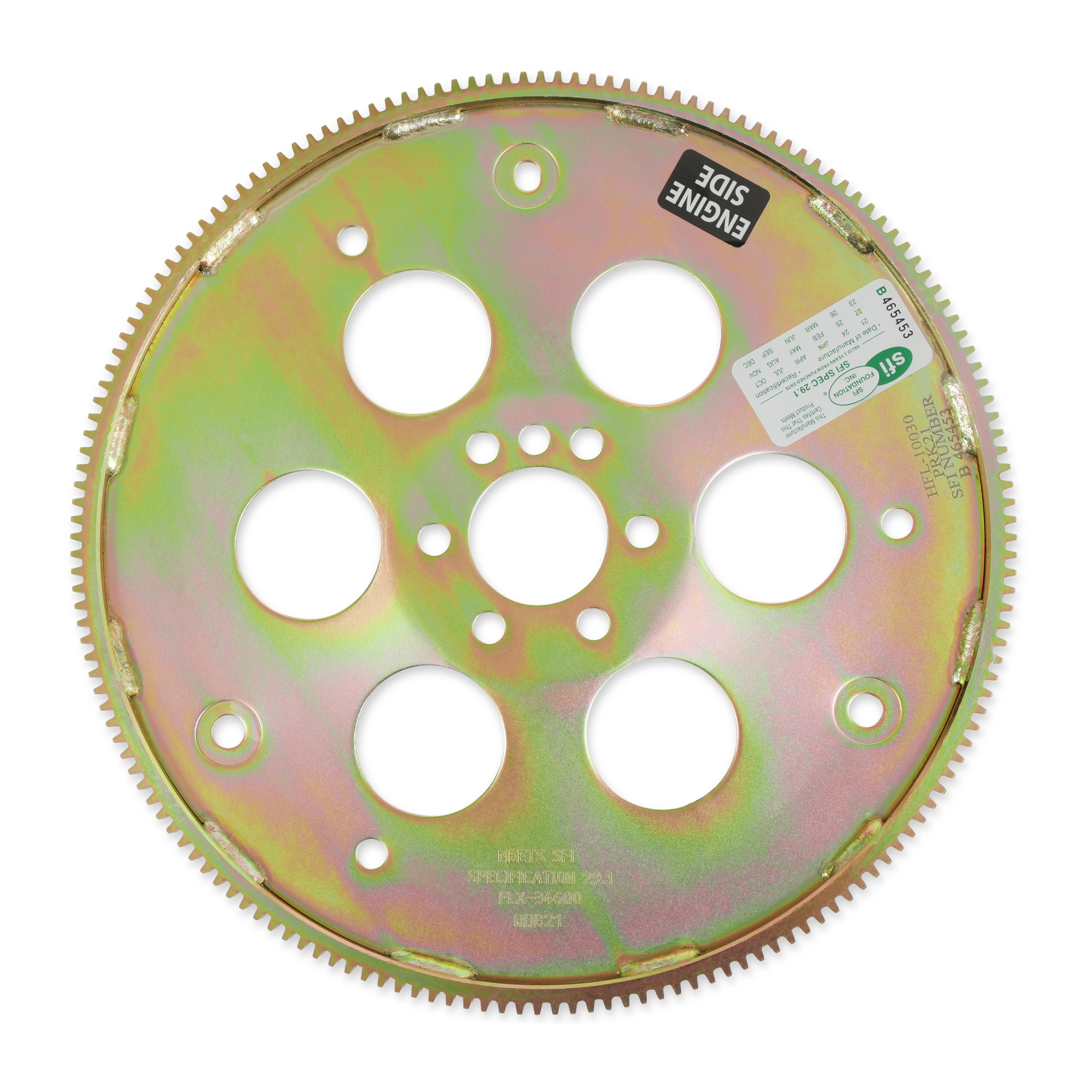

Hays Steel SFI Certified Flexplate - GM LS Engines
Part # 10-030 | Line Code: HYS
Hays
Hays

$172.59
$172.59
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
SFI Approved Yes
Emission Code 5
Category Transmission
Warranty 90 Day
SFI Certification 29.1
Transmission Category
Material Steel
Bolt Pattern 4L60E/TH350
Engine Balance Internal
Brand Hays
Center Bore (Register Diameter) 2.066"
Product Type Flexplates
Sub Category Flexplate
# of Teeth 168
Application Chevrolet
Engine GM Small Block Gen III/IV (LS Based)
Part Type Automatic Transmission Flexplate
Part Terminology Automatic Transmission Flexplate

Features & Benefits
expand_more
Constructed of thicker than stock steel plate to withstand the stress of high stall speed converters and high RPM engine Securely welded ring gear with dual bolt pattern for use with either Powerglide or Turbo-Hydromatic transmission Meets SFI specification 29.1 for racing Hays heavy-duty flexplates for high performance and competition engines are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the thicker Hays flexplate handles the force. These H.D. flexplates are supplied with a ring gear that is securely welded in place and feature dual bolt patterns for use with either a Powerglide or Turbo-Hydromatic torque converter. All Hays heavy-duty flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.
