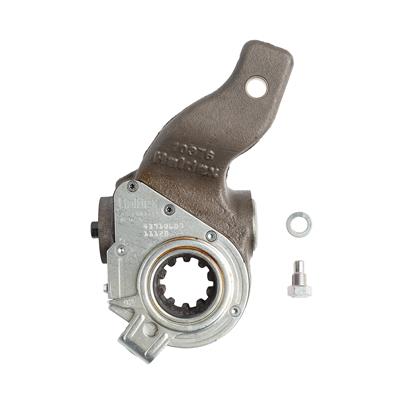

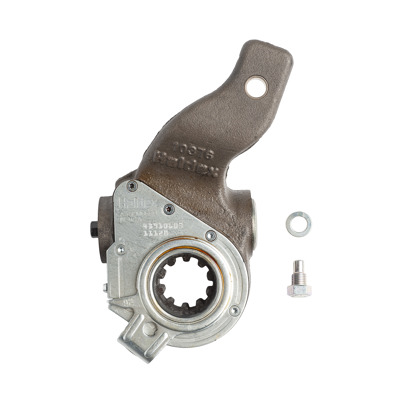

Air Brake Automatic Slack Adjuster
Part # 30010012 | Line Code: HDX
brandNameImage
brandNameImage

$344.95
$344.95
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Freight Class 70
Offset Direction 1-1/2"
Grease Fittiing Location 180°
Arm Length 5.5
Offset 1.5
Body Angle 22.5
OEM Part Number 419-10603
Spline Diameter 1.5
Arm Hole Diameter 0.5
Grease Fittiing Type Straight
Anchor Bracket Style Stud
Bracket Number 42710579
Heavy Duty Supplier Yes
Prop 65 Short Warning Cancer & reproductive
Prop 65 Y
Spline Count 10
Prop 65 Applies Y
Grease Fitting Type Straight
Supplier VMRS Code 013002035
Pin Size 0.5
Grease Fitting Location 180°
Duty Type Heavy Duty
Part Terminology Air Brake Automatic Slack Adjuster

Features & Benefits
expand_more
As the very first clearance-sensing brake adjuster, the Haldex AA1 offers customers a higher level of technical efficiency, safety and reliability. It is designed to adjust exactly and gradually when it matters, maintaining a constant clearance between lining and drum, whatever the conditions or driver's braking style. The adjustment mechanism is integrated into a robust, high-quality housing that protects it from knocks, dirt and moisture and assures a long service life even in hostile driving environments. Through its innovative self-setting flexible design, the Haldex S-ABA Automatic Brake Adjuster offers two benefits which revolutionize brake adjuster fitting: a free selection of control arm position and error-free installation. The Haldex S-ABA functions correctly whatever the position of the control arm. Previously a brake adjuster could only function properly with the control arm in one predesignated position. Self-setting means no more time-consuming adjustments during installation to fix the control arm to achieve the correct predetermined running clearance.

Application Summary
expand_more

TRANSIT AA1. Opposite Side Brake Adjuster: 30010013
