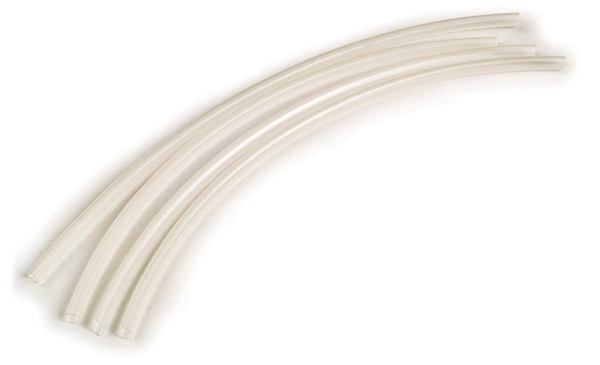

Dual Wall 3:1 Flexible Adhesive Lined Heat Shrink Tubing, 6" Long
Part # 84-5031 | Line Code: GTL
brandNameImage
brandNameImage

$13.99
$13.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Inner Wall Construction Adhesive Lined
Outer Wall Construction Flexible
Size 1/4"
Heavy Duty Supplier Yes
Moisture Resistancy High
Color Clear
Material Cross linked Polyolefin
Duty Type Heavy Duty
ROHS Yes
Standards CSA LR31929,UL E35586
Gauge 16-10 GA
Prop 65 Label Required N
Type Dual Wall
Length 6"
Voltage 600V
Shrink Ratio 3:1
Alliance Keywords Heat Shrink, Tubing, tube thermorétrécissable
Stud or Tab Size 1,4"
Operating temperature -40°C to 110°C (-40°F to 230°F)
Part Terminology Heat Shrink Tubing

Features & Benefits
expand_more
Flexible Dual Wall is an adhesive lined heat shrink tubing that provides moisture resistance, strain relief and electrical insulation for splices, terminations, breakouts and mechanical connections. The outer wall is semi-rigid, cross-linked polyolefin, while the inner wall is an adhesive lining that flows with the application of heat. This moisture resistant tubing provides flexibility to insulate and protect irregular shape products. It also provides rugged protection from chemicals, abrasion, vibration and flexing.
