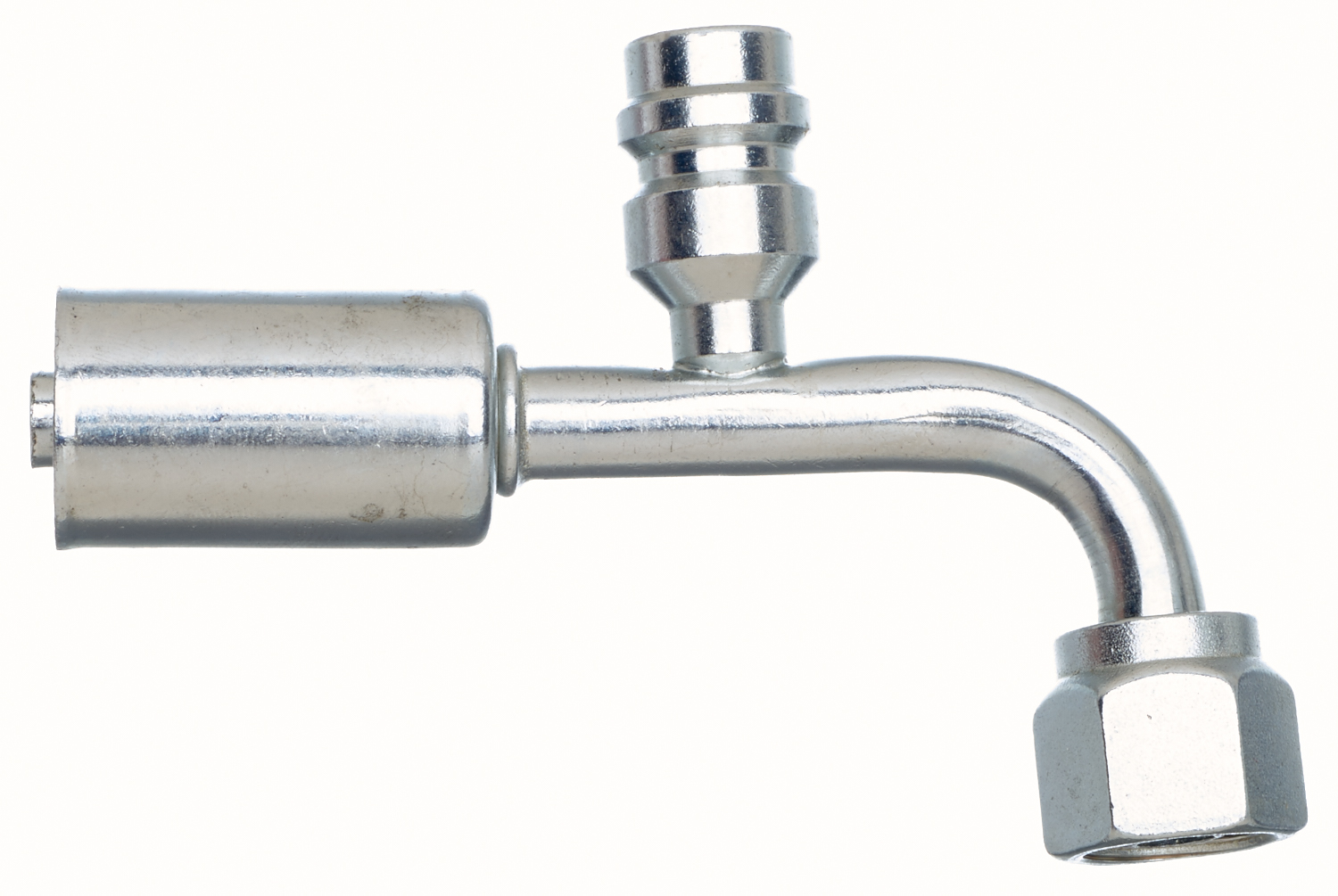

Female SAE Tube O-Ring Nut Swivel-R134a Svc Port-90 Bent Tube-Alum PolarSeal ACA
Part # G45589-0808 | Line Code: GAT
brandNameImage
brandNameImage

$39.99
$39.99
error
Not Fitted
Shipping

Product Details
expand_less
Coupling Description PolarSeal ACA Female SAE Tube O-Ring Nut Swivel w/ R134a Service Port - Aluminum
Cut Off (in) - C 2.37
Heavy Duty Supplier Yes
Hose Inside Diameter (in) 1.5
Drop Length 1.31
Thread Size 3/4-16
Drop (in) - T 1.31
Hose Recommendation Gates PolarSeal Refrigerant Hose
Length 3.62
Inside Diameter .406
Length (in) 3.62
Length (in) - L 3.62
Industrial Description 8ACA-8FTON134SP90
Part Terminology A/C Refrigerant Hose Fitting

Features & Benefits
expand_more
PolarSeal ACA couplings are for use with Gates PolarSeal air conditioning hose. ACA couplings are available in many of the most popular styles of aluminum couplings, with select styles available in zinc-plated steel. Available in various bend angles and common stem sizes -6, -8, -10, and -12. Utilize Gates PolarSeal Portable Crimper, or one of Gates bench top crimpers, to make crimped AC assemblies using ACA couplings and PolarSeal hose. O-Ring not included. Must be ordered separately.
