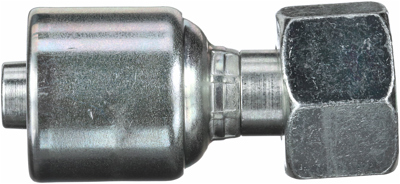

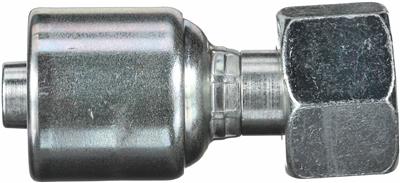

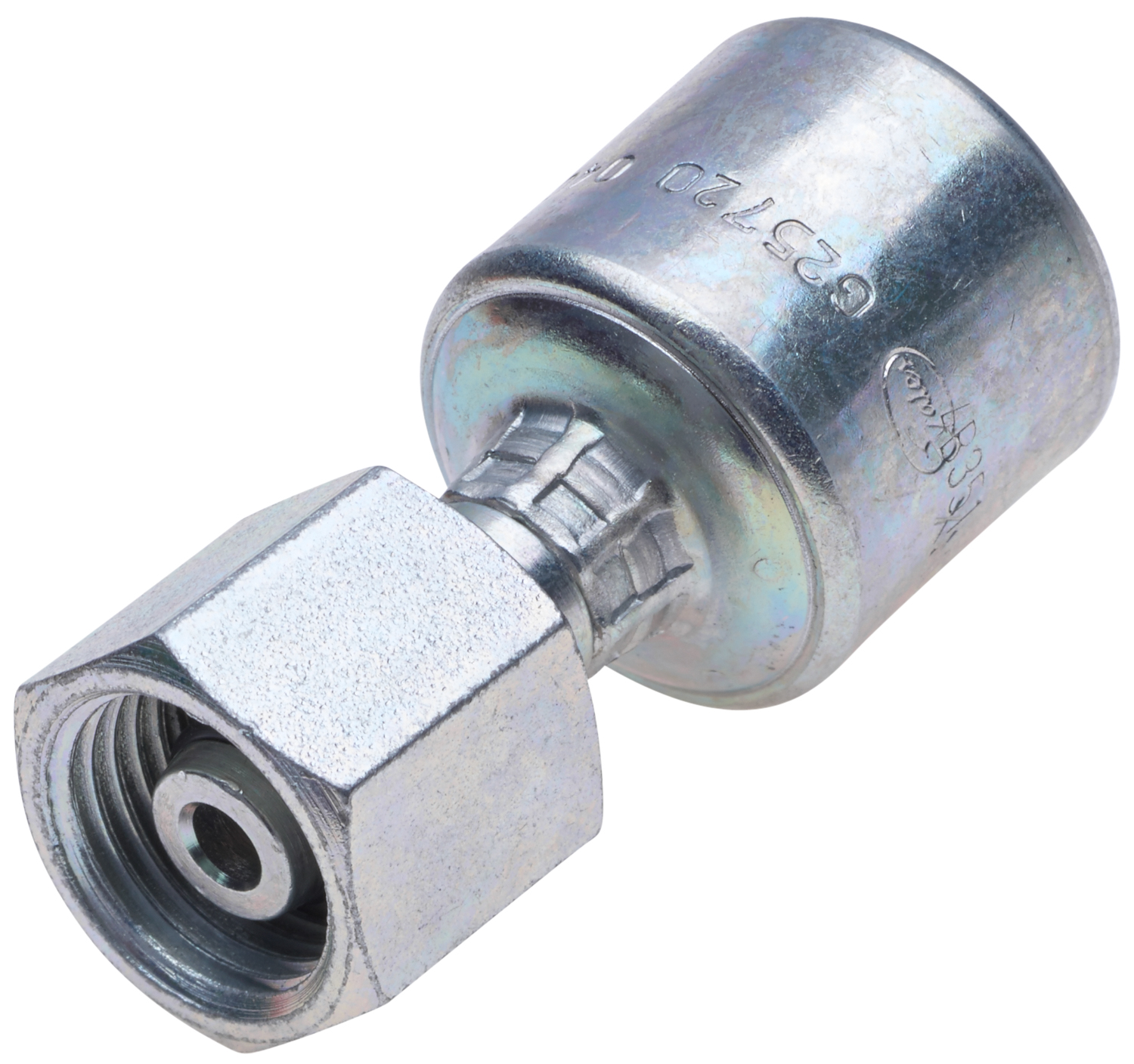

| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring |
| Seal Type | Mated Angle w/O-Ring |
| Heavy Duty Supplier | Yes |
| Seated Angle | 24 |
| Hose Inside Diameter (in) | .25 |
| Gender | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex (mm) - H2 | 24 |
| Inside Diameter | 6.4 |
| Length (in) | 2.19 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Tube Outside Diameter (mm) - A1 | 12 |
| Cut Off (mm) - C | 29.7 |
| Industrial Description | 4G-12FDHORX |
| Cut Off (in) - C | 1.17 |
| DIN Series | Heavy |
| Hose Inside Diameter (mm) | 6.4 |
| Termination | DIN |
| Thread Size | M20X1.5 |
| Seat Angle | 24 |
| Bent Tube Angle | Straight |
| Length | 2.19 |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Swivel | Yes |
| Length (MM) | 55.7 |
| Outside Diameter | 12 |
| Part Terminology | Hydraulic Coupling / Adapter |
