| Length | 99 |
| Inside Diameter | 15.9 |
| Flange Diameter | 1.35 |
| Flange Thickness | .27 |
| Seal Type | O-Ring |
| Drop Length | 55 |
| Hose Inside Diameter (in) | .625 |
| Hose Inside Diameter (mm) | 15.9 |

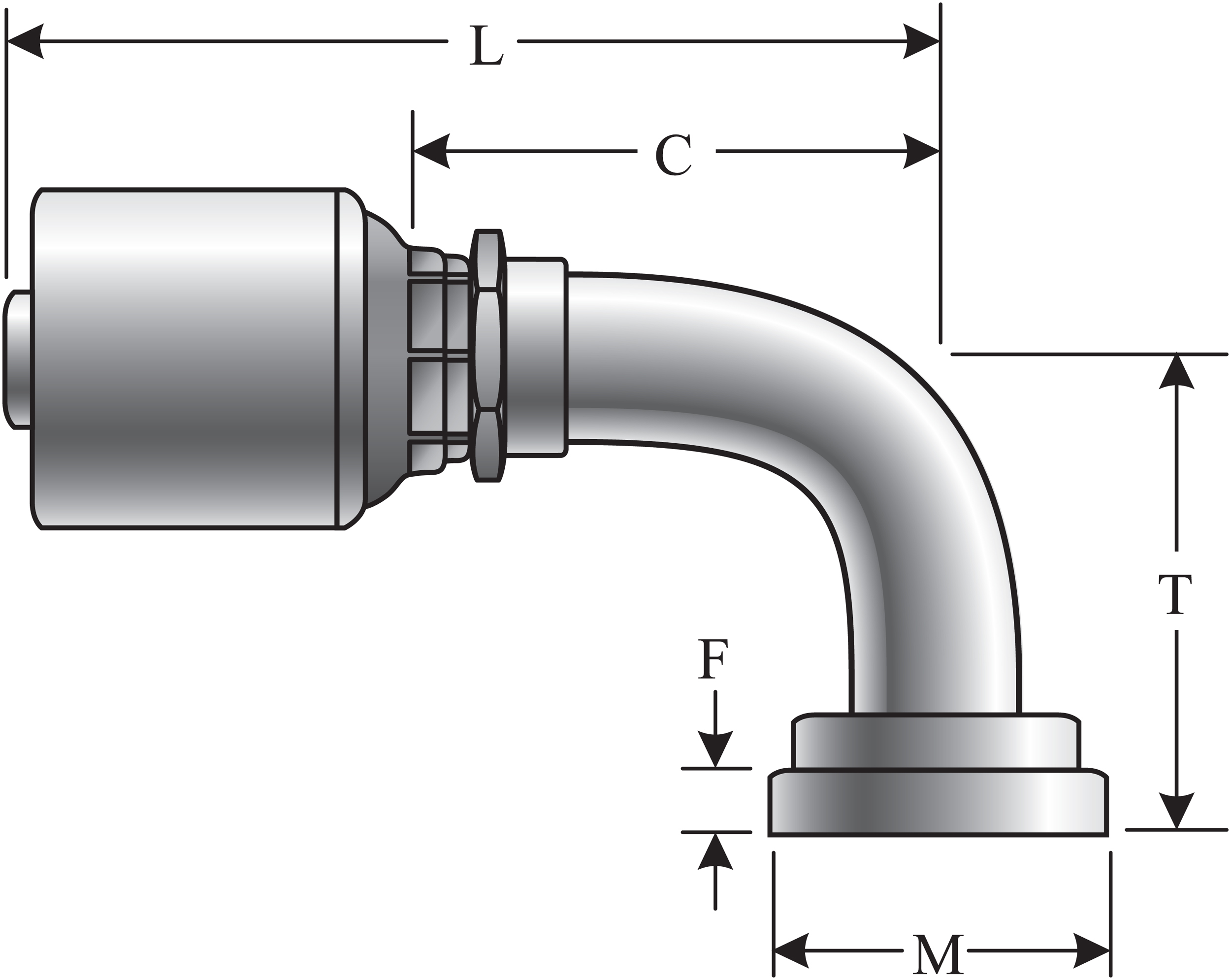

| Cut Off (mm) - C | 61.5 |
| Cut Off (in) - C | 2.42 |
| Flange Head Thickness (mm) - F | 6.9 |
| Flange Head Thickness (in) - F | .27 |
| Flange Diameter (mm) - M | 34.3 |
| Flange Diameter (in) - M | 1.35 |
| Drop (in) - T | 2.17 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Drop (mm) - T | 55 |
| Industrial Description | 10G-10FLK90 |
| Heavy Duty Supplier | Yes |
| Length (MM) | 99 |
| Bent Tube Angle | 90 |
| O-Ring Location | Flange Groove |
| Termination | Komatsu |

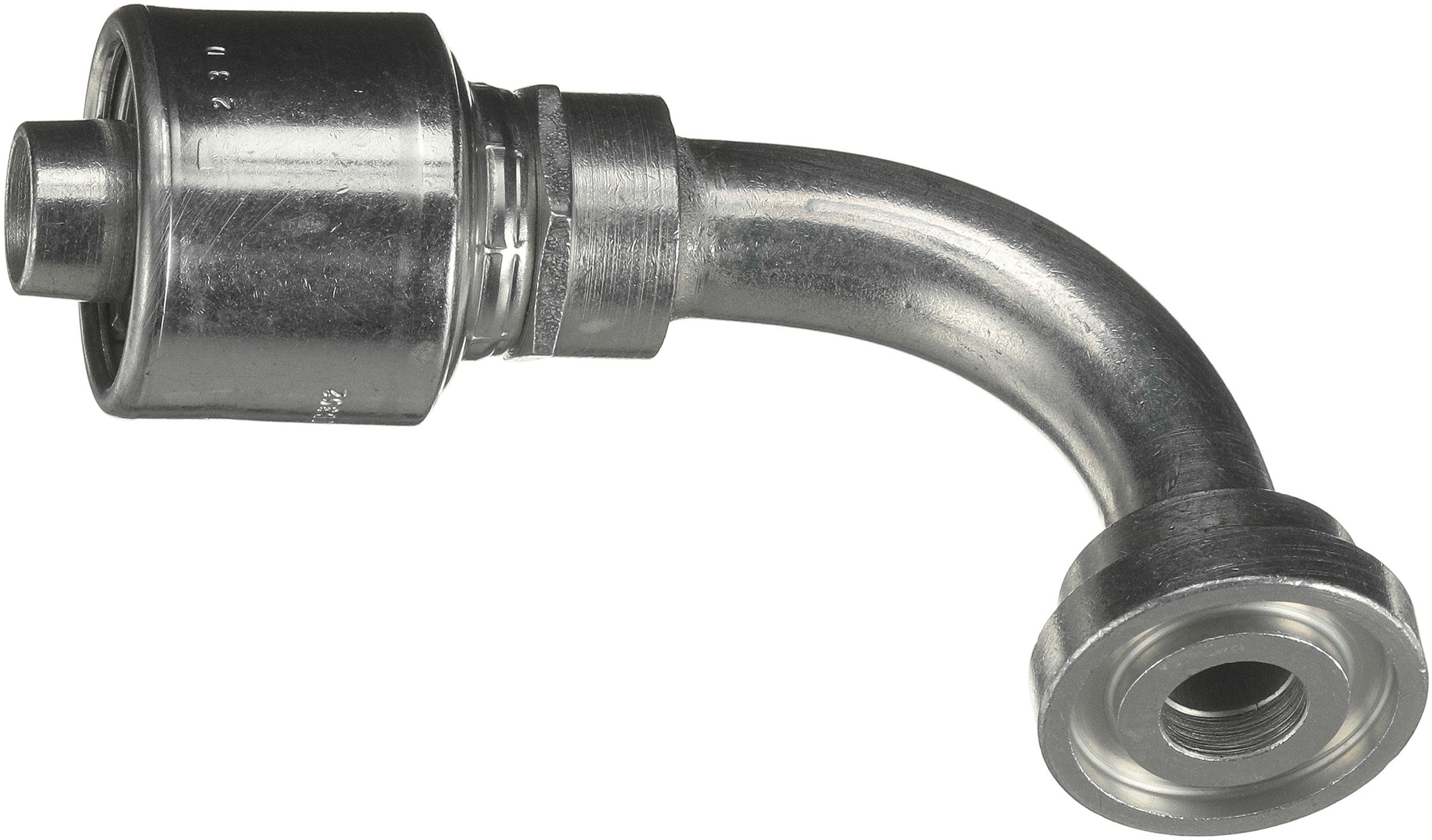

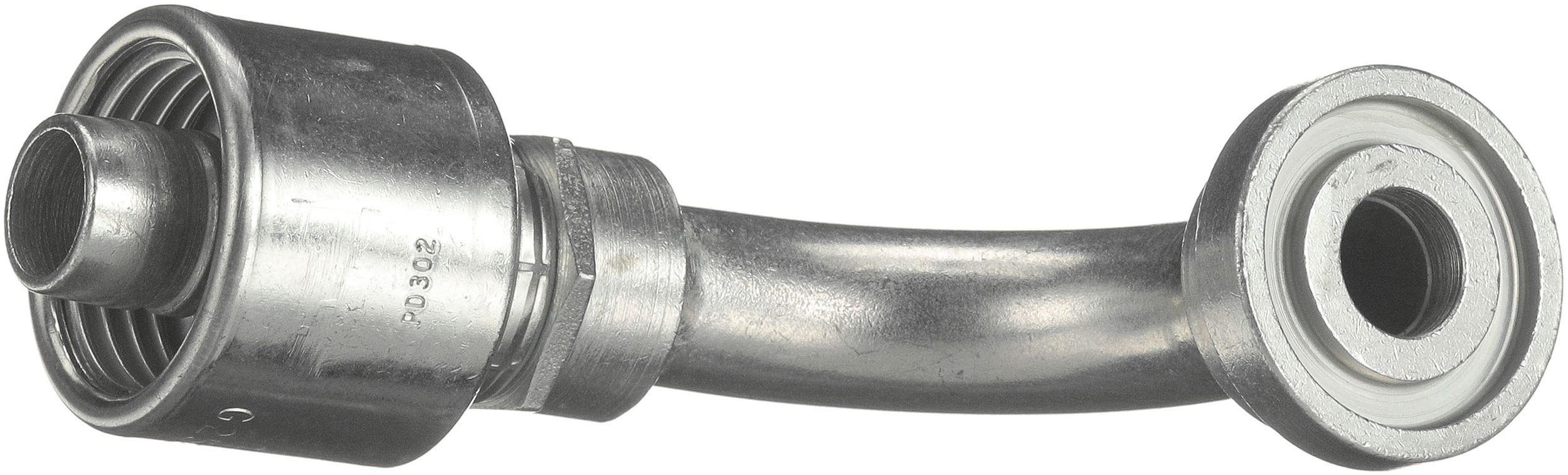

| Coupling Description | MegaCrimp Komatsu O-Ring Flange - 90 Bent Tube |
| Length (in) | 3.9 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Part Terminology | Hydraulic Coupling / Adapter |
