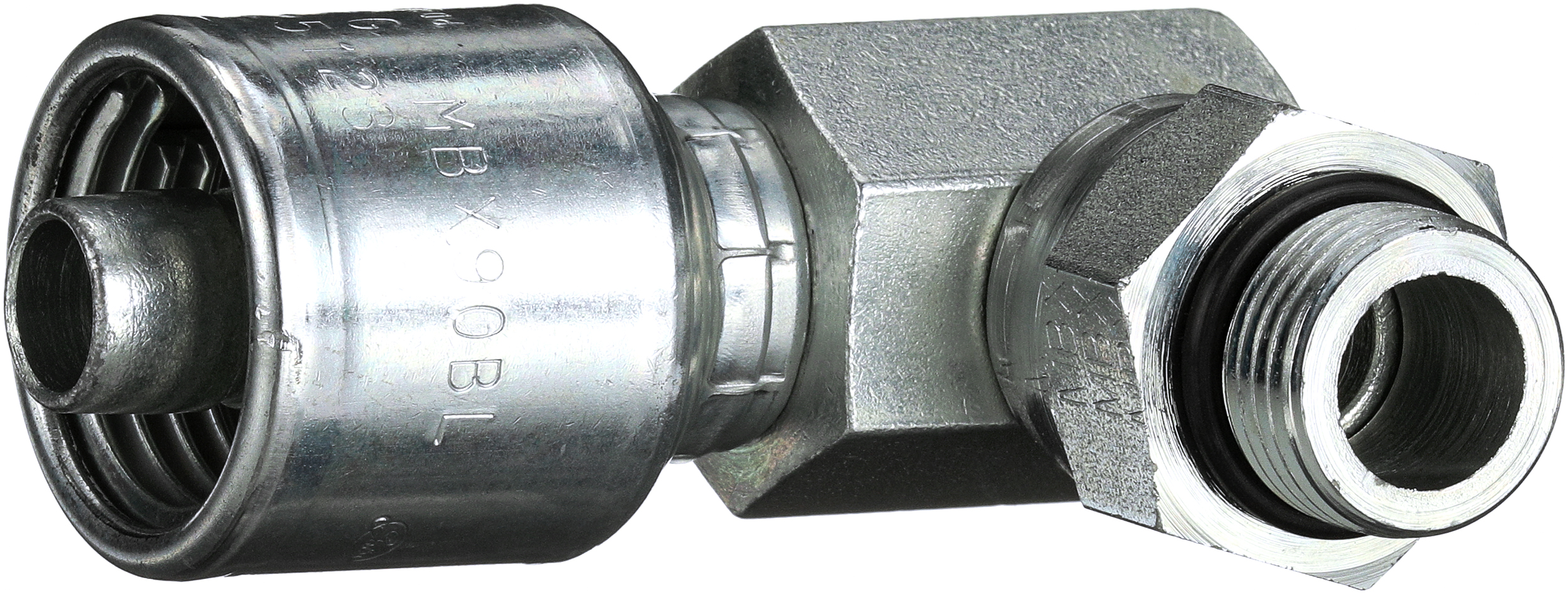

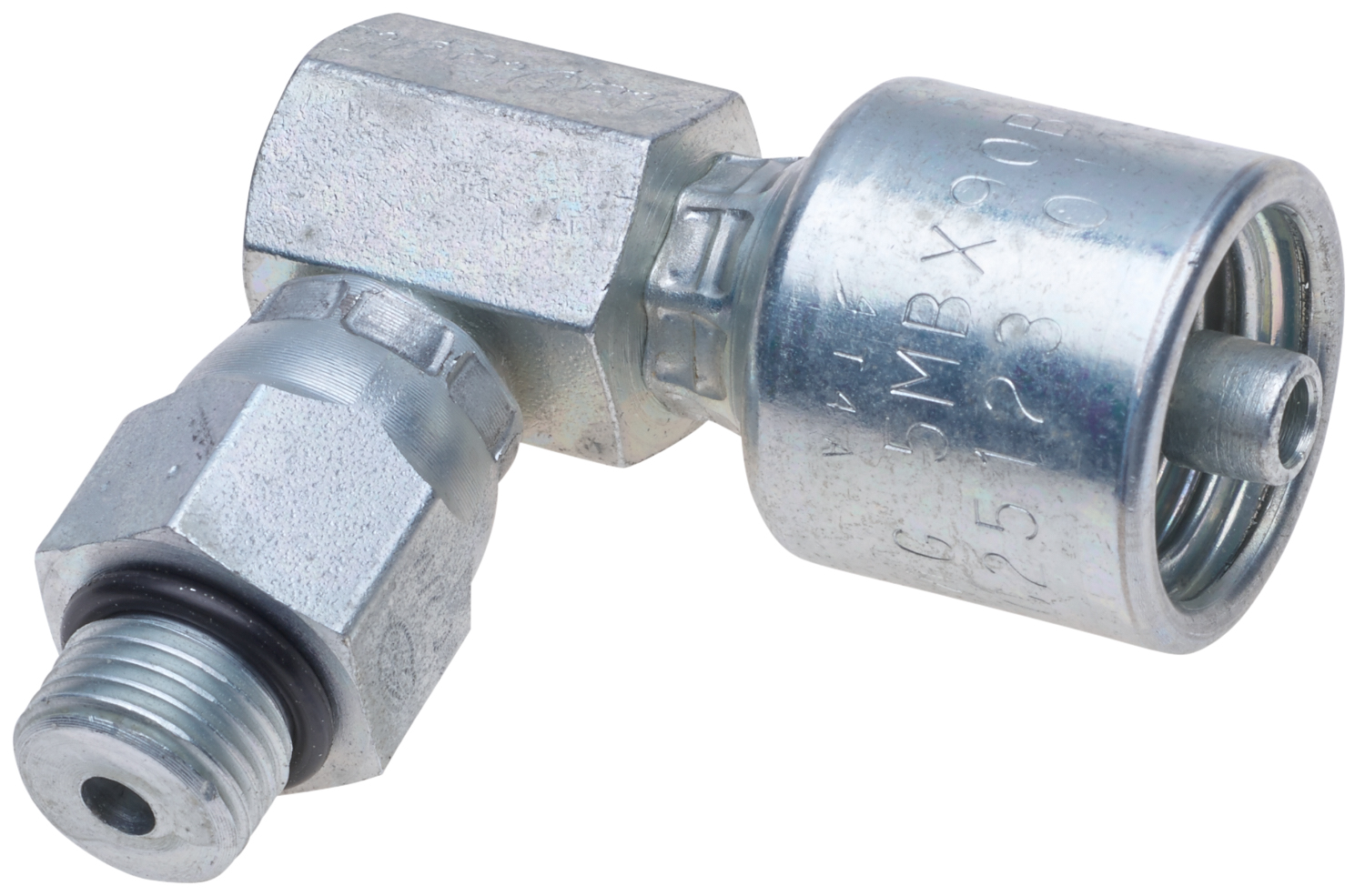

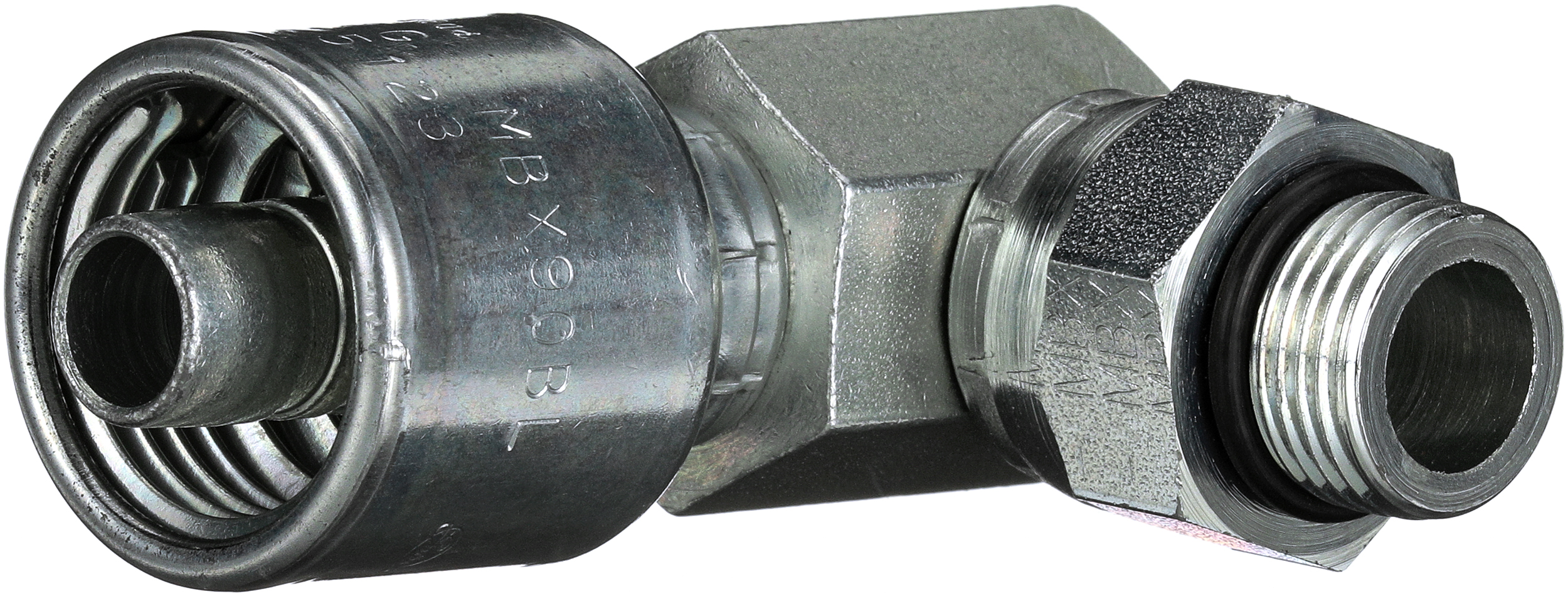

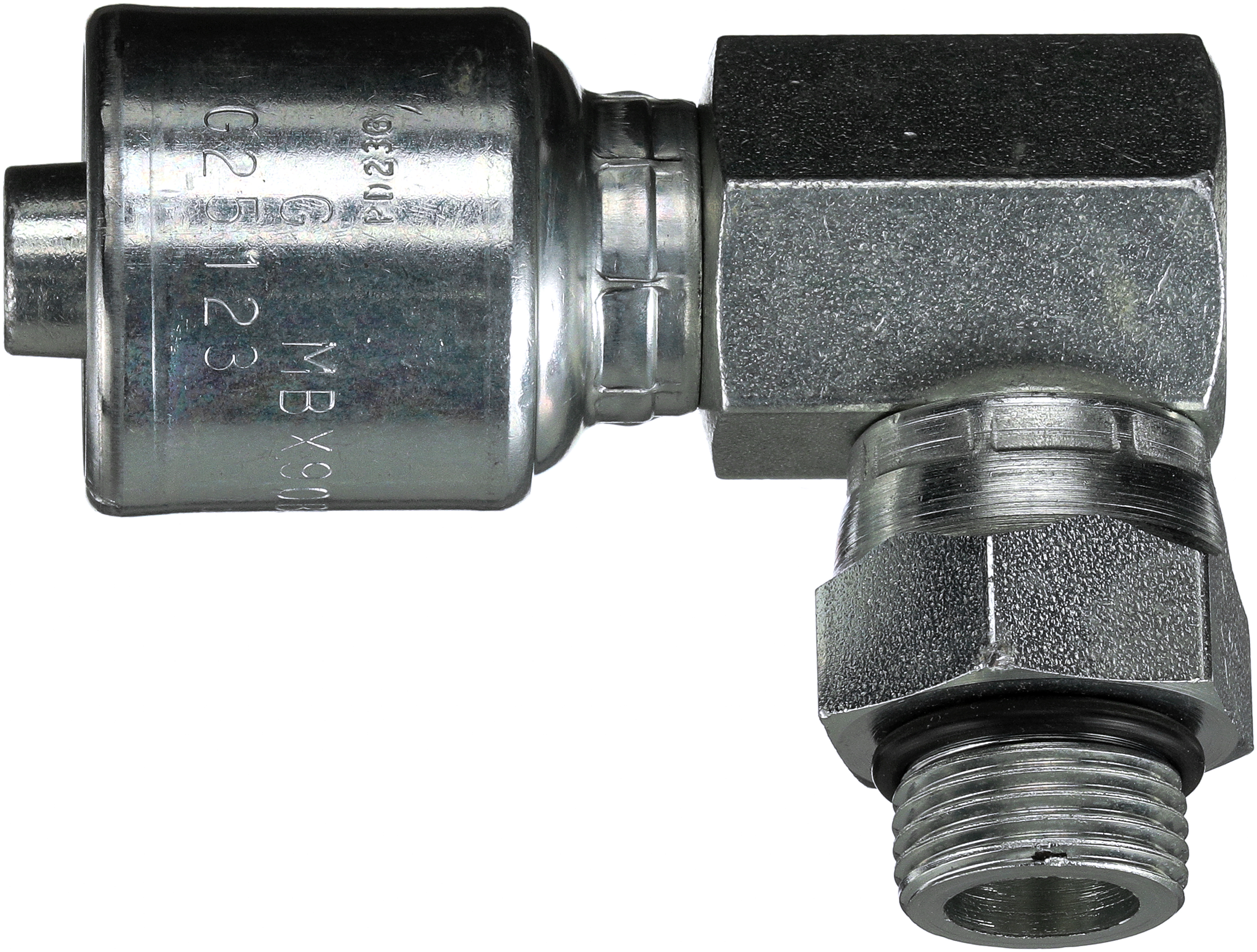

| Coupling Description | MegaCrimp Male O-Ring Boss Swivel - 90 Block |

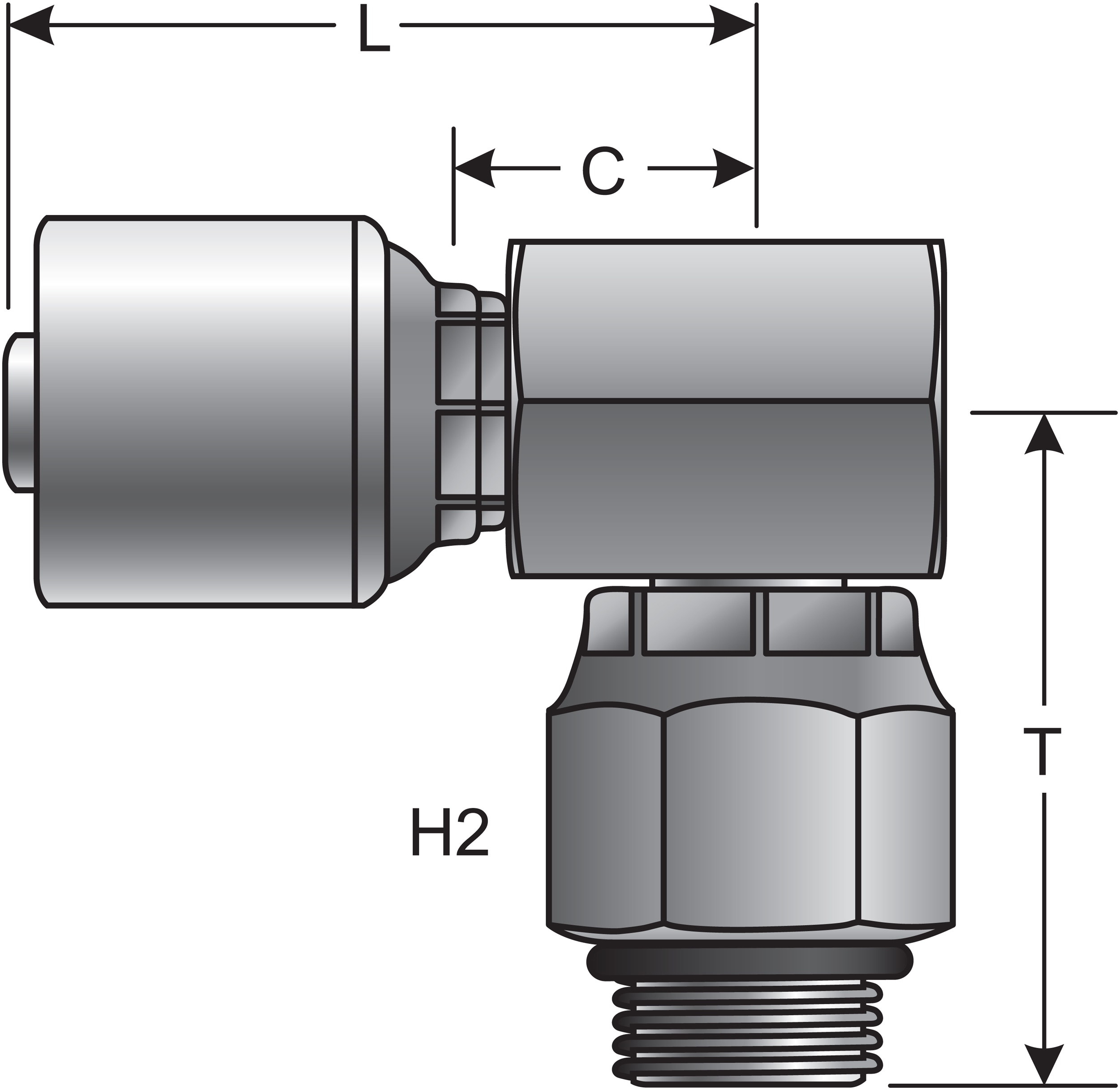

| Cut Off (in) - C | .85 |
| Hose Inside Diameter (mm) | 9.5 |
| Seal Type | O-Ring |
| Nut Hex (in) - H2 | 1 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .375 |
| Drop Length | 42.8 |
| Thread Size | 7/8-14 |
| Gender | Male |
| Drop (in) - T | 1.69 |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Bent Tube Angle | 90 Block |
| Length | 1.95 |
| Inside Diameter | 9.5 |
| O-Ring Location | Outside O-Ring Boss |
| Length (in) | 1.95 |
| Swivel | Yes |
| Drop (mm) - T | 42.8 |
| Length (MM) | 49.6 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 21.7 |
| Industrial Description | 6G-10MBX90BL |
| Part Terminology | Hydraulic Coupling / Adapter |
