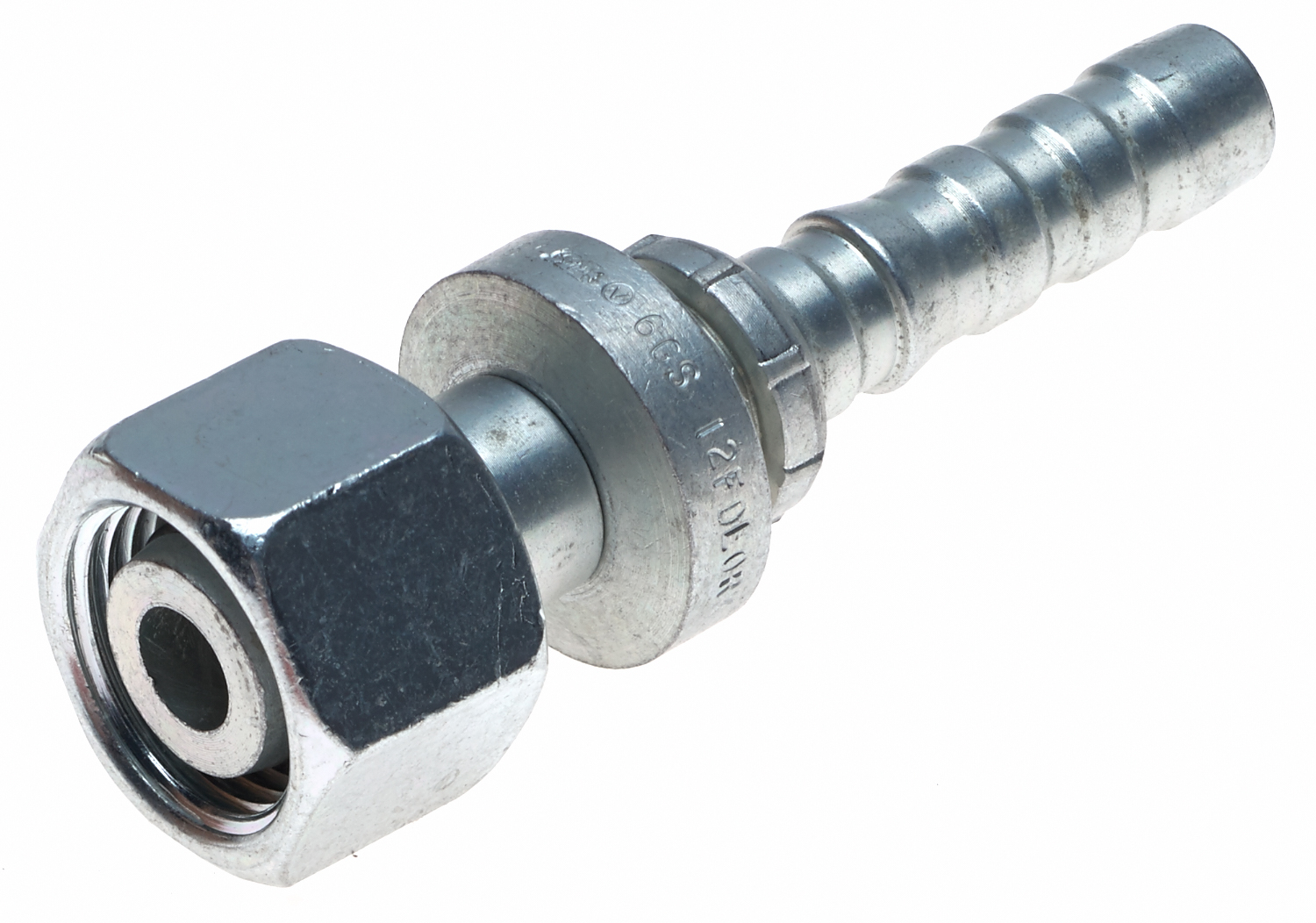

| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Light Series w/ O-Ring |
| Cut Off (in) - C | 1.91 |
| Hose Inside Diameter (mm) | 25.4 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | 1 |
| Thread Size | M36X2.0 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex (mm) - H2 | 41 |
| Length | 4.13 |
| Inside Diameter | 1 |
| Length (in) | 4.13 |
| Length (MM) | 104.9 |
| Outside Diameter | 28 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Tube Outside Diameter (mm) - A1 | 28 |
| Cut Off (mm) - C | 48.6 |
| Industrial Description | 16GS-28FDLORX |
| Part Terminology | Hydraulic Coupling / Adapter |
