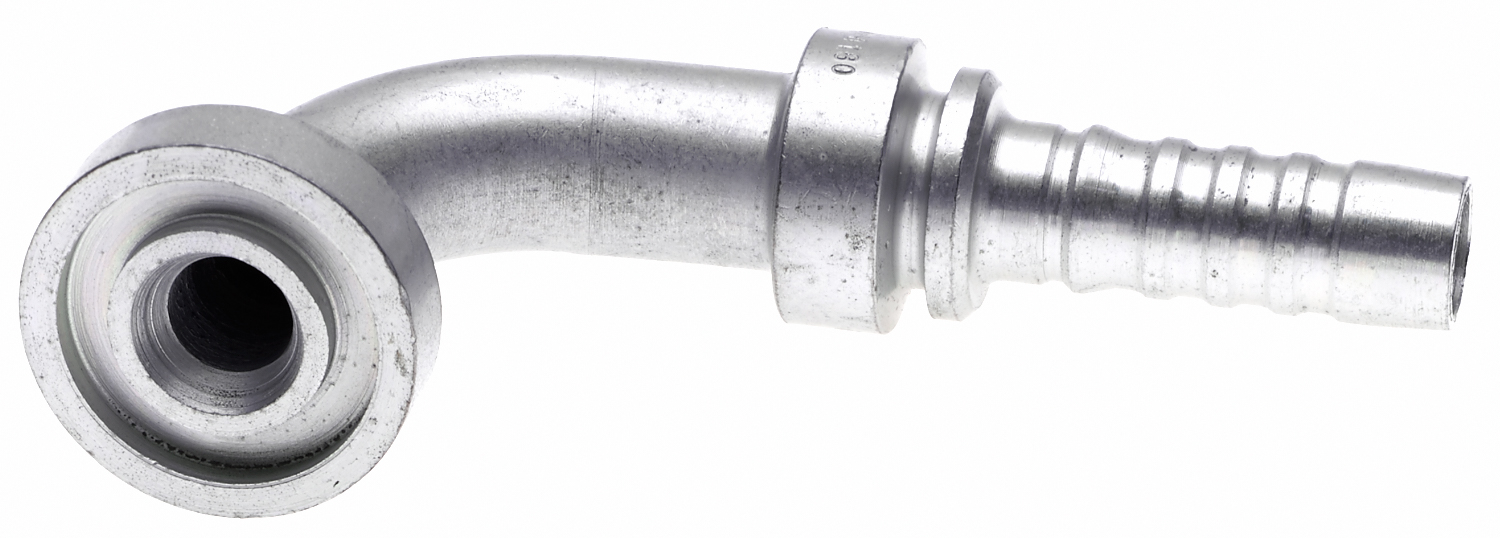

| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube |
| Cut Off (in) - C | 3.7 |
| Hose Inside Diameter (mm) | 31.8 |
| Maximum Working Pressure | 6000 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | 1.25 |
| Drop Length | 5.98 |
| Flange Thickness | .41 |
| Drop (in) - T | 5.98 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Flange Head Thickness (in) - F | .41 |
| Length | 6.5 |
| Flange Diameter (mm) - M | 54.1 |
| Inside Diameter | 31.8 |
| Flange Diameter | 2.13 |
| Flange Head Thickness (mm) - F | 10.4 |
| Length (in) | 6.5 |
| Drop (mm) - T | 151.9 |
| Maximum Working Pressure (psi) | 6000 |
| Length (MM) | 165.1 |
| Flange Diameter (in) - M | 2.13 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 93.9 |
| Industrial Description | 20GS-20FLH90-152 |
| Part Terminology | Hydraulic Coupling / Adapter |
