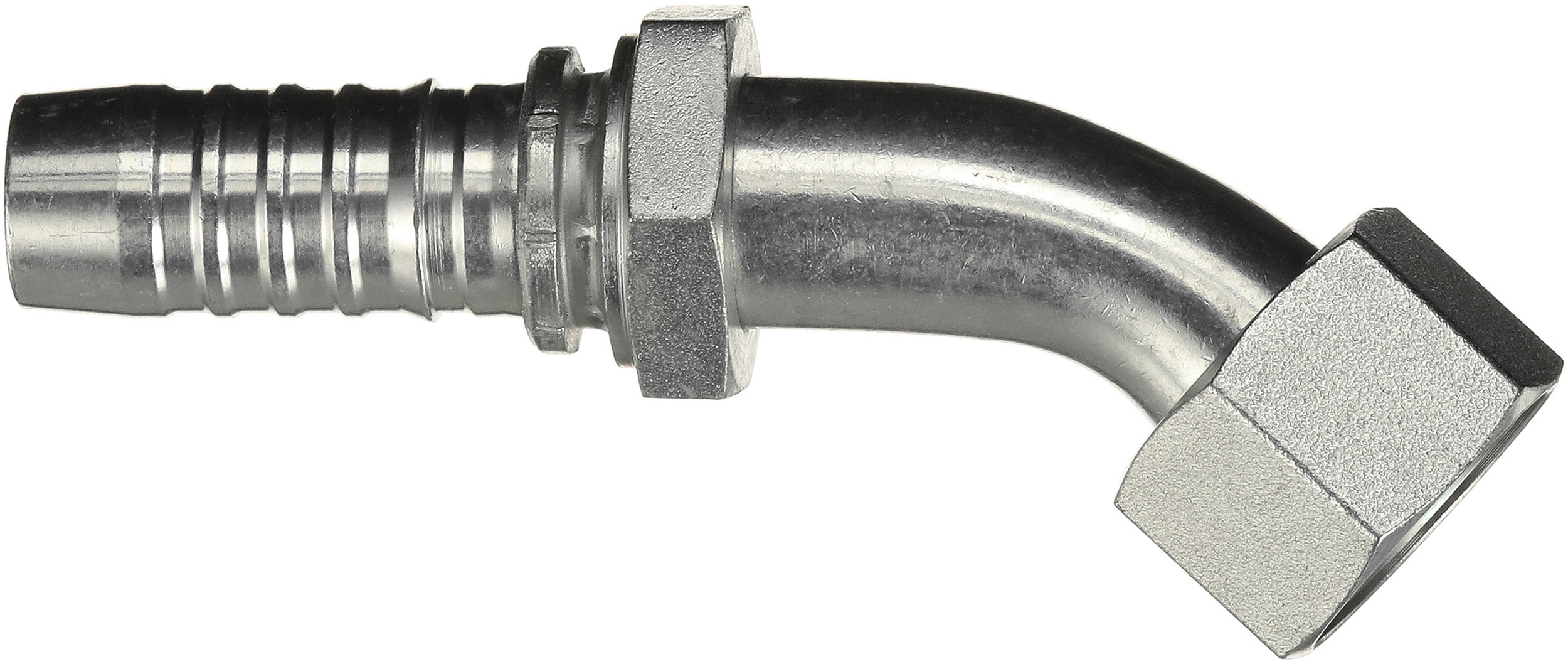

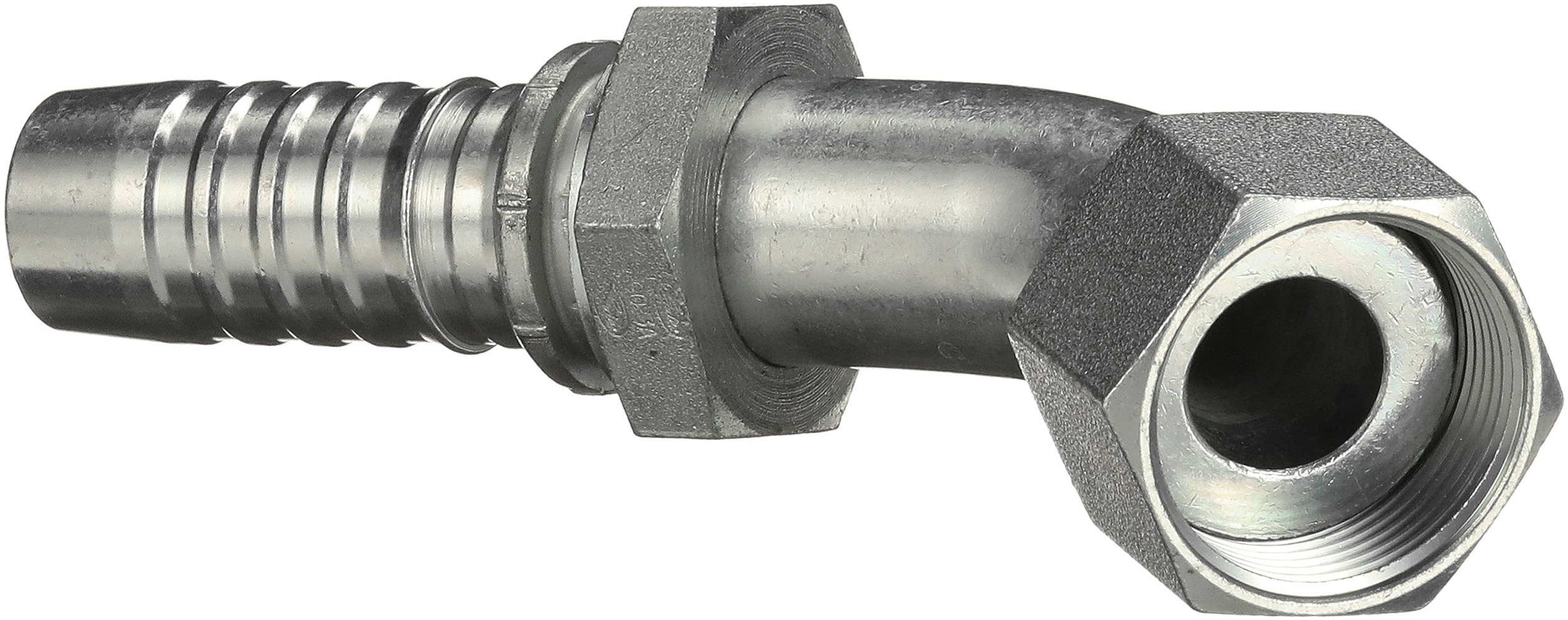

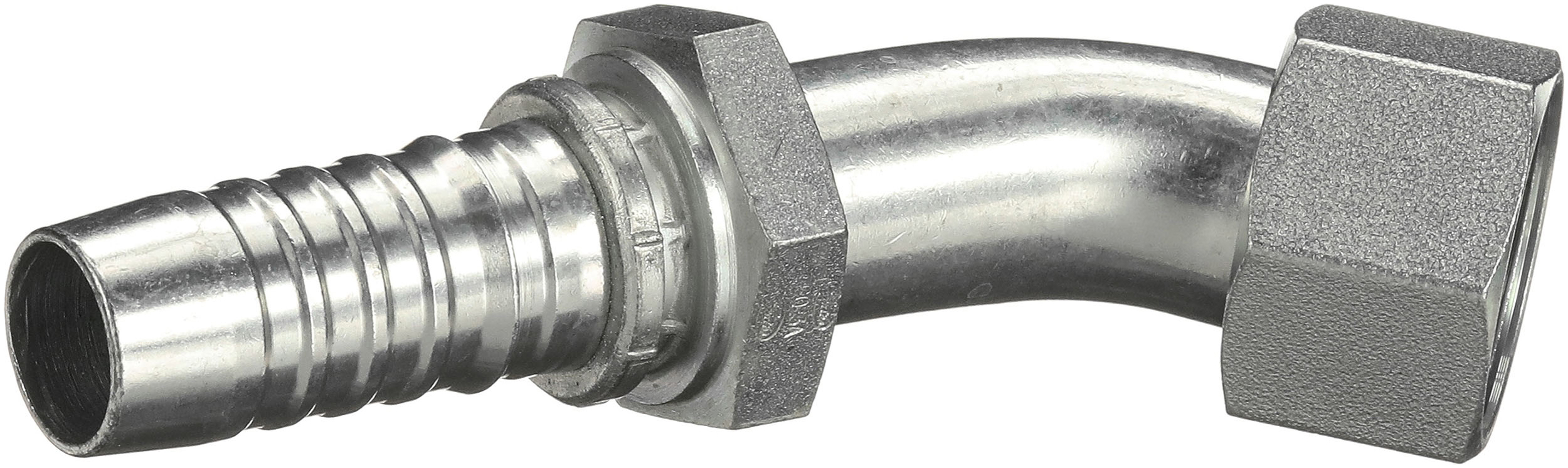

| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 45 Bent Tube |

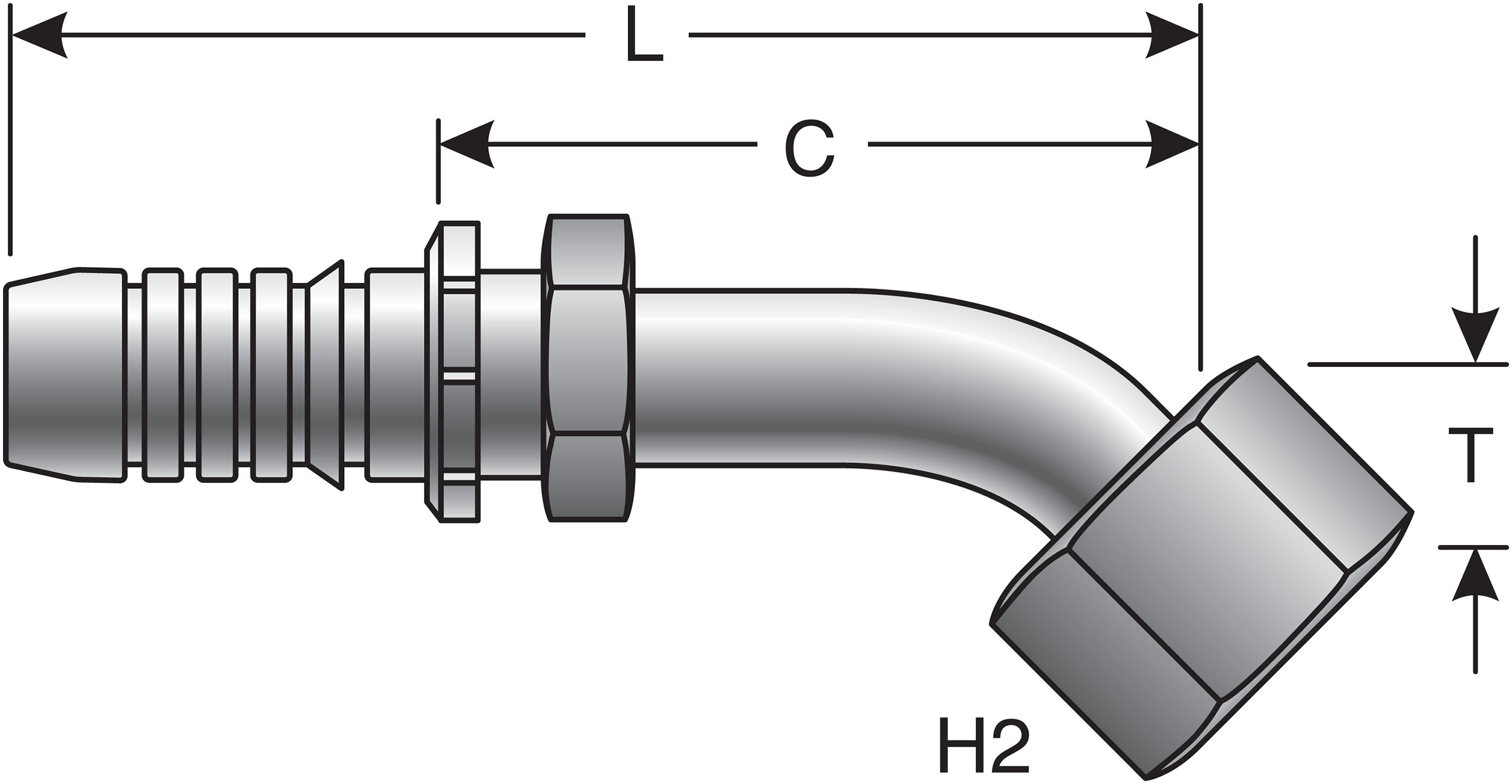

| Cut Off (in) - C | 4.29 |
| Hose Inside Diameter (mm) | 31.8 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | 1.25 |
| Drop Length | 32 |
| Thread Size | 1 11/16-12 |
| Drop (in) - T | 1.26 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex (mm) - H2 | 50 |
| Length | 7.09 |
| Inside Diameter | 31.8 |
| Length (in) | 7.09 |
| Drop (mm) - T | 32 |
| Length (MM) | 180.1 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 108.9 |
| Industrial Description | 20GS-20FFORX45-032 |

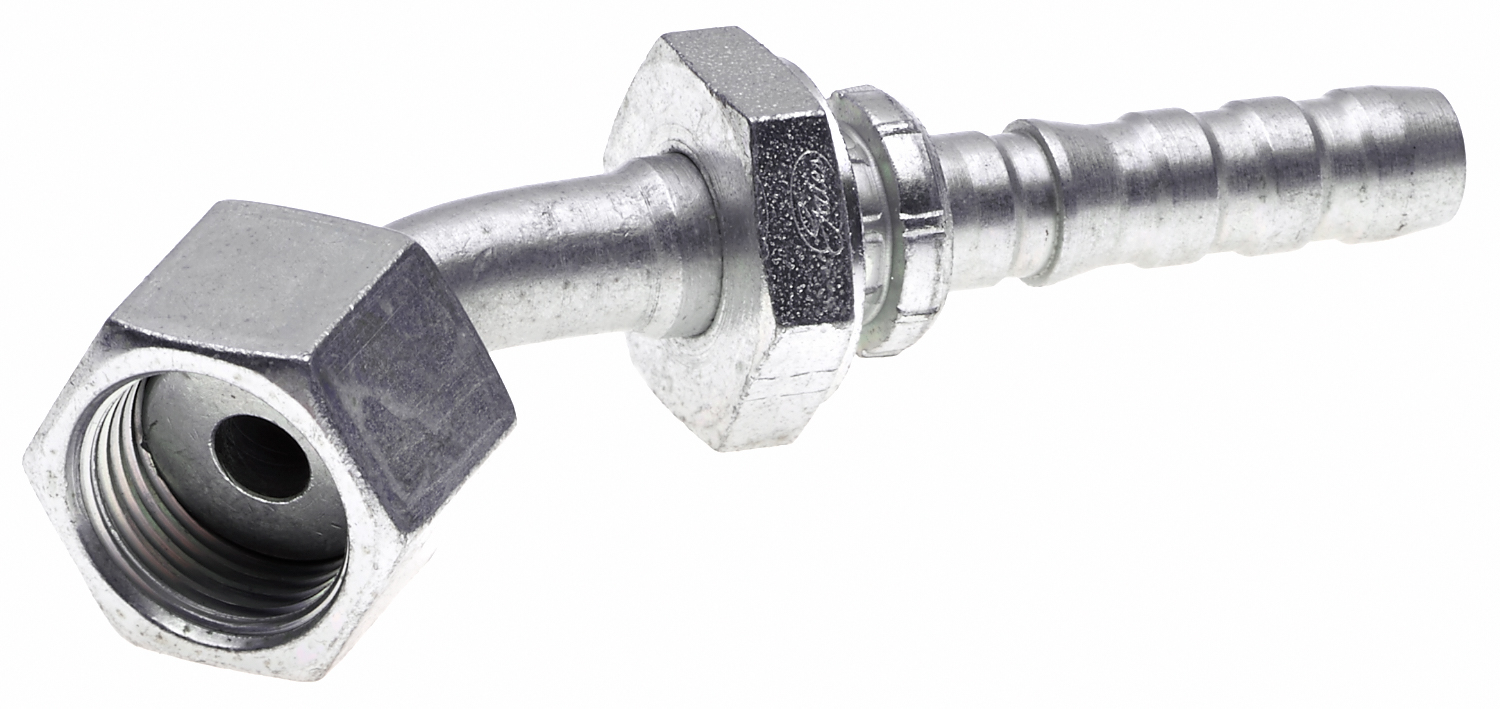

| Part Terminology | Hydraulic Coupling / Adapter |
