| Length | 93 |
| Inside Diameter | 9.5 |
| Thread Size | 13/16-16 |
| Drop Length | 15 |
| Hose Inside Diameter (in) | .375 |
| Hose Inside Diameter (mm) | 9.5 |

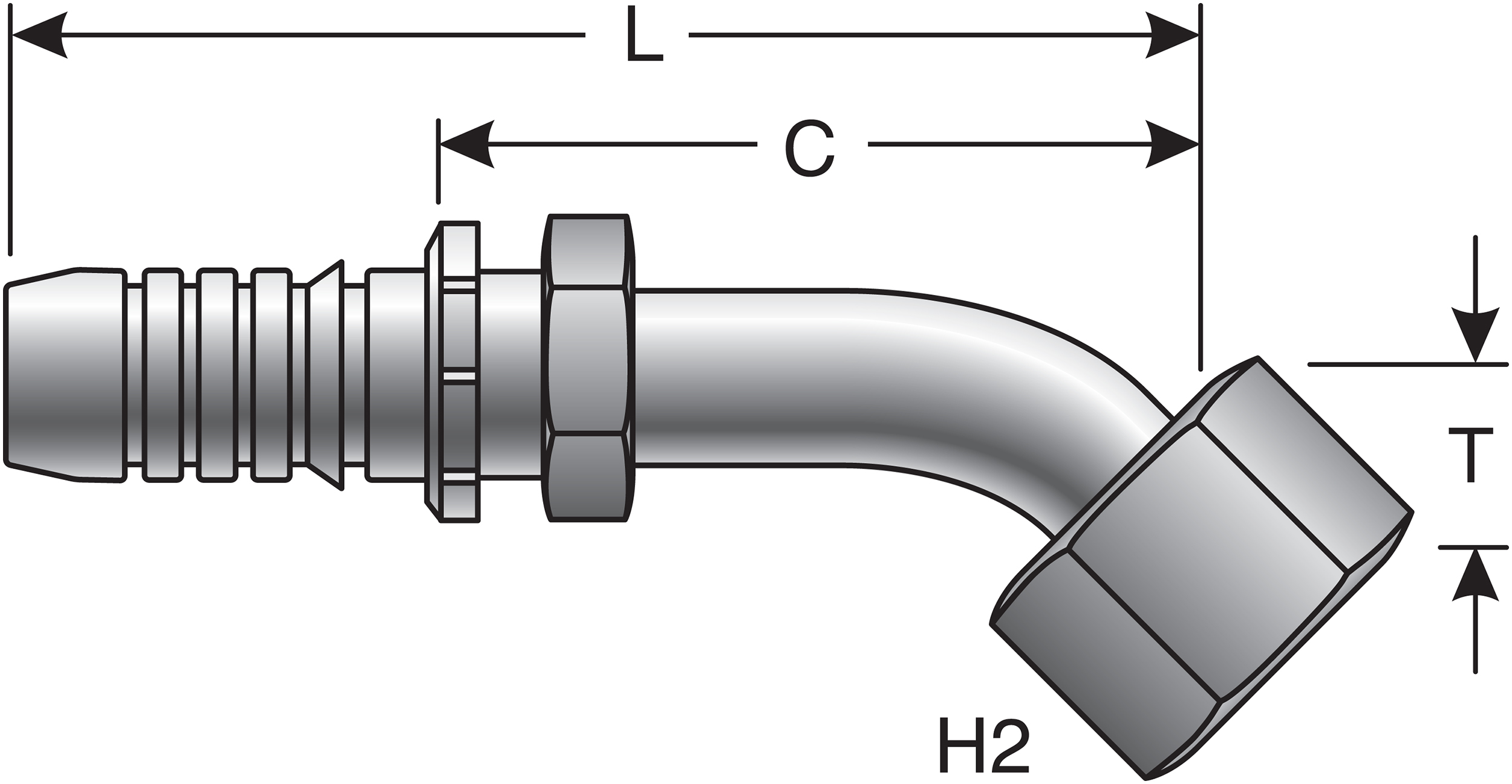

| Cut Off (mm) - C | 57.2 |
| Cut Off (in) - C | 2.25 |
| Drop (mm) - T | 15 |
| Drop (in) - T | .59 |
| Nut Hex (mm) - H2 | 24 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |

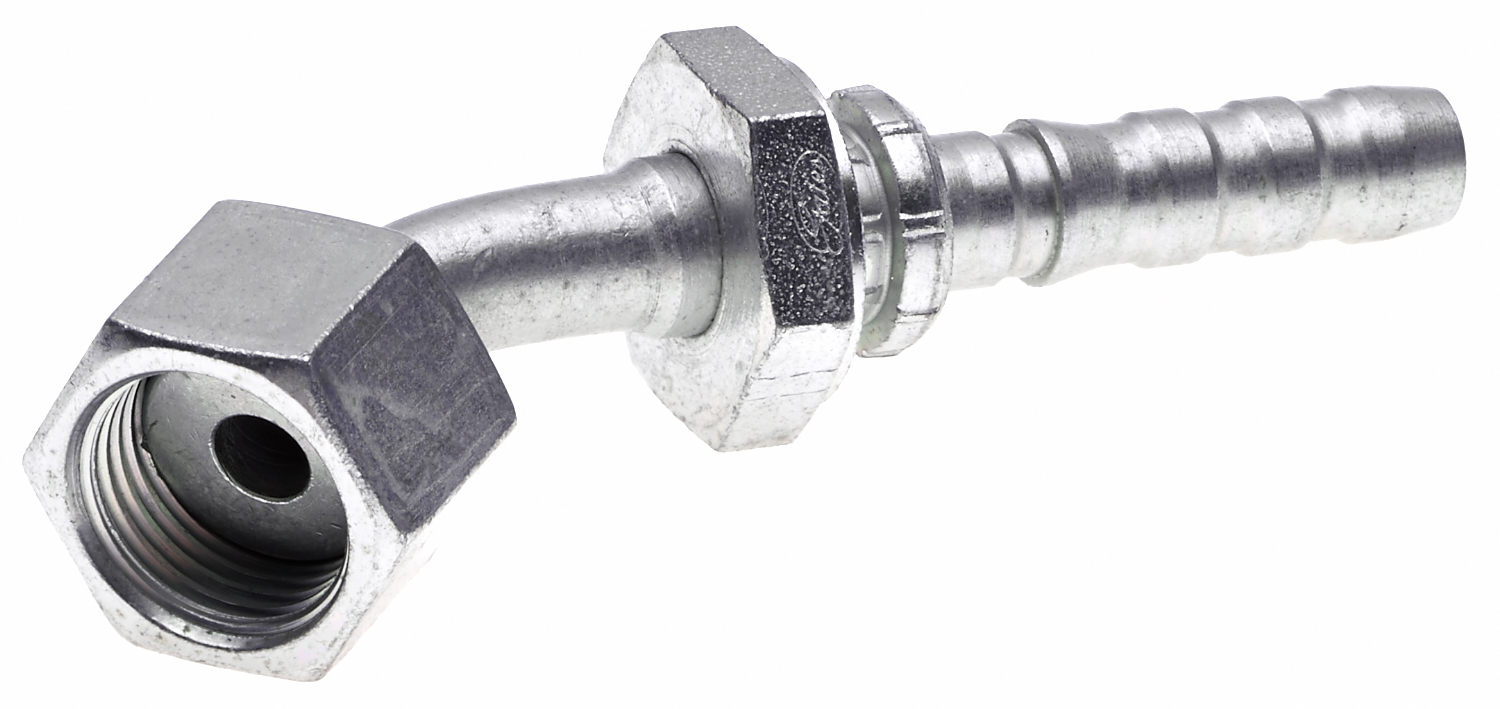

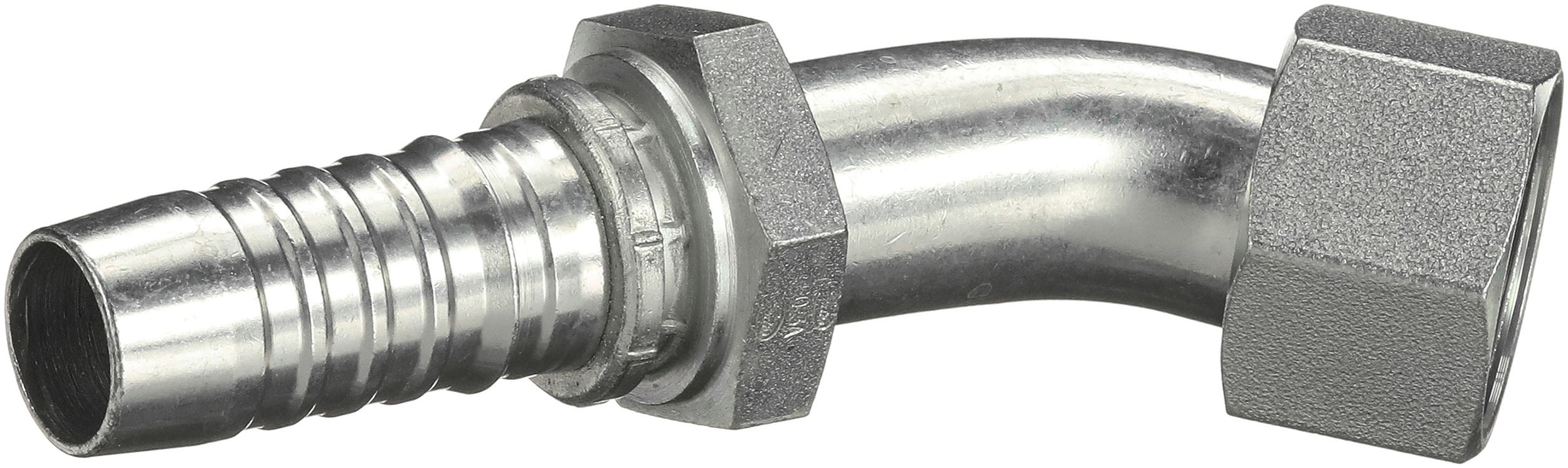

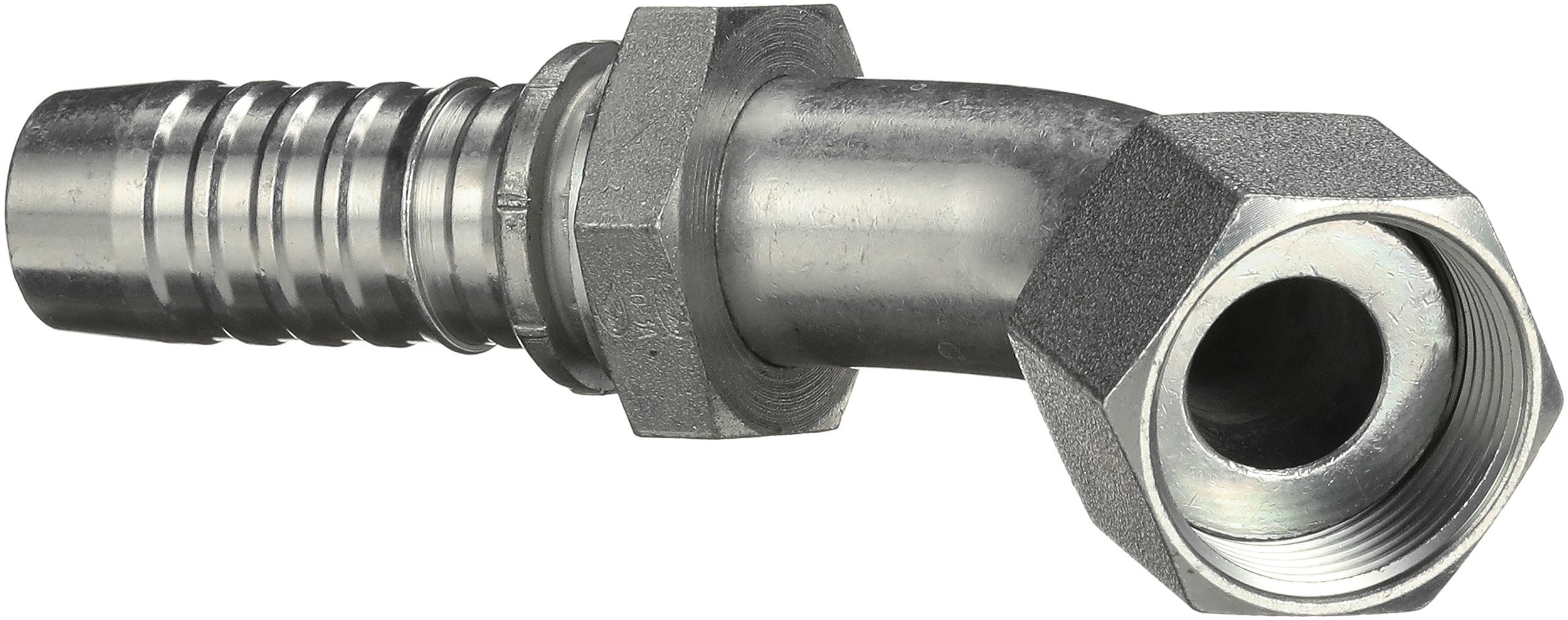

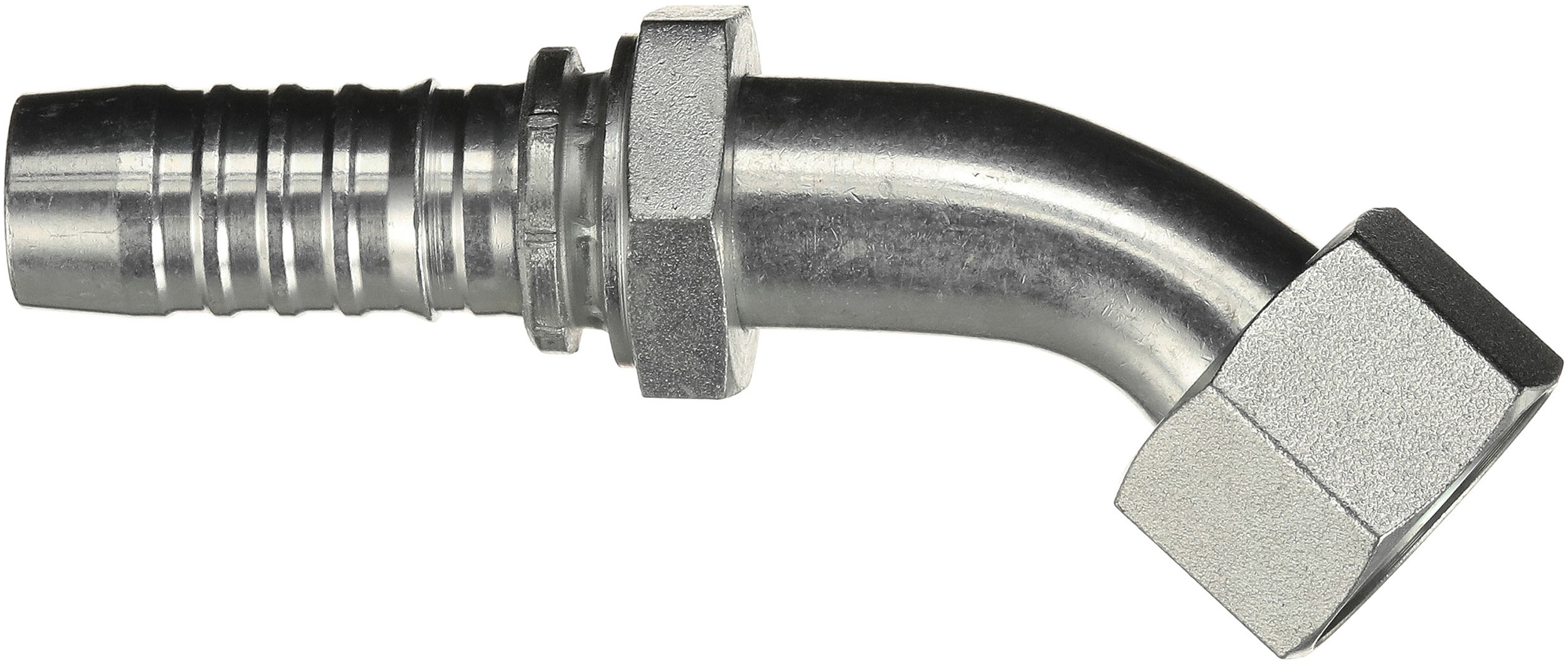

| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 6GS-8FFORX45S |
| Heavy Duty Supplier | Yes |
| Length (MM) | 93 |
| Length (in) | 3.66 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Part Terminology | Hydraulic Coupling / Adapter |
